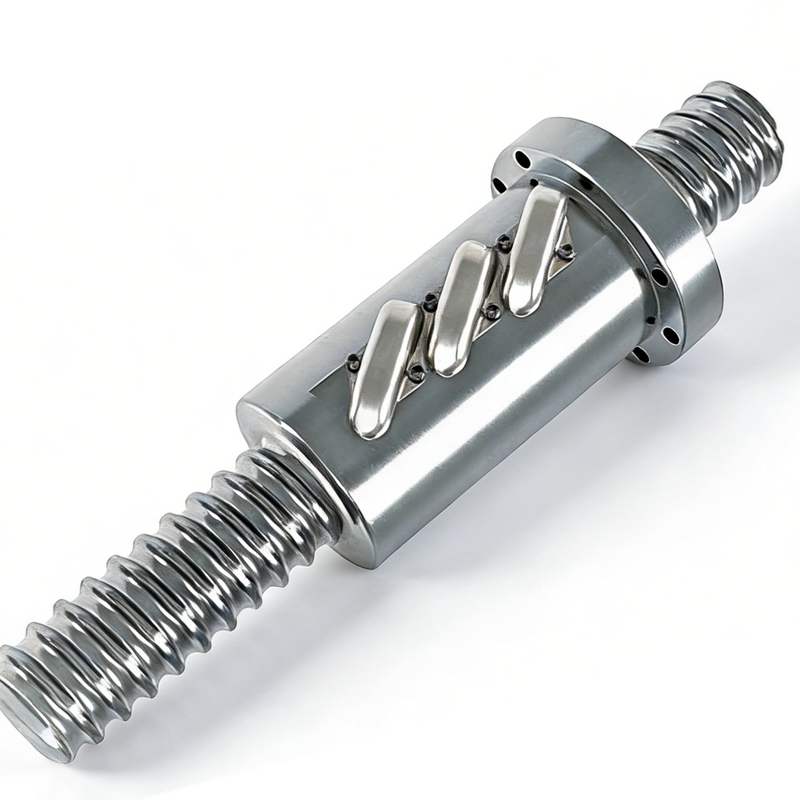

Single Side CTF High Load Drive Ball Screw

The Single Side CTF High Load Drive Ball Screw is a heavy-duty, high-stability motion transmission component optimized for unilateral drive operation and high-load working conditions. As an advanced upgraded iteration of traditional slide ball screws, it adopts a reliable rolling friction transmission structure to realize precise mutual conversion between rotary motion and linear motion. Featuring exclusive single-side drive design and excellent load-bearing performance, this CTF series ball screw delivers low friction loss, high transmission efficiency and durable operational stability. Manufactured with mature heat treatment and imported high-precision processing technology, it serves as a cost-effective and high-reliability core component for heavy-load industrial equipment and precision mechanical systems.

Quantity:
Availability:





Inquire Add to Basket

Model:
CTF series
Brand:
NANJING GONGYI

Single Side CTF High Load Drive Ball Screw ball screw High Load Drive Ball Screw Single Side Ball Screw

Product Description

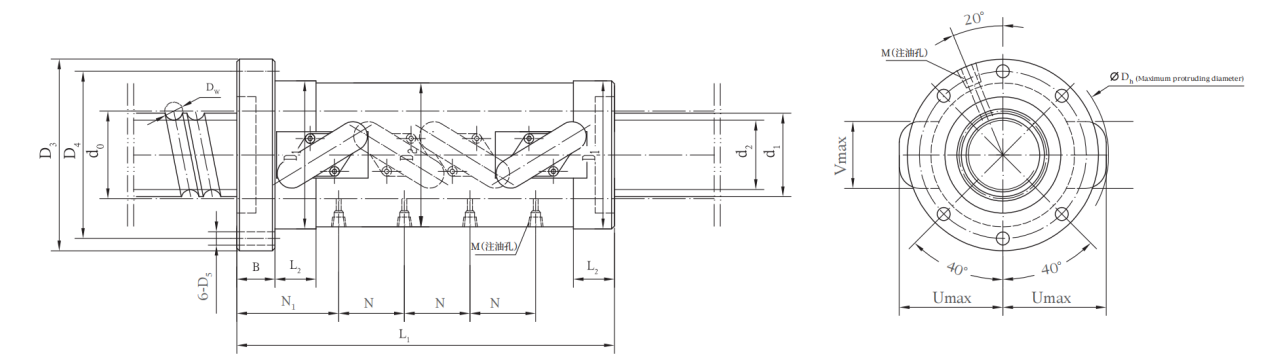

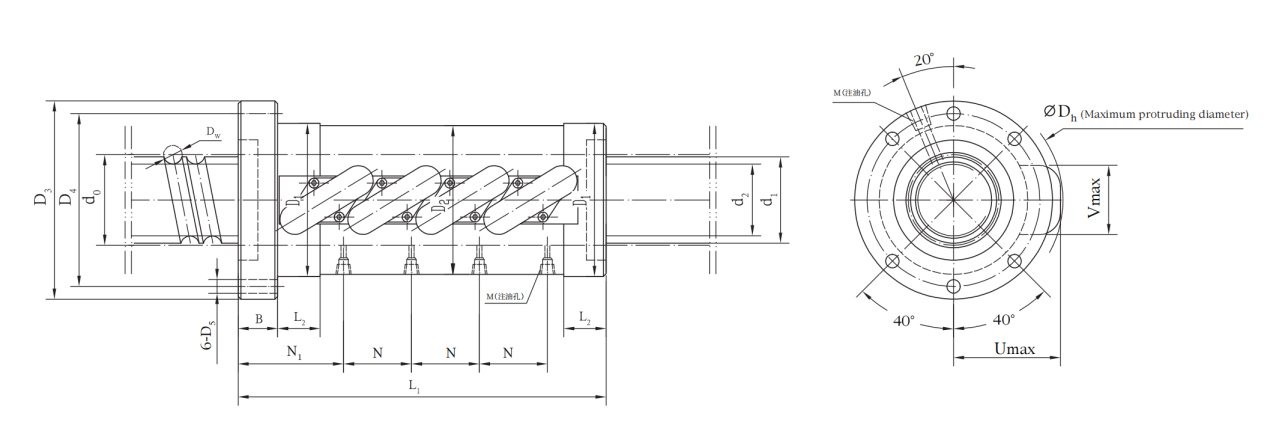

Single Side: CTF High Load Drive Ball Screw

Product Core Advantages

The Single Side CTF High Load Drive Ball Screw is a technologically optimized heavy-duty transmission product developed on the basis of traditional ball screw structures, representing a further innovative extension of slide ball screw technology. Its technological upgrade value is equivalent to the classic industrial revolution of bearing friction mode changing from sliding friction to rolling friction, fundamentally solving the defects of high friction, low efficiency and poor durability of traditional sliding transmission structures. Composed of precision screw shafts, high-strength nuts and high-precision circulating steel balls, this ball screw adopts a professional single-side CTF drive structure, which is specially optimized for unilateral force-bearing and high-load driving scenarios. The optimized rolling friction structure greatly reduces mechanical friction resistance during operation, effectively improving transmission efficiency, motion accuracy and operational smoothness while maintaining super strong load-bearing capacity.

Different from ordinary symmetrical drive ball screws, the Single Side CTF High Load Drive Ball Screw features a unique single-side drive structural design, which is more targeted for equipment with unilateral stress and one-way linear drive requirements. The overall structure is reasonably arranged, with stable circulating ball operation, excellent rigidity and strong anti-deformation ability under heavy loads. It effectively avoids precision attenuation and mechanical jitter caused by long-term heavy-load operation, ensuring long-term consistent transmission accuracy and structural stability. With superior comprehensive mechanical properties, this product has become an indispensable core component for modern heavy-load industrial transmission systems.

Wide Application Scenarios

Thanks to its unique single-side drive structure, outstanding high-load resistance and stable precision transmission performance, the Single Side CTF High Load Drive Ball Screw is widely applicable to various heavy-duty industrial equipment and precision instruments requiring unilateral driving and high-load linear motion. It is perfectly suitable for heavy-load CNC machine tools, industrial automation heavy-duty conveying equipment, large precision processing machinery, mechanical transmission systems with limited installation structure and unilateral force-bearing characteristics, and various industrial precision instruments. It can stably adapt to long-term high-load, high-frequency operating environments, meeting the high-efficiency and high-precision operation requirements of modern industrial manufacturing.

Professional R&D and Technical Strength

We possess decades of professional ball screw R&D and manufacturing experience, having independently developed China’s first ball screw in 1964, always maintaining a leading technical level in China’s ball screw industry. Aiming at the development trend of high-end CNC equipment and heavy-load industrial machinery, we have established a product development orientation of large size, heavy load, high speed and high precision. The Single Side CTF High Load Drive Ball Screw is one of our core independent innovative products, which, together with our high-speed precision and super-heavy-load ball screw series, forms a complete product system. All self-developed products are backed by 14 independent intellectual property patents, realizing full independent control of core design and manufacturing technologies.

Advanced Processing Technology & Efficient Delivery

In terms of processing technology, we take the lead in applying professional induction hardening heat treatment technology for ball screws, which significantly improves the surface hardness, wear resistance and overall structural stability of the Single Side CTF High Load Drive Ball Screw. In order to break through the limitations of traditional processes, we have successfully introduced world-class German high-speed hard whirling technology, completely upgrading the decades-old traditional production process. The technological upgrade greatly improves product processing precision, production efficiency and finished product quality consistency. Matched with fixed-length pre-processing technology, we effectively shorten the product lead time to 15 days, realizing fast delivery and high-quality supply for global bulk and customized orders.

Complete Specifications & Strong Production Capacity

Our factory has super strong full-spec production capacity to support the customized and mass production of Single Side CTF High Load Drive Ball Screws. The product parameter range covers a minimum diameter of 6mm, a minimum lead of 1mm, a maximum diameter of 245mm, and a maximum single processing length of 10m, with a maximum load capacity exceeding 125 tons. We can stably supply multiple precision grades including 1.5m P0, 2m P1, 4m P2, 5m P3 and 10m P5 grades. With complete specifications, reliable heavy-load performance and strict precision control, we are a professional all-specification ball screw manufacturer, providing reliable unilateral high-load transmission solutions for global industrial customers.

Note:

1) Kc is the theoretical calculated value when the preload Fp is 0.1Ca and the axial load F is 0.3Ca;

2) When the axial load F is not equal to 0.3Ca,

Kc is the stiffness value in the table;

Code and spec.	Nominal diad₀	Basic lead P_ho	Outer dia.of ball screw d₁	Balldia. Dw	Bottom dia.of ball screw d₂	Numberof circles n	Basic rated load(kN)		Nut mounting connection dimensions															Code and spec.
Code and spec.	Nominal diad₀	Basic lead P_ho	Outer dia.of ball screw d₁	Balldia. Dw	Bottom dia.of ball screw d₂	Numberof circles n	Dynamic load CakN	Static load CakN	Stiffness K.Nμm	D₁ (g6)	D2()	D	D₃	B	D₄	D₅	U	V	L₁	L2	N₁	N	M	Code and spec.
CTF5014-2.5×2	50	14	50	9.525	42	2.5×2	172.6	448.9	3415	80	80	114	114	28	97	9	55	46	146	30	69	42	M6	CTF5014-2.5×2
CTF5014-2.5×3	50	14	50	9.525	42	2.5×3	244.6	673.4	5028	80	80	114	114	28	97	9	55	46	188	30	69	42	M6	CTF5014-2.5×3
CTF5016-2.5×2	50	16	50	12.7	39	2.5×2	249.5	575.7	3479	95	95	130	129	28	112	9	65	50	164	30	77.5	48	Rc1/8	CTF5016-2.5×2
CTF5016-2.5×3	50	16	50	12.7	39	2.5×3	353.5	863.6	5122	95	95	130	129	28	112	9	65	50	212	30	77.5	48	Rc1/8	CTF5016-2.5×3

CTF6316-2.5×2	63	16	63	12.7	52	2.5×2	283.1	748.4	4262	105	105	145	139	28	122	9	72	50	164	30	77.5	48	Rc1/8	CTF6316-2.5×2
CTF6316-2.5×3	63	16	63	12.7	52	2.5×3	401.3	1122.6	6276	105	105	145	139	28	122	9	72	50	212	30	77.5	48	Rc1/8	CTF6316-2.5×3
CTF6316-2.5×4	63	16	63	12.7	52	2.5×4	513.9	1496.8	8259	105	105	145	139	28	122	9	72	50	260	30	77.5	48	Rc1/8	CTF6316-2.5×4
CTF6316-3.5×2	63	16	63	12.7	52	3.5×2	378.1	1047.8	5876	105	105	145	139	28	122	9	72	50	199	30	77.5	64	Rc1/8	CTF6316-3.5×2
CTF6316-3.5×3	63	16	63	12.7	52	3.5×3	535.9	1571.6	8652	105	105	145	139	28	122	9	72	50	263	30	77.5	64	Rc1/8	CTF6316-3.5×3
CTF6320-2.5×2	63	20	63	15.875	49	2.5×2	382.2	936.1	4432	117	117	160	157	32	137	11	78	64	199	30	90	80	Rc1/8	CTF6320-2.5×2
CTF6320-2.5×3	63	20	63	15.875	49	2.5×3	541.7	1404.2	6525	117	117	160	157	32	137	11	78	64	259	30	90	80	Rc1/8	CTF6320-2.5×3

CTF8016-2.5×2	80	16	80	12.7	69	2.5×2	312.5	947	5074	120	120	160	154	32	137	9	78	62	170	40	81.5	48	Rc1/8	CTF8016-2.5×2
CTF8016-2.5×3	80	16	80	12.7	69	2.5×3	442.9	1420.5	7473	120	120	160	154	32	137	9	78	62	218	40	81.5	48	Rc1/8	CTF8016-2.5×3
CTF8016-2.5×4	80	16	80	12.7	69	2.5×4	567.3	1894	9835	120	120	160	154	32	137	9	78	62	266	40	81.5	48	Rc1/8	CTF8016-2.5×4
CTF8016-3.5×2	80	16	80	12.7	69	3.5×2	417.4	1325.8	6997	120	120	160	154	32	137	9	78	62	201	40	81.5	64	Rc1/8	CTF8016-3.5×2
CTF8016-3.5×3	80	16	80	12.7	69	3.5×3	591.6	1988.7	10304	120	120	160	154	32	137	9	78	62	265	40	81.5	64	Rc1/8	CTF8016-3.5×3
CTF8016-3.5×4	80	16	80	12.7	69	3.5×4	757.6	2651.7	13561	120	120	160	154	32	137	9	78	62	329	40	81.5	64	Rc1/8	CTF8016-3.5×4
CTF8020-3.5×2	80	20	80	15.875	66	3.5×2	563.4	1638.6	7226	130	130	180	170	32	150	11	88	64	239	40	90	80	Rc1/8	CTF8020-3.5×2
CTF8020-3.5×3	80	20	80	15.875	66	3.5×3	798.4	2457.9	10641	130	130	180	170	32	150	11	88	64	319	40	90	80	Rc1/8	CTF8020-3.5×3

CTF10016-3.5×2	100	16	100	12.7	89	3.5×2	459.2	1672	8328	145	145	185	185	32	165	11	90	68	201	40	81.5	64	Rc1/8	CTF10016-3.5×2
CTF10016-3.5×3	100	16	100	12.7	89	3.5×3	650.7	2508	12266	145	145	185	185	32	165	11	90	68	265	40	81.5	64	Rc1/8	CTF10016-3.5×3
CTF10016-3.5×4	100	16	100	12.7	89	3.5×4	833.4	3344	16145	145	145	185	185	32	165	11	90	68	329	40	81.5	64	Rc1/8	CTF10016-3.5×4

Double Side: CTF Type All-Electric Injection Molding Machine with High Load Drive Ball Screw

Note:

1) Kc is the theoretical calculated value when the preload Fp is 0.1Ca and the axial load F is 0.3Ca;

2) When the axial load F is not equal to 0.3Ca,

Kc is the stiffness value in the table;

Code andspec.	Nominal dia.d	Basic lead Pm	Outer dia.of bal screw d₁	Ball dia. D	Bottom dia.of ball screw d₂	Number of circles n	Basic rated load(kN)		Stiffness Nut mounting connection dimensions														Code and spec.
Code andspec.	Nominal dia.d	Basic lead Pm	Outer dia.of bal screw d₁	Ball dia. D	Bottom dia.of ball screw d₂	Number of circles n	Dynamic load Ca kN	Static load Coa kN	Rigidity KCN/μm	D₁ (g6)	D2()	D.	D₃	B	D₄	D₅	U	V	L	L₂	N₁	N	M
CTF5014-2.5×3	50	14	50	9.525	42	2.5×3	244.6	673.4	5028	80	80	114	114	28	97	9	55	46	202	30	69	42	M6	CTF5014-2.5×3
CTF5016-2.5×3	50	16	50	12.7	39	2.5×3	353.5	863.6	5122	95	95	130	129	28	112	9	65	50	228	30	77.5	48	Rc1/8	CTF5016-2.5×3

CTF6316-2.5×3	63	16	63	12.7	52	2.5×3	401.3	1122.6	6276	105	105	145	139	28	122	9	72	50	228	30	77.5	48	Rc1/8	CTF6316-2.5×3
CTF6316-2.5×4	63	16	63	12.7	52	2.5×4	513.9	1496.8	8259	105	105	145	139	28	122	9	72	50	276	30	77.5	48	Rc1/8	CTF6316-2.5×4
CTF6316-3.5×3	63	16	63	12.7	52	3.5×3	535.9	1571.6	8652	105	105	145	139	28	122	9	72	50	279	30	77.5	64	Rc18	CTF6316-3.5×3
CTF6320-2.5×3	63	20	63	15.875	49	2.5×3	541.7	14042	6525	117	117	160	157	32	137	11	78	64	279	30	90	80	Rc1/8	CTF6320-2.5×3

CTF8016-2.5×3	80	16	80	12.7	69	2.5×3	442.9	1420.5	7473	120	120	160	154	32	137	9	78	62	234	40	81.5	48	Bc1/8	CTF8016-2.5×3
CTF8016-2.5×4	80	16	80	12.7	69	2.5×4	567.3	1894	9835	120	120	160	154	32	137	9	78	62	282	40	81.5	48	Rc1/8	CTF8016-2.5×4
CTF8016-3.5×3	80	16	80	12.7	69	3.5×3	591.6	1988.7	10304	120	120	160	154	32	137	9	78	62	281	40	81.5	64	Rc1/8	CTF8016-3.5×3
CTF8016-3.5×4	80	16	80	12.7	69	3.5×4	757.6	2651.7	13561	120	120	160	154	32	137	9	78	62	345	40	81.5	64	Rc1/8	CTF8016-3.5×4
CTF8020-3.5×3	80	20	80	15.875	66	3.5×3	798.4	2457.9	10641	130	130	180	170	32	150	11	88	64	339	40	90	80	Rc1/8	CTF8020-3.5×3

CTF10016-3.5×3	100	16	100	12.7	89	3.5×3	650.7	2508	12266	145	145	185	185	32	165	11	90	68	281	40	81.5	64	Rc1/8	CTF10016-3.5×3
CTF10016-3.5×4	100	16	100	12.7	89	3.5×4	833.4	3344	16145	145	145	185	185	32	165	11	90	68	345	40	81.5	64	Rc1/8	CTF10016-3.5×4
