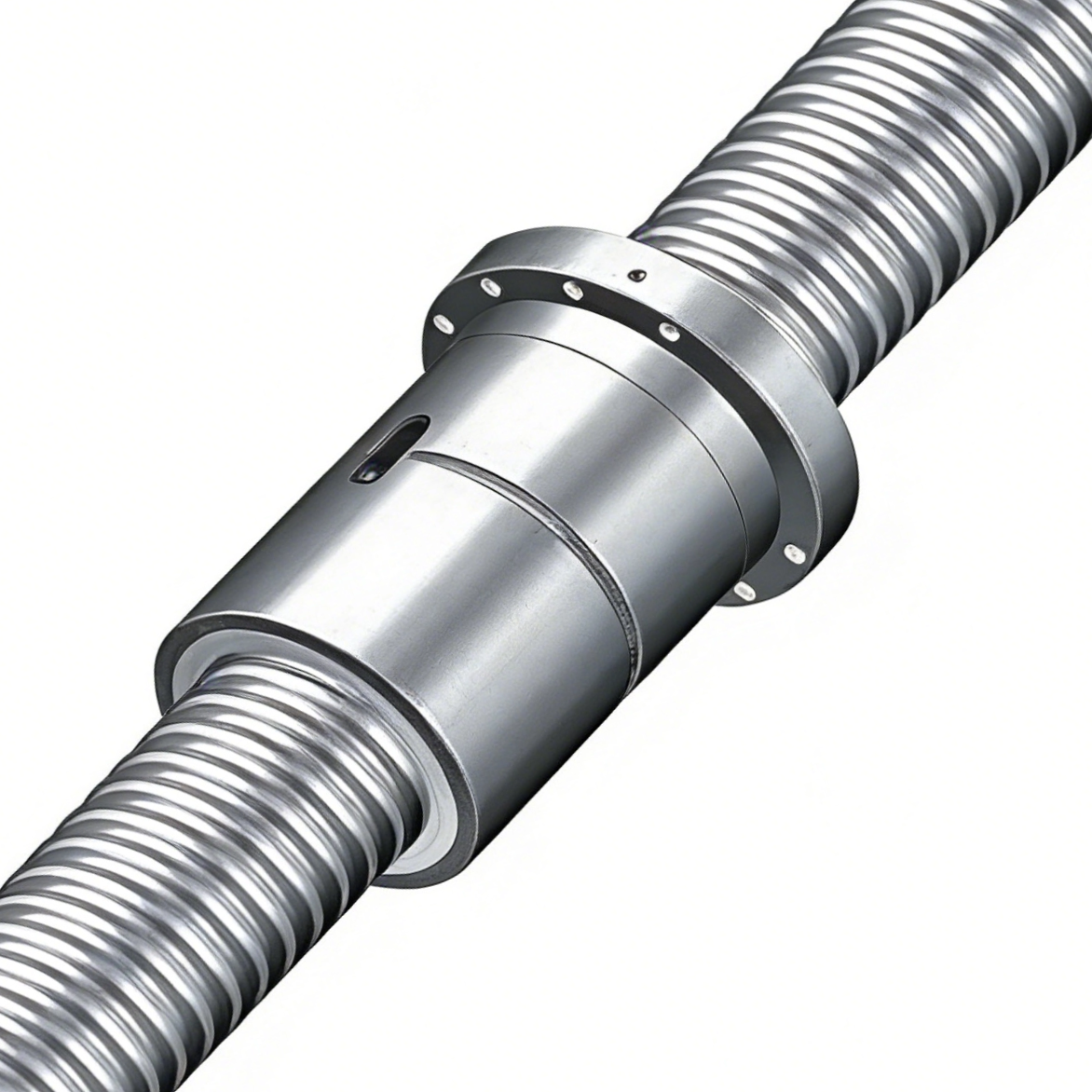

JFZD Heavy Load Ball Screw

Length and heavy load has always been an important problem for manufacturing large heavy duty ball screw to overcome, this series of products to
overcome the design, heat treatment, straightening, raceway forming processing and dynamic detection technology, in the structural design of the
product with a multi-path large-diameter 80 ball circulation loop design structure, the maximum rated dynamic load of the product 126 tons, the maxi mum rated static load of 595 tons. Nanjing Technical Brand is gold Service is heart
Equipment Manufacturing Co., Ltd. has put into use 10 meters large lathe, 10 meters hard rotary milling machine, 10 meters large grinding machine,
10 meters medium frequency quenching machine, 10 meters large straightening machine, 10 meters laser screw (pair) travel error measuring in strument and a series of equipment, taking the lead in establishing the first single 10 meters ball screw production line in China. Among them, the
10-meter laser ball screw travel error measuring instrument has passed the calibration and put into use by Jiangsu Institute of Metrology Science,
which solves the key technology in the dynamic detection process of a single 10-meter ball lead screw p

Quantity:
Availability:





Inquire Add to Basket

Model:
JFZD
Brand:
yi gong

Product Description

JFZD Heavy Load Ball Screw

Notes:

1.Kc is theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.

2.When axial load F is not equal to 0.3Ca,

In formula:

K is rigidity value shown in Table.

3.This type ball screw can be used in high temperature working environment

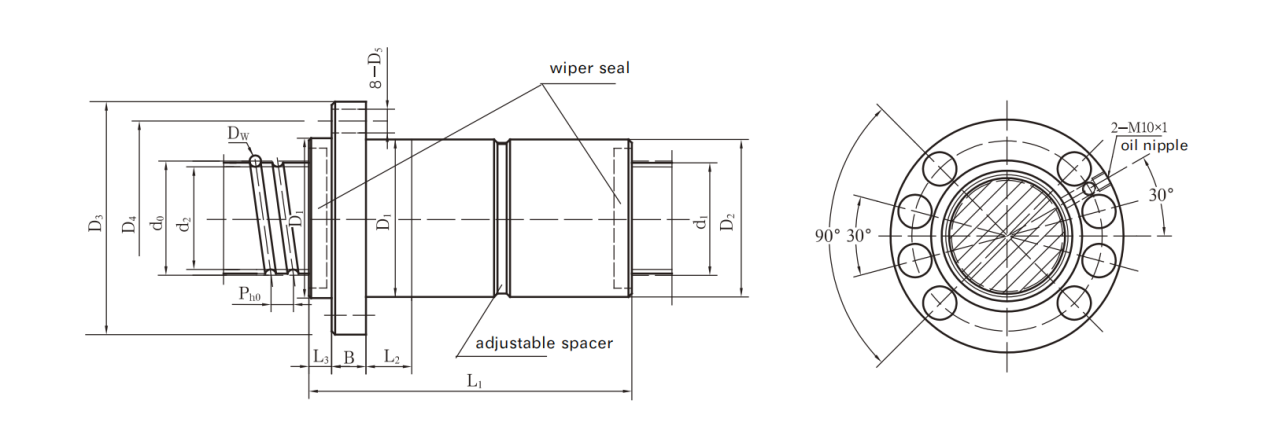

Code and spec.	Nominal diad.	Basiclead P_ho	Outer dia of ball screw d₁	Ball dia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Basic rated load		Mounting &connecting dimension									Code and spec.
Code and spec.	Nominal diad.	Basiclead P_ho	Outer dia of ball screw d₁	Ball dia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Dynamic load CKN	Static load CaaKN	Rigidity Kc N/μm	D₁ (g6)	D2()	L₂	D₃	B	D₅	D₄	L₁	Code and spec.
JFZD8020-8	80	20	80	12.7	70.9	8	401.0	1212.1	6572	125	125	25	170	32	13.5	150	412	JFZD 8020-8
JFZD8025-5	80	25	80	12.7	70.9	5	267.1	756.3	4199	125	125	25	170	32	13.5	150	348	JFZD 8025-5
JFZD8025-8	80	25	80	12.7	70.9	8	400.2	1210.1	6575	125	125	25	170	32	13.5	150	498	JFZD 8025-8
JFZD8032-5	80	32	80	12.7	70.9	5	266.1	754.1	4189	125	125	25	170	36	13.5	150	425	JFZD 8032-5
JFZD8032-8	80	32	80	12.7	70.9	8	398.7	1206.6	6559	125	125	25	170	36	13.5	150	617	JFZD 8032-8

JFZD10020-5	100	20	97	12.7	87.9	5	297.0	954.3	5031	150	150	25	207	32	17.5	180	300	JFZD 10020-5
JFZD10020-8	100	20	97	12.7	87.9	8	444.9	1526.9	7879	150	150	25	207	32	17.5	180	420	JFZD 10020-8
JFZD10025-5	100	25	97	15.875	85.7	5	402.7	1182.0	5176	150	150	25	207	32	17.5	180	371	JFZD 10025-5
JFZD10025-8	100	25	97	15.875	85.7	8	603.3	1891.2	8106	150	150	25	207	32	17.5	180	521	JFZD 10025-8
JFZD10032-5	100	32	97	15.875	85.7	5	401.7	1179.7	5179	150	150	25	207	36	17.5	180	446	JFZD 10032-5
JFZD10032-8	100	32	97	15.875	85.7	8	601.8	1887.5	8109	150	150	25	207	36	17.5	180	638	JFZD 10032-8
JFZD10040-4	100	40	97	15.875	85.7	4	330.3	941.1	4175	150	150	40	207	36	17.5	180	436	JFZD 10040-4

JFZD12520-5	125	20	123.5	12.7	114.4	5	341.2	1298.3	6349	170	170	25	244	36	22	210	298	JFZD 12520-5
JFZD12520-8	125	20	123.5	12.7	114.4	8	511.2	2077.3	9946	170	170	25	244	36	22	210	418	JFZD 12520-8
JFZD12525-5	125	25	123.5	18.256	110.6	5	527.5	1669.3	6168	190	190	25	258	36	22	224	374	JFZD 12525-5
JFZD12525-8	125	25	123.5	18.256	110.6	8	790.2	2670.9	9660	190	190	25	258	36	22	224	524	JFZD 12525-8
JFZD12532-5	125	32	123.5	20.638	109.2	5	593.2	1746.6	5892	190	190	25	258	36	22	224	476	JFZD 12532-5
JFZD12532-8	125	32	123.5	20.638	109.2	8	888.7	2794.6	9226	190	190	25	258	36	22	224	668	JFZD 12532-8
JFZD12540-4	125	40	123.5	20.638	109.2	4	488.5	1394.9	4763	190	190	40	258	40	22	224	470	JFZD 12540-4

JFZD16020-5	160	20	156.5	12.7	147.4	5	380.6	1692.8	7803	220	220	25	294	40	22	260	303	JFZD 16020-5
JFZD16020-8	160	20	156.5	12.7	147.4	8	570.2	2708.5	12225	220	220	25	294	40	22	260	423	JFZD 16020-8
JFZD16025-5	160	25	156.5	18.256	143.6	5	591.2	2178.5	7585	240	240	40	314	40	22	280	380	JFZD 16025-5
JFZD16025-8	160	25	156.5	18.256	143.6	8	885.7	3485.6	11879	240	240	40	314	40	22	280	530	JFZD 16025-8
JFZD16032-5	160	32	156.5	20.638	142.2	5	688.7	2393.8	7573	240	240	40	314	40	22	280	433	JFZD 16032-5
JFZD16032-8	160	32	156.5	20.638	142.2	8	1031.7	3830.0	11860	240	240	40	314	40	22	280	625	JFZD 16032-8
JFZD16040-4	160	40	156.5	25.4	138.6	4	740.3	2270.5	6130	240	240	40	314	40	22	280	451	JFZD 16040-4

JFZD20025-5	200	25	196.5	18.256	183.6	5	669.6	2889.9	9398	280	280	40	349	50	22	315	358	JFZD 20025-5
JFZD20025-8	200	25	196.5	18.256	183.6	8	1003.2	4623.9	14724	280	280	40	349	50	22	315	508	JFZD 20025-8
JFZD20032-5	200	32	196.5	20.638	182.2	5	780.8	3172.9	9402	280	280	40	349	50	22	315	434	JFZD 20032-5
JFZD20032-8	200	32	196.5	20.638	182.2	8	1169.7	5076.6	14728	280	280	40	349	50	22	315	626	JFZD 20032-8
JFZD20040-4	200	40	196.5	25.4	178.6	4	850.6	3055.3	7760	300	300	40	369	50	22	335	452	JFZD 20040-4
