Our ARC Guide (Arc Guide) series is a premium line of curved linear motion solutions, engineered to deliver smooth, high-precision circular and curved path motion for applications requiring non-linear movement. As a specialized alternative to standard linear guides, our GGY Rolling ARC Guide Rail series combines advanced rolling friction technology, precision-machined curved raceways, and high-rigidity structural design, enabling seamless, low-friction motion along custom arc paths while maintaining exceptional load capacity and positioning accuracy. We offer three core configurations to meet diverse industrial needs: full-circle ring guides, fixed-radius arc rails, and flexible segmented curved guides, each tailored to unique motion system requirements.
Core Product Features
Precision Curved Motion Performance: Precision-ground arc raceways and optimized rolling ball/roller systems ensure smooth, low-vibration movement along circular or curved paths, eliminating the need for complex mechanical linkages and reducing system complexity.
High Rigidity & Load-Bearing Capacity: Manufactured from high-hardness, wear-resistant alloy steel with advanced heat treatment, our ARC guides withstand heavy radial, axial, and moment loads, maintaining structural stability and long-term precision under continuous operation.
Ultra-Low Friction & High Efficiency: Rolling contact design delivers far lower friction than traditional curved sliding guides, achieving up to 90%+ transmission efficiency, reducing driving torque, energy consumption, and wear for extended service life.
Three Versatile Configurations:
Full-Circle Ring Guides: Seamless 360° circular motion solutions for rotary indexing tables, turntables, and circular automation systems, delivering continuous, high-precision rotation.

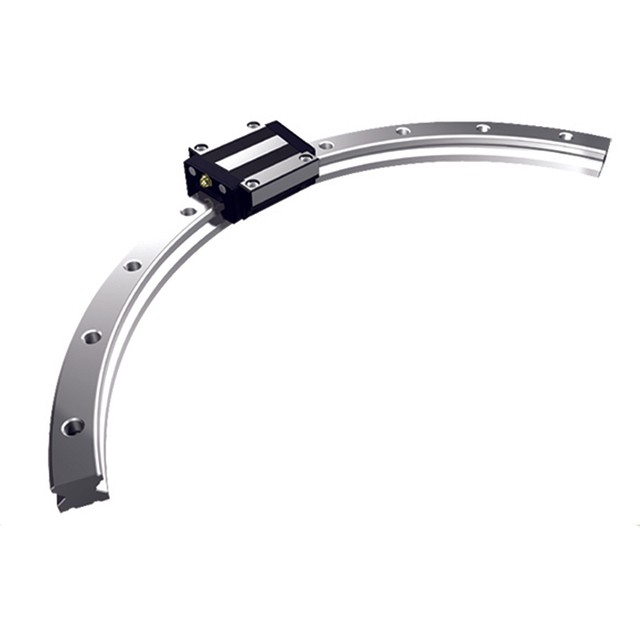

Fixed-Radius Arc Rails: Precisely machined curved rails for fixed-angle (e.g., 90°, 180°) motion paths, ideal for curved transfer lines and robotic arc motion applications.

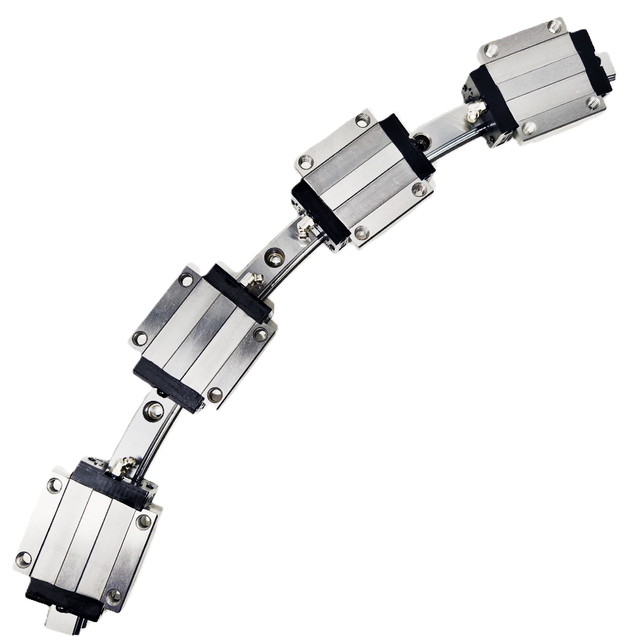

Flexible Segmented Curved Guides: Modular, multi-segment arc rails for custom, complex curved paths, enabling flexible motion design for specialized machinery and automation systems.
Customizable & Integrated Design: Available in a wide range of radii, slider configurations, and sealing options, with universal mounting interfaces for seamless integration into diverse mechanical systems, supporting custom engineering and fast installation.
Superior Sealing & Durability: Multi-layer dust-proof sealing structures protect internal rolling elements from contaminants, ensuring reliable operation in harsh industrial environments and reducing maintenance requirements.
Wide Application Scenarios
Our ARC Guides are critical components for curved motion control systems across global industrial sectors, powering equipment such as:
Rotary indexing tables, turntables, and circular assembly lines in automated manufacturing
Robotic arms, curved transfer systems, and automated guided vehicles (AGVs) in factory automation
Semiconductor manufacturing equipment, medical imaging devices, and optical inspection systems for precision circular positioning
Aerospace test equipment, automotive production lines, and heavy-duty industrial machinery for high-load curved motion
Packaging machinery, food processing equipment, and material handling systems requiring curved transfer paths
Specialized machinery with custom curved motion requirements, such as 3D printers, laser cutting systems, and stage automation equipment
Whether you need full-circle ring guides for continuous rotary motion, fixed-radius arc rails for standard curved paths, or flexible segmented guides for custom complex motion systems, our comprehensive ARC Guide series provides tailored, high-performance solutions to elevate the efficiency, precision, and reliability of your curved motion machinery.
