JF Type Large Heavy Load Ball Screw

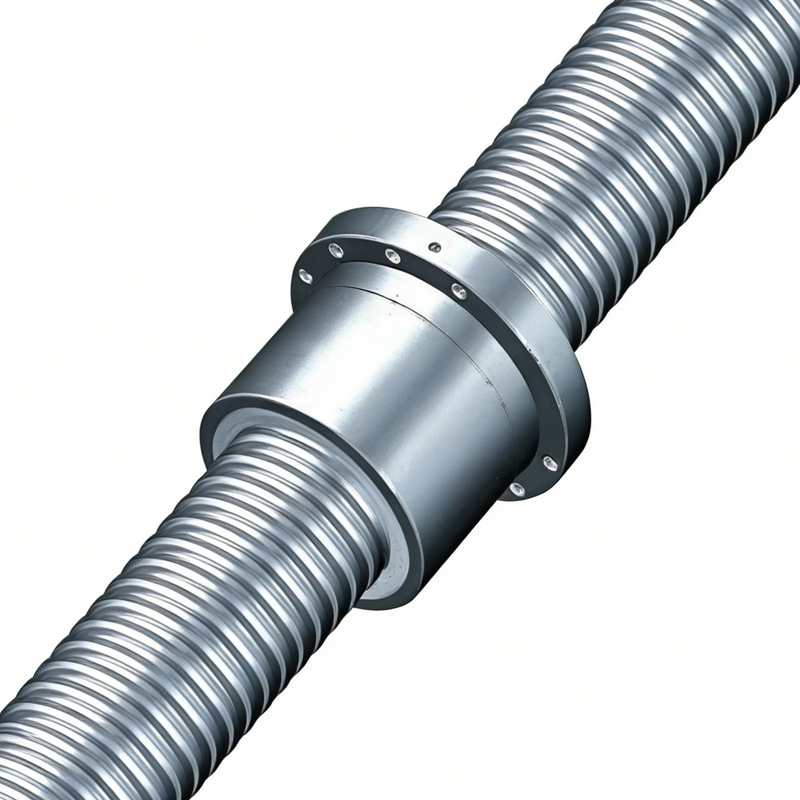

The JF Type Large Heavy Load Ball Screw is a specialized long-stroke, ultra-heavy-duty motion transmission component engineered to solve core manufacturing challenges of large heavy-load ball screws. Breaking through technical barriers in structural design, heat treatment, precision straightening, raceway forming and dynamic detection, this screw adopts a premium multi-path large-diameter 80-ball circulation structure. It delivers exceptional load capacity with 126 tons maximum dynamic load and 595 tons maximum static load. Backed by China’s first professional 10-meter ball screw production line and certified testing equipment, it ensures stable performance, high rigidity and reliable precision for heavy-duty industrial applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
JF series
Brand:
NANJING GONGYI

JF Type Large Heavy Load Ball Screw ball screw Heavy Load Ball Screw Large Ball Screw Heavy Load Ball Screw supplier Heavy Load Ball Screw manufacturer

Product Description

JF Type Large Heavy Load Ball Screw

Product Core Advantages

Long-length processing limitations and insufficient heavy-load bearing capacity have long been core bottlenecks restricting the production and practical application of large heavy-duty ball screws. The JF Type Large Heavy Load Ball Screw completely overcomes these industry pain points through full-process technical breakthroughs. Our team has independently mastered and optimized key core technologies covering overall structural design, professional heat treatment processing, high-precision mechanical straightening, precise raceway forming and full-standard dynamic performance detection, realizing comprehensive upgrades in the manufacturing of ultra-long heavy-load ball screws. Different from conventional standard ball screws, this JF Type heavy-load series features an exclusive multi-path large-diameter 80-ball circulation loop structure. This optimized force-bearing circulation design greatly enhances structural rigidity, pressure resistance and operational stability under extreme working conditions. It achieves an outstanding maximum rated dynamic load of 126 tons and a maximum rated static load of 595 tons, far exceeding the load performance of ordinary ball screw products. It effectively resists structural deformation, operational jitter and precision degradation during long-term continuous heavy-load operation, significantly improving the stability and service life of heavy industrial mechanical systems.

Wide Application Scenarios

Featuring ultra-high static and dynamic load resistance, superior structural rigidity and reliable long-stroke operation stability, the JF Type Large Heavy Load Ball Screw is tailored for harsh heavy-duty industrial working conditions that require super-large load capacity and ultra-long linear travel. It is widely applied in large heavy-duty CNC machine tools, heavy industrial forging and pressing equipment, large-scale automated mechanical systems, heavy engineering machinery and other high-load industrial manufacturing scenarios. Whether for long-distance precise positioning or high-frequency heavy-load linear transmission of super-large industrial equipment, this heavy-load ball screw maintains consistent and durable transmission performance, fully adapting to the high-rigidity and high-load operational demands of modern heavy industry.

Notes:

1.Kc is theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.

2.When axial load F is not equal to 0.3Ca,

In formula:

K is rigidity value shown in Table.

3.This type ball screw can be used in high temperature working environment

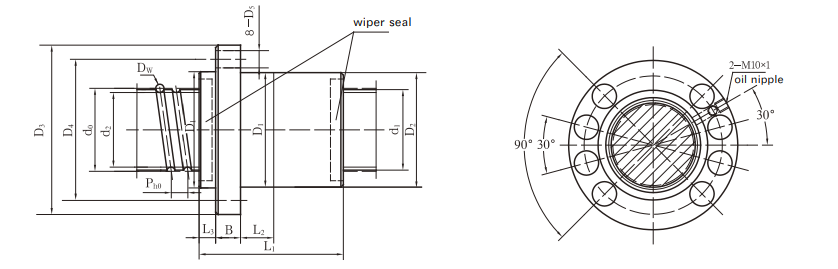

Code and spec	Nominal diad。	Basiclead P_ho	Outer dia.of ball screw d₁	Ball dia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Basic rated load		Mounting &connecting dimension									Code and spec.
Code and spec	Nominal diad。	Basiclead P_ho	Outer dia.of ball screw d₁	Ball dia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Dynamic load C₂KN	Static load C_oaKN	Rigidity K C N/μm	D₁ (g6)	D2()	L₂	D₃	B	D₅	D₄	L₁	Code and spec.
JF8020-8	80	20	80	12.7	70.9	8	401.0	1212.1	4020	125	125	25	170	32	13.5	150	218	JF 8020-8
JF8025-5	80	25	80	12.7	70.9	5	267.1	756.3	2582	125	125	25	170	32	13.5	150	189	JF 8025-5
JF8025-8	80	25	80	12.7	70.9	8	400.2	1210.1	4046	125	125	25	170	32	13.5	150	264	JF 8025-8
JF8032-5	80	32	80	12.7	70.9	5	266.1	754.1	2590	125	125	25	170	36	13.5	150	231	JF 8032-5
JF8032-8	80	32	80	12.7	70.9	8	398.7	1206.6	4057	125	125	25	170	36	13.5	150	327	JF 8032-8

JF10020-5	100	20	97	12.7	87.9	5	297.0	954.3	3060	150	150	25	207	32	17.5	180	160	JF 10020-5
JF10020-8	100	20	97	12.7	87.9	8	444.9	1526.9	4795	150	150	25	207	32	17.5	180	220	JF 10020-8
JF10025-5	100	25	97	15.875	85.7	5	402.7	1182.0	3163	150	150	25	207	32	17.5	180	196	JF 10025-5
JF10025-8	100	25	97	15.875	85.7	8	603.3	1891.2	4956	150	150	25	207	32	17.5	180	271	JF 10025-8
JF10032-5	100	32	97	15.875	85.7	5	401.7	1179.7	3185	150	150	25	207	36	17.5	180	240	JF 10032-5
JF10032-8	100	32	97	15.875	85.7	8	601.8	1887.5	4990	150	150	25	207	36	17.5	180	336	JF 10032-8
JF10040-4	100	40	97	15.875	85.7	4	330.3	941.1	2580	150	150	40	207	36	17.5	180	238	JF 10040-4

JF12520-5	125	20	123.5	12.7	114.4	5	341.2	1298.3	3781	170	170	25	244	36	22	210	158	JF 12520-5
JF12520-8	125	20	123.5	12.7	114.4	8	511.2	2077.3	5929	170	170	25	244	36	22	210	218	JF 12520-8
JF12525-5	125	25	123.5	18.256	110.6	5	527.5	1669.3	3749	190	190	25	258	36	22	224	204	JF 12525-5
JF12525-8	125	25	123.5	18.256	110.6	8	790.2	2670.9	5876	190	190	25	258	36	22	224	279	JF 12525-8
JF12532-5	125	32	123.5	20.638	109.2	5	593.2	1746.6	3610	190	190	25	258	36	22	224	252	JF 12532-5
JF12532-8	125	32	123.5	20.638	109.2	8	888.7	2794.6	5656	190	190	25	258	36	22	224	348	JF 12532-8
JF12540-4	125	40	123.5	20.638	109.2	4	488.5	1394.9	2933	190	190	40	258	40	22	224	252	JF 12540-4

JF16020-5	160	20	156.5	12.7	147.4	5	380.6	1692.8	4621	220	220	25	294	40	22	260	163	JF 16020-5
JF16020-8	160	20	156.5	12.7	147.4	8	570.2	2708.5	7248	220	220	25	294	40	22	260	223	JF 16020-8
JF16025-5	160	25	156.5	18.256	143.6	5	591.2	2178.5	4581	240	240	40	314	40	22	280	201	JF 16025-5
JF16025-8	160	25	156.5	18.256	143.6	8	885.7	3485.6	7181	240	240	40	314	40	22	280	276	JF 16025-8
JF16032-5	160	32	156.5	20.638	142.2	5	688.7	2393.8	4612	240	240	40	314	40	22	280	241	JF 16032-5
JF16032-8	160	32	156.5	20.638	142.2	8	1031.7	3830.0	7228	240	240	40	314	40	22	280	337	JF 16032-8
JF16040-4	160	40	156.5	25.4	138.6	4	740.3	2270.5	3752	240	240	40	314	40	22	280	251	JF 16040-4

JF20025-5	200	25	196.5	18.256	183.6	5	669.6	2889.9	5582	280	280	40	349	50	22	315	195	JF 20025-5
JF20025-8	200	25	196.5	18.256	183.6	8	1003.2	4623.9	8755	280	280	40	349	50	22	315	270	JF 20025-8
JF20032-5	200	32	196.5	20.638	182.2	5	780.8	3172.9	5648	280	280	40	349	50	22	315	242	JF 20032-5
JF20032-8	200	32	196.5	20.638	182.2	8	1169.7	5076.6	8855	280	280	40	349	50	22	315	338	JF 20032-8
JF20040-4	200	40	196.5	25.4	178.6	4	850.6	3055.3	4721	300	300	40	369	50	22	335	252	JF 20040-4
JF20040-8	200	40	196.5	25.4	178.6	8	1543.9	6110.6	9159	300	300	40	369	50	22	335	412	JF 20040-8
