DKFZD High Speed Precision Ball Screw

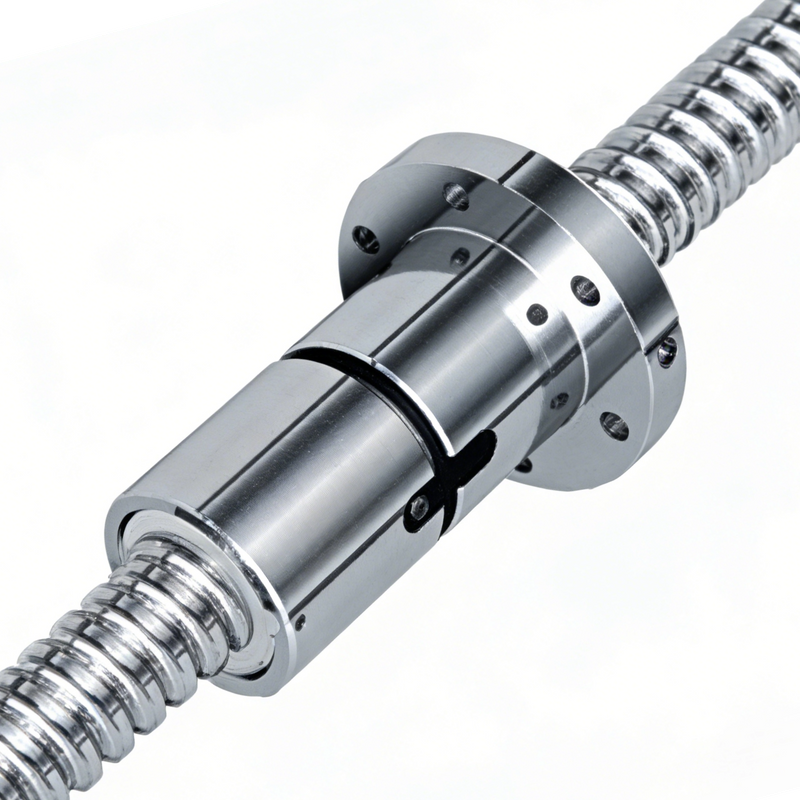

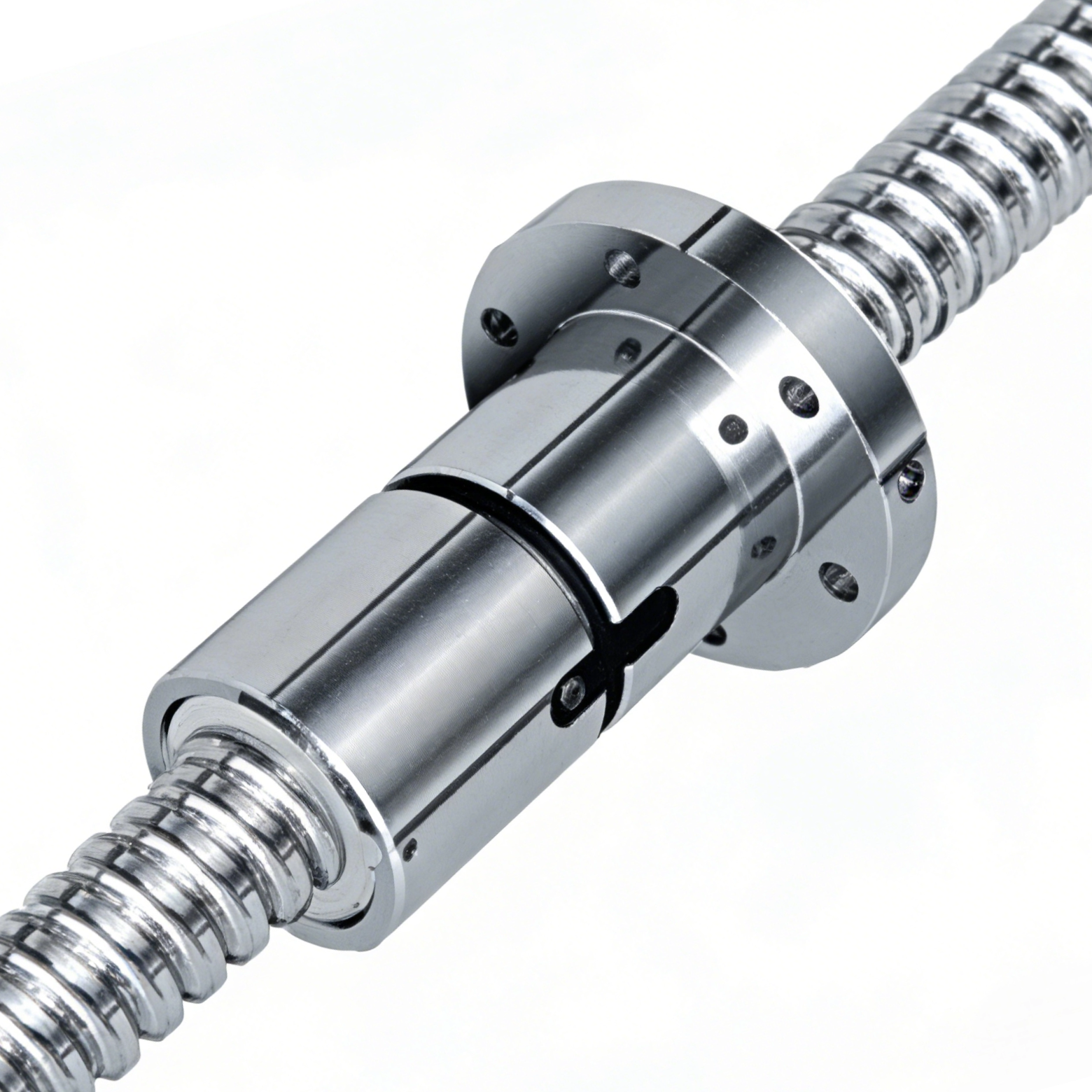

The DKFZD High Speed Precision Ball Screw is a high-performance motion transmission component composed of screws, nuts and steel balls, designed to convert rotary and linear motion efficiently. As an upgraded iteration of traditional slide ball screws, it features ultra-low friction, superior stability and high precision. Backed by decades of professional R&D and manufacturing experience, our ball screws deliver diverse specifications, outstanding load capacity and fast delivery, ideal for various industrial equipment and precision instrument applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
DKFZD series
Brand:
NANJING GONGYI

DKFZD High Speed Precision Ball Screw ball screw Precision Ball Screw High Speed Precision Ball Screw

Product Description

DKFZD High Speed Precision Ball Screw

The DKFZD High Speed Precision Ball Screw serves as a core motion transmission component in modern industrial systems, mainly composed of three core parts: screw shaft, nut and circulating steel balls. Its core functional advantage is realizing the mutual conversion between rotary motion and linear motion, which is a crucial upgraded extension of conventional slide ball screw structures. The technological upgrade of this ball screw product is comparable to the revolutionary shift from sliding friction to rolling friction in bearing technology, fundamentally optimizing the friction performance of motion transmission systems.

Thanks to its optimized rolling friction structure, the DKFZD high-speed precision ball screw achieves extremely low friction resistance, stable operation, high transmission efficiency and excellent motion accuracy. These superior mechanical properties make it widely applicable to all types of industrial automation equipment, precision testing instruments, CNC machine tools and other high-precision industrial scenarios, becoming a core essential component for high-end mechanical motion systems.

Our company has occupied a leading position in China’s ball screw R&D and manufacturing industry with profound technical accumulation since 1964, when we successfully developed China’s first domestic ball screw product. Focusing on the iterative upgrading and market demand of modern CNC machine tool equipment, we have established a clear product development orientation focusing on large size, heavy load, high speed and high precision. Adhering to independent technological innovation, we have independently developed two core series of new products with completely independent intellectual property rights: DKFZD end-cap type high-speed high-precision ball screw and JF/JFZD large heavy-load ball screw. Up to now, we have obtained a total of 14 patented technologies through independent research and development, technical declaration and patent licensing, realizing independent control of core product technologies.

In terms of processing and heat treatment technology, we have taken the lead in applying professional induction hardening technology for ball screw heat treatment in the industry, which effectively improves the surface hardness, wear resistance and overall processing efficiency of products. In recent years, we have comprehensively upgraded the decades-old traditional processing technology system by introducing world-class German high-speed hard whirling processing technology. The technological renovation not only greatly improves product production efficiency and finished product quality stability, but also effectively shortens the product production cycle. With the customized fixed-length pre-processing process, our product delivery cycle can be shortened to 15 days, realizing efficient and fast supply for customers.

We support full-spec customized and mass production of ball screws with ultra-wide parameter coverage. Our product range covers a minimum diameter of 6mm and a minimum lead of 1mm, with a maximum diameter of 245mm, a maximum single processing length of 10m, and a maximum bearing load exceeding 125 tons, meeting the usage requirements of diverse working conditions from small precision equipment to large heavy-duty machinery. In terms of precision grading, we can stably supply mass-standard ball screws of multiple precision levels: 1.5m P0 grade, 2m P1 grade, 4m P2 grade, 5m P3 grade and 10m P5 grade. With complete product specifications, reliable precision performance and strong production capacity, we have become a professional and authoritative full-range ball screw manufacturer in the industry.

Note:

1) Kc is the theoretical calculated value when the preload Fp is 0.1Ca and the axial load F is 0.3Ca;

2) When the axial load F is not equal to 0.3Ca, Kc is the stiffness value in the table;

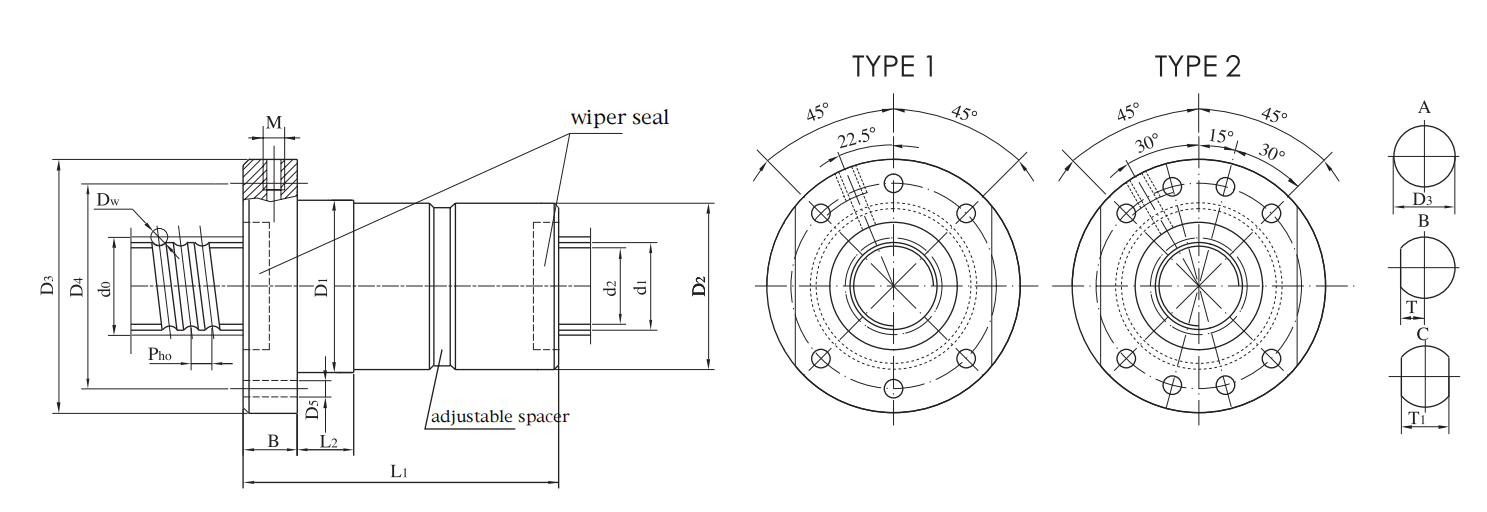

Code and spec.	Nominal dia. d。	Basiclead P_ho	Outer dia of ballscrew d₁	Balldia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Basic rated load		Rigidity Kc Nμm	Mounting &connecting dimension												Code and spec.
Code and spec.	Nominal dia. d。	Basiclead P_ho	Outer dia of ballscrew d₁	Balldia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Dynamic load CaKN	Static load Coa KN	Rigidity Kc Nμm	D₁ (g6)	D2()	L₂	D₃	B	D₄	D₅	TYPE	T	T₁	M	L₁	Code and spec.
DKFZD2510-3	25	10	25	3.969	21.7	3	15.7	29.3	522	45	45	20	65	11	54	6.6	1	25.5	51	M6	104	DKFZD2510-3
DKFZD2510-4	25	10	25	3.969	21.7	4	20.5	39.9	702	45	45	20	65	11	54	6.6		25.5	51	M6	124	DKFZD2510-4

DKFZD3206-4	32	6	32	3.969	28.7	4	23.4	52.8	859	53	53	20	87	12	72	9		34.5	69	M6	96	DKFZD3206-4
DKFZD3206-5	32	6	32	3.969	28.7	5	28.7	66.9	1077	53	53	20	87	12	72	9		34.5	69	M6	108	DKFZD3206-5
DKFZD3210-4	32	10	32	3.969	28.7	4	23.3	52.7	871	53	53	20	87	12	72	9		34.5	69	M6	130	DKFZD3210-4
DKFZD3210-5	32	10	32	3.969	28.7	5	28.6	66.7	1091	53	53	20	87	12	72	9		34.5	69	M6	150	DKFZD3210-5
DKFZD3210-4	32	10	32	6.35	26.9	4	42.7	80.7	903	62	62	20	92	14	77	9		37	74	M6	139	DKFZD3210-4
DKFZD3210-5	32	10	32	6.35	26.9	5	52.3	102.3	1132	62	62	20	92	14	77	9		37	74	M6	159	DKFZD3210-5
DKFZD3212-4	32	12	32	3.969	28.7	4	23.3	52.6	871	53	53	20	87	12	72	9		34.5	69	M6	140	DKFZD3212-4
DKFZD3212-5	32	12	32	3.969	28.7	5	28.5	66.6	1092	53	53	20	87	12	72	9		34.5	69	M6	164	DKFZD3212-5
DKFZD3212-4	32	12	32	6.35	26.9	4	42.6	80.6	904	62	62	20	92	14	77	9		37	74	M6	155	DKFZD3212-4
DKFZD3212-5	32	12	32	6.35	26.9	5	52.2	102.1	1132	62	62	20	92	14	77	9		37	74	M6	179	DKFZD3212-5
DKFZD3216-4	32	16	32	6.35	26.9	4	42.3	80.2	899	62	62	20	92	14	77	9	2	37	74	M6	189	DKFZD3216-4

DKFZD4010-4	40	10	40	6.35	34.9	4	48.0	102.6	1084	70	70	20	100	14	85	9		37.5	75	M8×1	149	DKFZD4010-4
DKFZD4010-5	40	10	40	6.35	34.9	5	58.9	130.0	1358	70	70	20	100	14	85	9		37.5	75	M8×1	169	DKFZD4010-5
DKFZD4012-4	40	12	40	6.35	34.9	4	47.9	102.5	1087	70	70	20	100	14	85	9		37.5	75	M8×1	157	DKFZD4012-4
DKFZD4012-5	40	12	40	6.35	34.9	5	58.8	129.8	1363	70	70	20	100	14	85	9		37.5	75	M8×1	181	DKFZD4012-5
DKFZD4015-5	40	15	40	6.35	34.9	5	58.6	129.5	1364	70	70	20	100	14	85	9		37.5	75	M8×1	204	DKFZD4015-5
DKFZD4016-4	40	16	40	6.35	34.9	4	47.7	102.1	1088	70	70	20	100	14	85	9		37.5	75	M8×1	187	DKFZD4016-4
DKFZD4016-5	40	16	40	6.35	34.9	5	58.5	129.4	1363	70	70	20	100	14	85	9		37.5	75	M8×1	219	DKFZD4016-5
DKFZD4020-4	40	20	40	6.35	34.9	4	47.5	101.7	1083	70	70	20	100	14	85	9		37.5	75	M8×1	225	DKFZD4020-4
DKFZD4020-5	40	20	40	6.35	34.9	5	58.2	128.8	1357	70	70	20	100	14	85	9		37.5	75	M8×1	265	DKFZD4020-5
DKFZD4025-4	40	25	40	6.35	34.9	4	47.1	101.0	1073	70	70	20	100	14	85	9		37.5	75	M8×1	259	DKFZD4025-4
DKFZD4030-3	40	30	40	6.35	34.9	3	36.8	77.1	821	70	70	20	100	14	85	9		37.5	75	M8×1	239	DKFZD4030-3

DKFZD High Speed Precision Ball Screw

Note:

1) Kc is the theoretical calculated value when the preload Fp is 0.1Ca and the axial load F is 0.3Ca;

2) When the axial load F is not equal to 0.3Ca, Kc is the stiffness value in the table;

3) This type of ball screw pair is suitable for high-speed applications;

4) Normal working ambient temperature range ±80℃;

5) Any special request should be made at the time of ordering.

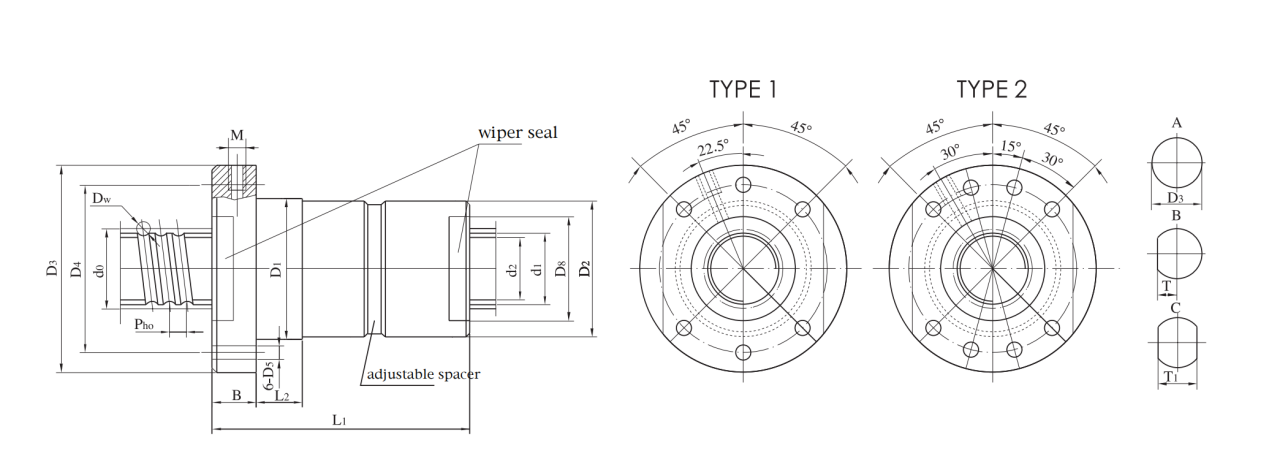

Code and spec.	Nominal diad。	Basic lead P_ho	Outer dia.of ballscrew d₁	Balldia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Basic rated load		Rigidity Mounting &connecting dimension													Code and spec.
Code and spec.	Nominal diad。	Basic lead P_ho	Outer dia.of ballscrew d₁	Balldia. Dw	Bottom dia. of ball screw d₂	Number of circles n	Dynamic badC₂KN	Static badCKN	Kc N/μm	D₁ (g6)	D2()	L2	D₃	B	D₄	D₅	TYPE	T	T₁	M	L₁	Code and spec.
DKFZD5010-4	50	10	50	6.35	44.9	4	53.4	129.9	1293	82	82	20	118	16	100	11	2	46	92	M8×1	145	DKFZD5010-4
DKFZD5010-5	50	10	50	6.35	44.9	5	65.4	164.5	1620	82	82	20	118	16	100	11		46	92	M8×1	165	DKFZD5010-5
DKFZD5012-4	50	12	50	6.35	44.9	4	53.3	129.8	1300	82	82	20	118	16	100	11		46	92	M8×1	163	DKFZD5012-4
DKFZD5012-5	50	12	50	6.35	44.9	5	65.4	164.4	1629	82	82	20	118	16	100	11		46	92	M8×1	187	DKFZD5012-5
DKFZD5016-4	50	16	50	6.35	44.9	4	53.2	129.5	1307	82	82	20	118	16	100	11		46	92	M8×1	187	DKFZD5016-4
DKFZD5016-5	50	16	50	6.35	44.9	5	65.2	164.0	1637	82	82	20	118	16	100	11		46	92	M8×1	219	DKFZD5016-5
DKFZD5020-4	50	20	50	6.35	44.9	4	53.0	129.1	1307	82	82	20	118	16	100	11		46	92	M8×1	215	DKFZD5020-4
DKFZD5020-5	50	20	50	6.35	44.9	5	65.0	163.6	1637	82	82	20	118	16	100	11		46	92	M8×1	255	DKFZD5020-5
DKFZD5025-4	50	25	50	6.35	44.9	4	52.7	128.6	1301	82	82	20	118	16	100	11		46	92	M8×1	263	DKFZD5025-4
DKFZD5030-4	50	30	50	6.35	44.9	4	52.3	127.9	1291	82	82	20	118	16	100	11		46	92	M8×1	295	DKFZD5030-4
DKFZD5040-3	50	40	50	6.35	44.9	3	40.4	96.2	971	82	82	20	118	16	100	11		46	92	M8×1	295	DKFZD5040-3

DKFZD6310-5	63	10	63	6.35	57.9	5	71.7	206.1	1901	95	95	20	135	22	115	13.5		50	100	M8×1	165	DKFZD6310-5
DKFZD6312-5	63	12	63	6.35	57.9	5	71.6	206.0	1918	95	95	20	135	22	115	13.5		50	100	M8×1	187	DKFZD6312-5
DKFZD6312-5	63	12	63	7.938	56.7	5	97.6	257.2	1983	98	98	20	138	25	118	13.5		51.5	103	M8×1	193	DKFZD6312-5
DKFZD6316-5	63	16	63	6.35	57.9	5	71.5	205.7	1936	95	95	20	135	22	115	13.5		50	100	M8×1	219	DKFZD6316-5
DKFZD6316-5	63	16	63	9.525	55.6	5	125.0	307.9	2065	107	107	30	147	28	127	13.5		56	112	M8×1	254	DKFZD6316-5
DKFZD6320-5	63	20	63	6.35	57.9	5	72.9	212.0	1998	95	95	20	135	22	115	13.5		50	100	M8×1	259	DKFZD6320-5
DKFZD6320-5	63	20	63	9.525	55.6	5	124.7	307.3	2072	107	107	30	147	28	127	13.5		56	112	M8×1	290	DKFZD6320-5
DKFZD6325-4	63	25	63	6.35	57.9	4	59.3	166.9	1595	95	95	20	135	22	115	13.5		50	100	M8×1	262.5	DKFZD6325-4
DKFZD6325-4	63	25	63	9.525	55.6	4	101.4	242.0	1654	107	107	30	147	28	127	13.5		56	112	M8×1	290	DKFZD6325-4
DKFZD6330-4	63	30	63	6.35	57.9	4	59.0	166.3	1591	95	95	20	135	22	115	13.5		50	100	M8×1	299	DKFZD6330-4
DKFZD6330-4	63	30	63	9.525	55.6	4	101.0	241.2	1649	107	107	30	147	28	127	13.5		56	112	M8x1	330	DKFZD6330-4
DKFZD6340-3	63	40	63	6.35	57.9	3	44.7	120.9	1169	95	95	20	135	22	115	13.5		50	100	M8×1	295	DKFZD6340-3
DKFZD6340-3	63	40	63	9.525	55.6	3	76.5	175.4	1212	107	107	30	147	28	127	13.5		56	112	M8×1	330	DKFZD6340-3

DKFZD8016-5	80	16	80	9.525	72.5	5	140.9	401.0	2515	125	125	25	165	25	145	13.5		67.5	135	M8×1	254	DKFZD8016-5
DKFZD8020-5	80	20	80	9.525	72.5	5	140.7	400.5	2533	125	125	25	165	25	145	13.5		67.5	135	M8×1	290	DKFZD8020-5
DKFZD8025-4	80	25	80	9.525	72.5	4	114.5	315.7	2029	125	125	25	165	25	145	13.5		67.5	135	M8×1	290	DKFZD8025-4
DKFZD8030-4	80	30	80	9.525	72.5	4	114.2	315.0	2031	125	125	25	165	25	145	13.5		67.5	135	M8×1	330	DKFZD8030-4
DKFZD8030-4	80	30	80	12.7	70.9	4	217.4	567.9	2616	140	140	25	180	32	160	13.5		75	150	M8×1	350	DKFZD8030-4
DKFZD8040-3	80	40	80	9.525	72.5	3	86.9	229.8	1504	125	125	25	165	25	145	13.5		67.5	135	M8×1	330	DKFZD8040-3
DKFZD8040-3	80	40	80	12.7	70.9	3	165.4	414.3	1943	140	140	25	180	32	160	13.5		75	150	M8×1	350	DKFZD8040-3
