Integrated Structural Design

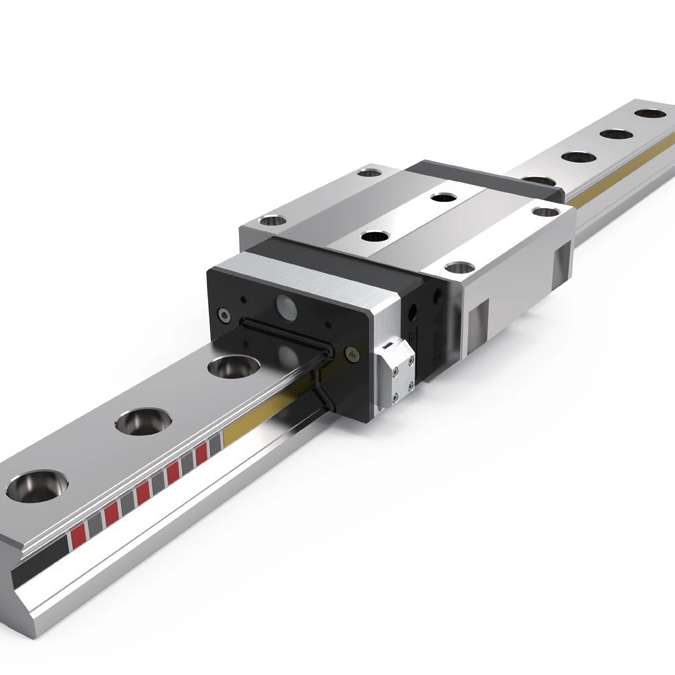

Different from traditional linear guides and split magnetic grid measurement components, the Magnetic Grid Linear Guideway adopts an innovative integrated design that fully integrates the professional magnetic grid measurement system and rolling linear guideway assembly into a single unit. This integrated structural optimization abandons the traditional split installation mode, where the guide rail and magnetic measuring system need to be purchased, installed, and calibrated separately.

The magnetic grid system is pre-assembled and precisely matched with the rolling guideway during production, with no subsequent disassembly, secondary assembly or complicated parameter adjustment required for end users. The highly integrated structure ensures perfect coordination between linear motion and position measurement, avoiding installation errors and precision deviations caused by separate assembly of discrete components.

Core Product Advantages

The biggest highlight of the Magnetic Grid Linear Guideway is its ultra-simple installation and debugging process. The integrated magnetic grid and guide rail structure greatly simplifies the overall equipment assembly workflow, effectively saving on-site installation time and reducing manual debugging costs. It lowers the technical threshold for equipment assembly and effectively avoids precision instability caused by improper manual calibration of split magnetic grid systems.

While retaining the stable rolling motion performance of standard linear guideways, the built-in magnetic grid measurement system ensures real-time, accurate position detection and motion feedback during equipment operation. The integrated design guarantees long-term structural stability and measurement consistency, making it a reliable high-precision linear motion and positioning component for automated precision equipment.

Application Scenarios

Thanks to its integrated structure, convenient installation and high-precision motion measurement capability, the Magnetic Grid Linear Guideway is widely applicable to automated precision manufacturing equipment and intelligent detection machinery that requires accurate linear positioning and real-time motion feedback. It is especially suitable for equipment scenarios that demand fast assembly, stable operation and high positioning accuracy.
