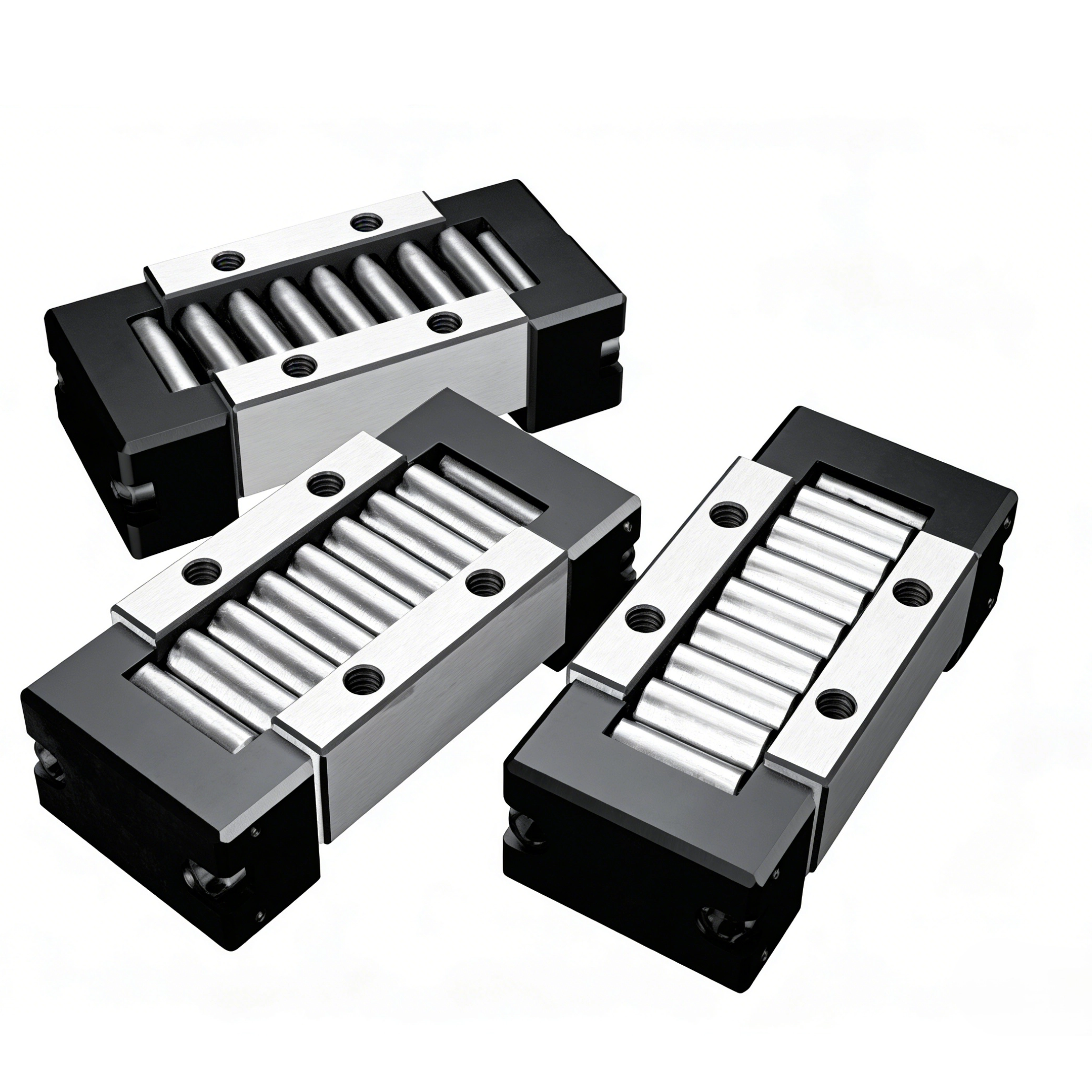

The GZD roller guide block adopts a mature and reliable structural configuration, mainly composed of a precision-machined slider body, circulating rollers and professional roller returners. The internal rollers operate in an infinite circulating loop inside the hardened and finely ground slider track, ensuring continuous and stable linear motion circulation.

To prevent roller displacement and falling off during high-frequency operation, the rollers are designed with a step structure, paired with specially customized clamping grooves on the slider body. This exclusive structural design endows the guide block with an excellent automatic centering function, effectively avoiding running deviation during load operation. It ensures flexible, stable linear movement and greatly extends the overall service life of the guide block under long-term cyclic working conditions.

Core Performance & Functional Advantages

The GZD roller guide block boasts outstanding mechanical performance suitable for high-intensity industrial operation. With superior structural rigidity and ultra-high load capacity, it maintains extremely small elastic deformation even under heavy load and variable load working environments. This core advantage eliminates crawling motion phenomena, realizing ultra-stable, high-precision flat linear motion consistently.

Optimized for high-frequency start-stop and reciprocating motion scenarios, this roller guide slider effectively reduces the dead weight of the complete machine and supporting transmission mechanisms, significantly lowering equipment power consumption and operating costs. Benefiting from the precise matching of step rollers and slider clamping grooves, the product achieves accurate automatic centering during operation, greatly improving the overall positioning precision and motion stability of mechanical equipment.

Different from traditional linear guide components, the circulating roller design breaks the limitation of machine bed length on equipment travel. Users can flexibly configure the number of GZD roller guide blocks according to actual load demands and selection specifications, providing highly flexible and customizable linear motion solutions for diverse mechanical equipment.

Precision Standard

The overall precision of the GZD roller guide block is primarily determined by its core height dimension, which serves as the key index for ensuring balanced load distribution and consistent linear motion accuracy. For scenarios requiring multiple guide blocks to work cooperatively on the same plane, the height dimensional consistency of grouped guide blocks is strictly controlled to guarantee uniform load bearing and stable operating precision.

The standard height deviation of matched GZD roller guide blocks is strictly controlled within 0 to -10μm. This precise dimensional tolerance ensures excellent coordination between paired guide blocks, avoiding unbalanced load, motion jitter and precision attenuation caused by height errors, and maintaining long-term high-precision and stable operation of the complete equipment.

Wide Application Range

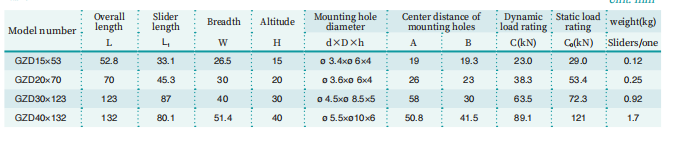

The GZD roller guide block features strong applicability with differentiated specifications, covering light precision scenarios and heavy-duty industrial processing scenarios. Small-size specifications are widely used in molds, precision instruments and various miniature linear motion structural parts, meeting the high-precision and compact installation demands of small precision equipment.

Large-size high-rigidity specifications are dedicated to heavy-duty machine tools and large precision instruments for flat linear motion control. They are especially ideal for NC and CNC machine tool equipment, perfectly adapting to high-load, high-frequency, high-precision and long-cycle industrial processing working conditions, and providing reliable linear motion support for heavy intelligent processing equipment.
