GLB series
NANJING GONGYI

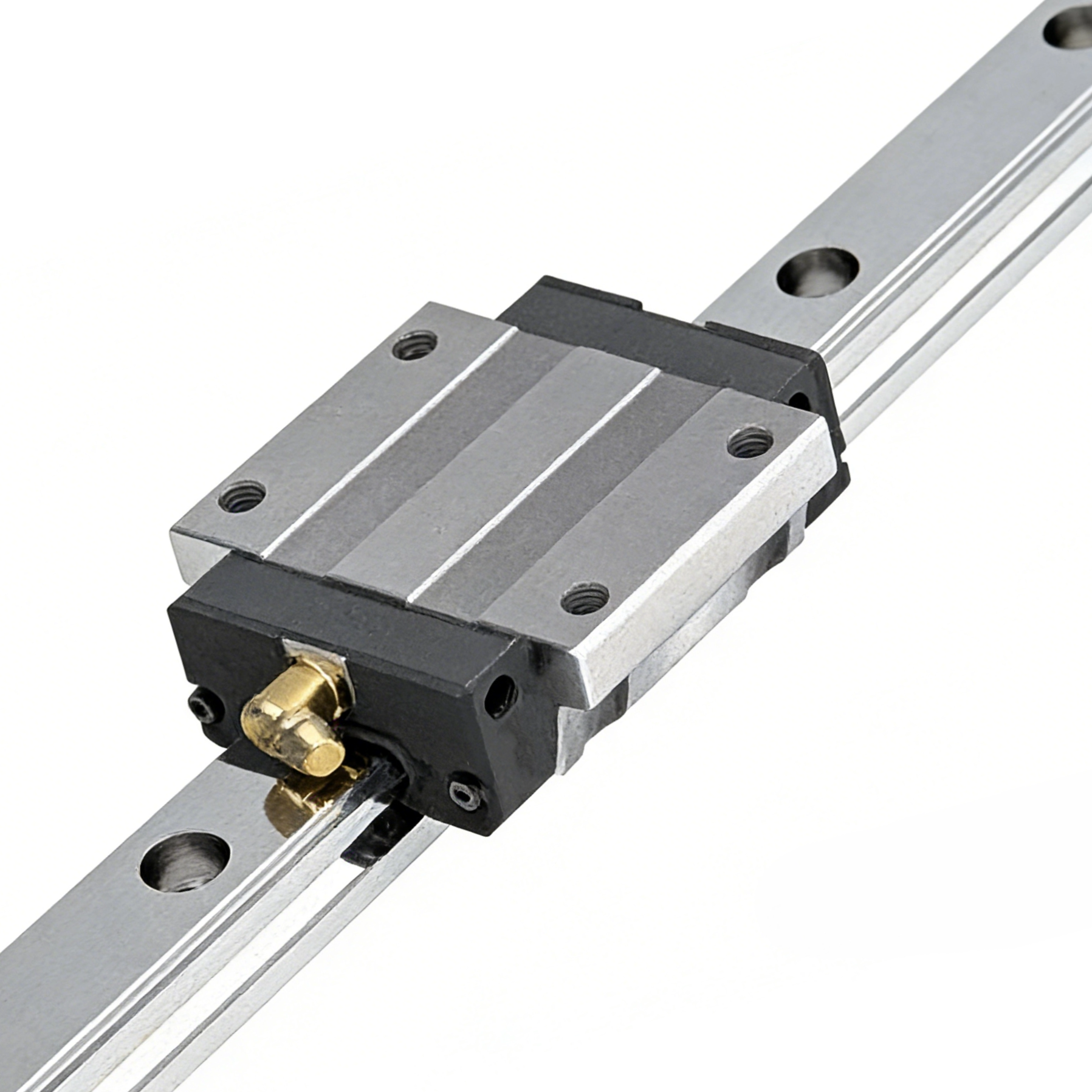

GLB Low Assembly Precision Ball Linear Guide |
The GLB series uses four columns of steel balls to bear the load design, so that it has the characteristics of high rigidity and high load, and has the load cutting characteristics such as direction and automatic aligning function, which can absorb the assembly error of the mounting surface, achieve high precision, and reduce the combination height and shorten the length of the slide block, It is very suitable for high-speed dynamic industrial machinery and small equipment with space requirements.

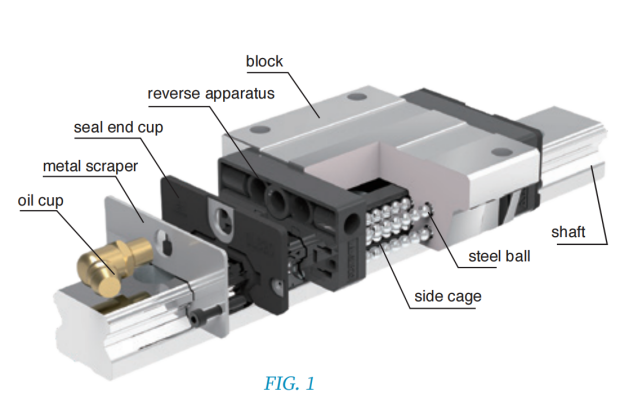

1. Basic structure

2. Application
With its compact low-profile structure, high precision, high-speed dynamic performance and excellent error tolerance, the GLB low assembly precision ball linear guide is widely applied in high-precision, miniaturized and high-speed industrial equipment. It is the ideal linear motion component for modern automated production and precision manufacturing industries, with strong scene adaptability and stable operational reliability.
Its main application equipment covers handling and conveying equipment, full-set industrial automation equipment, high-precision testing instruments, food processing machinery, automated packaging machinery, medical precision equipment, as well as semiconductor and liquid crystal manufacturing and processing equipment. It fully meets the high-precision, high-speed and space-saving linear motion demands of precision manufacturing, medical hygiene, electronic semiconductor and other high-end industries.
3. Sealing type and increased dimensions
Mounting dimension L1 increase (mm) | ||||
Type | No marks | DD | ZZ | KK |
GLB15 | 0 | 4 | 2 | 6 |
GLB20 | 0 | 4 | 2.4 | 6.4 |
GLB25 | 0 | 4 | 3 | 7 |
GLB30 | 0 | 4 | 3 | 7 |
GLB35 | 0 | 4 | 3 | 7 |
4. Type and occasion of preloading
● Preloading is recommended according to different accuracy
Accuracy | Preload type | |||
Grade | P0 | P1 | P | P3 |
2、3、4 | √ | √ | √ | |
5 | √ | √ | √ | |
● Preloading is recommended according to different occasion
Preload type | Application |
P0(0.08—0.1C) | It is often used in situations with high ri- gidity requirements,vibration and shock |
P1(0.03—0.05C) | It is often used for light vibration,light impact,bearing cantilever load and tor- sional load |
P(0—0.02C) | It is often used in low-impact situations |
P3(Gapped) | It is often used in occasions where the accuracy requirements are not high,the installation base surface accuracy is low,and the sliding resistance requirements are small |

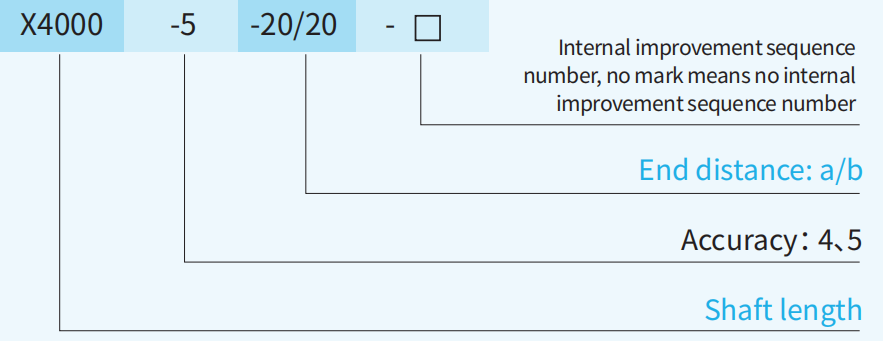

5. Numbering rules and meaning

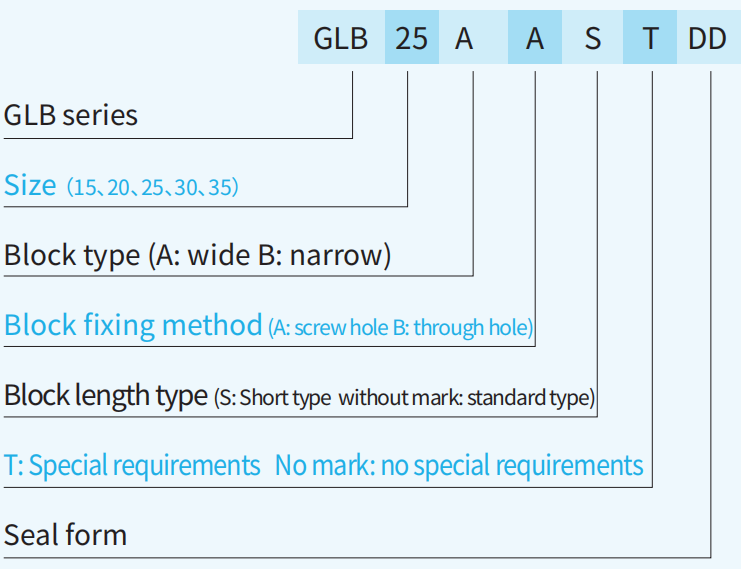

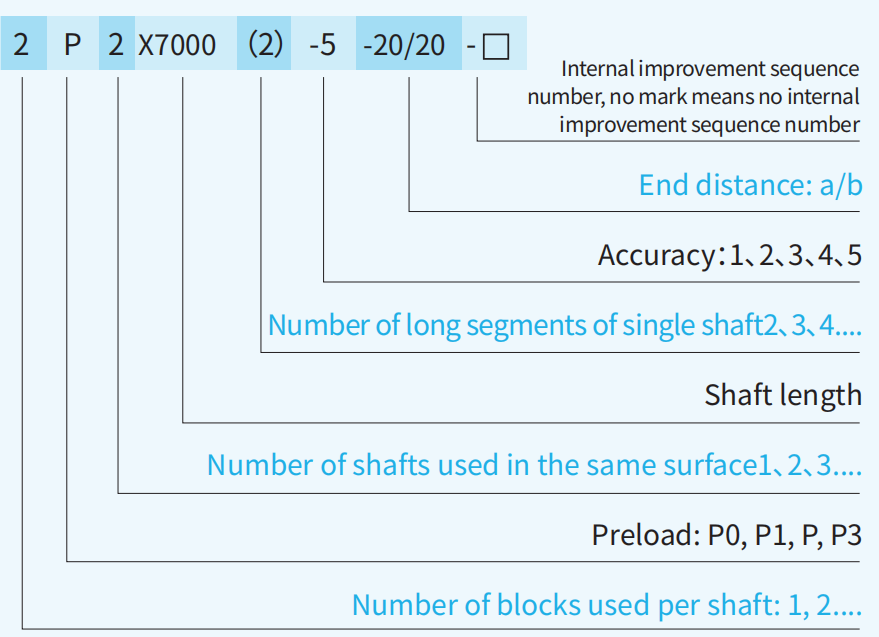

Product code
|
Note:
1. If side refueling is required, please specify;
2. Shaft unit: root; Block unit: pc; Unit of linear guide: set (one shaft and all parts on the shaft are as a set)

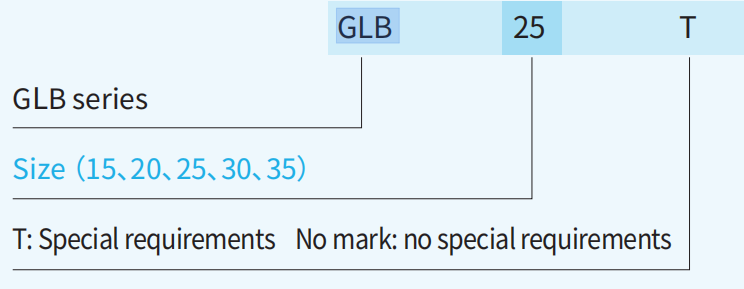

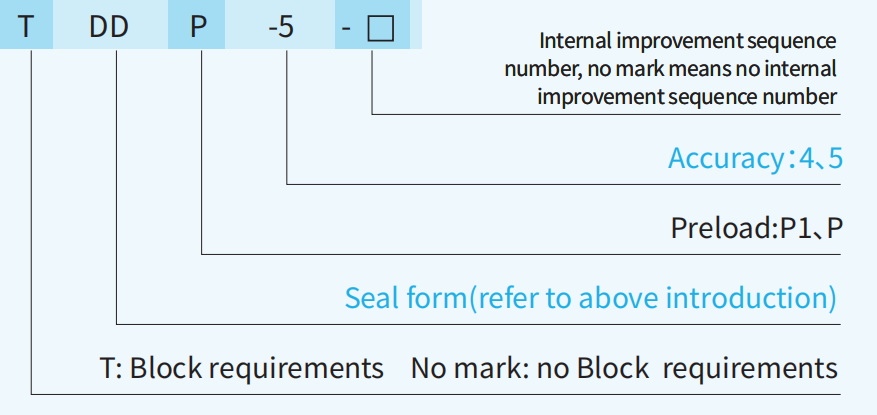

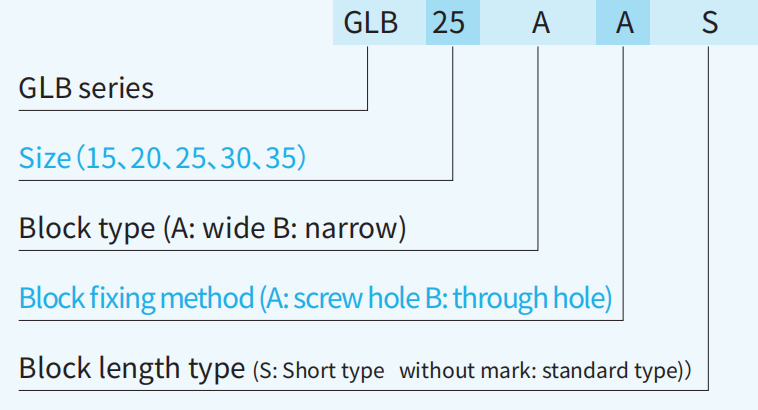

Order shaft and block separately, please order according to the following code: Block product code
|
|
GLB |
Note:

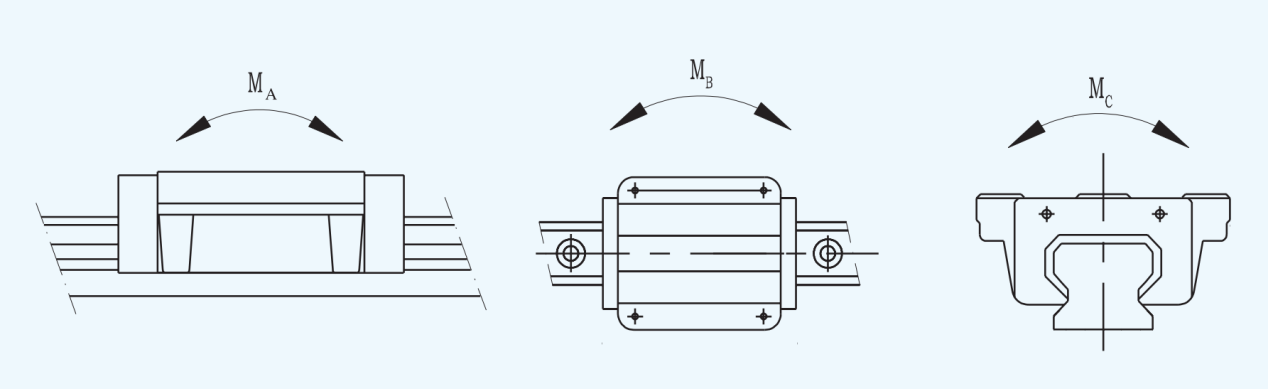

1). MA, MBand MCin the table, as shown in the figure below on the right, refer to the rated static moment value of a slider.
2). LMAXin the table is the maximum length of a guide rail. For example, the length of the guide rail is to be negotiated separately (it is recommended that the guide rail be installed with holes).
3). If there is no special requirement for a single guide rail, the distance between the hole end and the two ends should be evenly divided.
4).L1 size is the standard sealing form size, check the sealing form in detail.

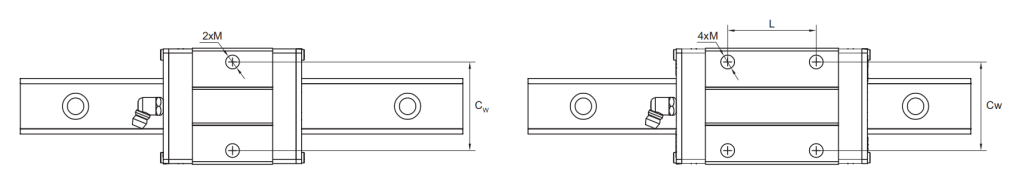

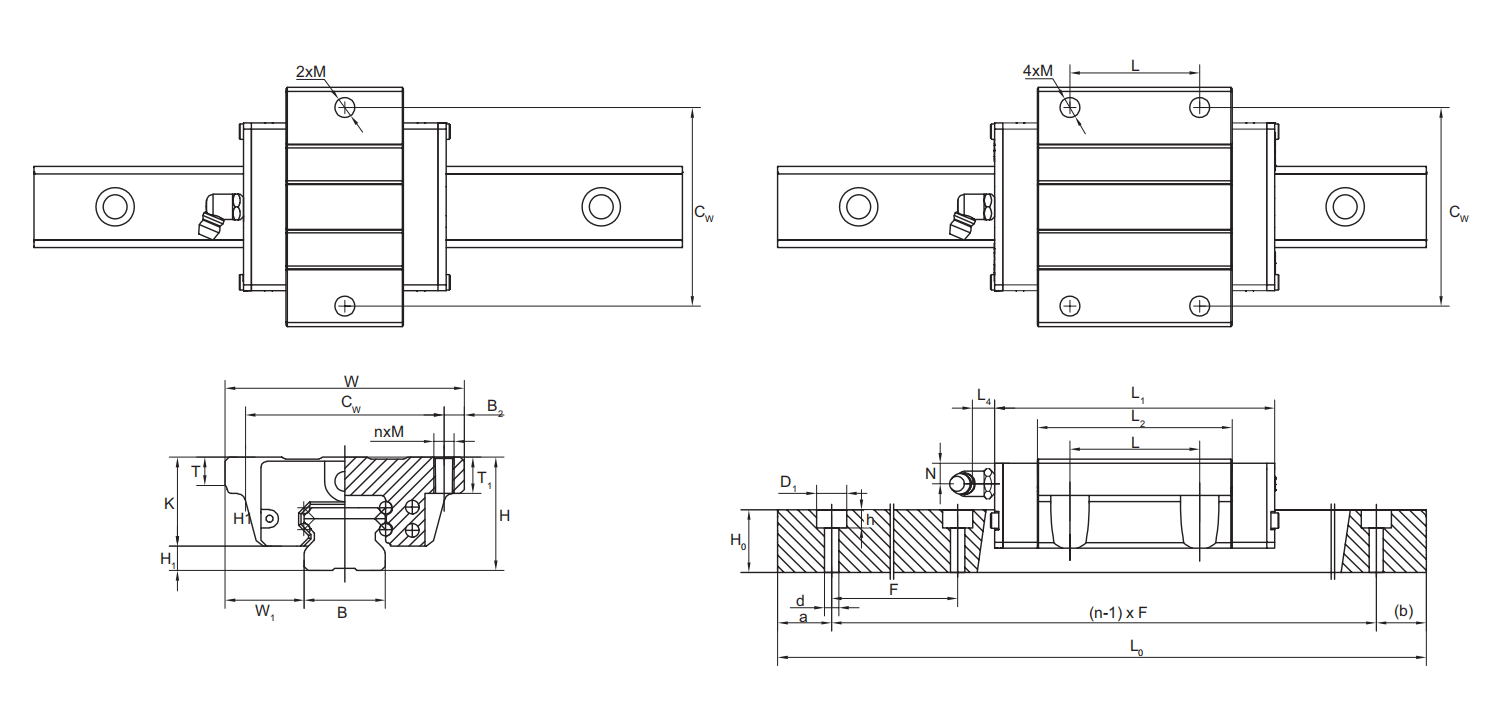

spec. | Dimension of | Dimension of block | Dimension ofrail | Dimension of rail | Smalest | Dimension of oil cup | ynamic | Static load | Torque rating | Block | Rail | spec. | ||||||||||||||||||
H | W₁ | K | w | L | Cw | L | M | T | T₁ | B₂ | L₂ | H₁ | B | H₀ | dxD₁xh | F | Max.single | a | L | G | N | C (KN) | Co (kN) | MA (Nm) | Mg (Nm) | Mc (N ·m) | kg | kg/m | ||
GLB15AAS | 24 | 18.5 | 19.7 | 52 | 40.1 | 41 | M5 | 5 | 72 | 5.5 | 23.1 | 4.3 | 15 | 12.5 | 4.5x7.5×5.3 | 60 | 4000 | 20 | 7 | M4 | 5.5 | 5.35 | 9.4 | 40 | 40 | 80 | 0.12 | 1.25 | GLB15AAS | |
GLB15AA | 56.8 | 26 | 39.8 | 7.83 | 16.19 | 100 | 100 | 130 | 0.21 | GLB15AA | ||||||||||||||||||||
GLB20AAS | 28 | 19.5 | 22.3 | 59 | 51 | 49 | M6 | 7 | 9 | 5 | 29 | 5.7 | 20 | 15.5 | 6x9.5×8.5 | 60 | 4000 | 20 | 14 | M6 | 6 | 7.23 | 12.74 | 60 | 60 | 130 | 0.19 | 2.08 | GLB20AAS | |
GLB20AA | 70.1 | 32 | 48.1 | 10.31 | 21.13 | 160 | 160 | 220 | 0.32 | GLB20AA | ||||||||||||||||||||
GLB25AAS | 33 | 25 | 26.8 | 73 | 59.5 | 60 | M8 | 7.5 | 11 | 6.5 | 35.5 | 6.2 | 23 | 18 | 7x11×9 | 60 | 4000 | 20 | 14 | M6 | 8 | 11.4 | 19.5 | 120 | 120 | 230 | 0.35 | 2.67 | GLB25AAS | |
GLB25AA | 83 | 35 | 59 | 16.27 | 32.4 | 320 | 320 | 380 | 0.59 | GLB25AA | ||||||||||||||||||||
GLB30AAS | 42 | 31 | 32 | 90 | 69.5 | 72 | M10 | 7.5 | 11 | 9 | 41.5 | 10 | 28 | 23 | 7x11×9 | 80 | 4000 | 20 | 14 | M6 | 8 | 16.42 | 28.1 | 210 | 210 | 400 | 0.62 | 4.35 | GLB30AAS | |
GLB30AA | 98.1 | 40 | 70.1 | 23.7 | 47.46 | 550 | 550 | 680 | 1.04 | GLB30AA | ||||||||||||||||||||
GLB35AAS | 48 | 33 | 37 | 100 | 75 | 82 | M10 | 10 | 14 | 9 | 45 | 11 | 34 | 27.5 | 9x14x12 | 80 | 4000 | 20 | 14 | M6 | 8.5 | 22.66 | 37.38 | 310 | 310 | 560 | 0.84 | 6.14 | GLB35AAS | |
GLB35AA | 108 | 50 | 78 | 33.35 | 64.84 | 690 | 690 | 980 | 1.45 | GLB35AA | ||||||||||||||||||||

GLB |
Note:

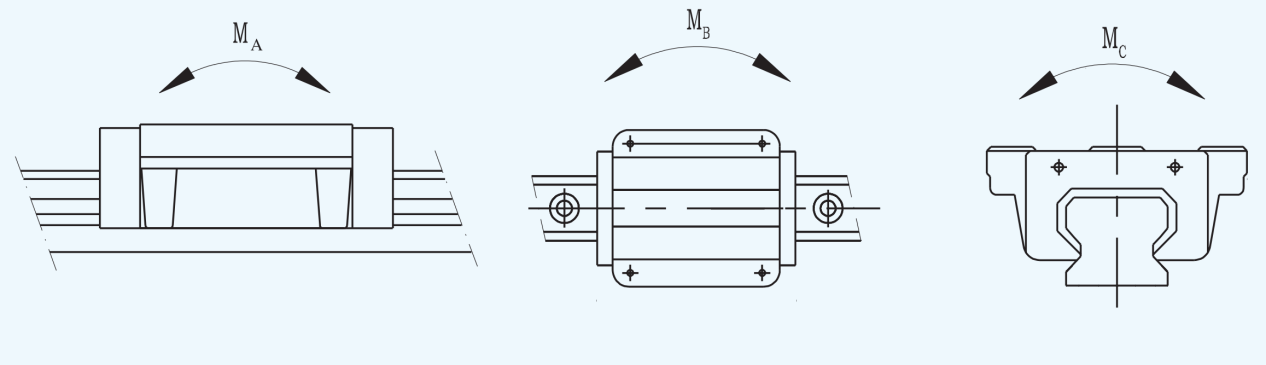

1). MA, MB and MC in the table, as shown in the figure below on the right, refer to the rated static moment value of a slider.
2). LMAX in the table is the maximum length of a guide rail. For example, the length of the guide rail is to be negotiated separately (it is recommended that the guide rail be installed with holes).
3). If there is no special requirement for a single guide rail, the distance between the hole end and the two ends should be evenly divided.
4).L1 size is the standard sealing form size, check the sealing form in detail.

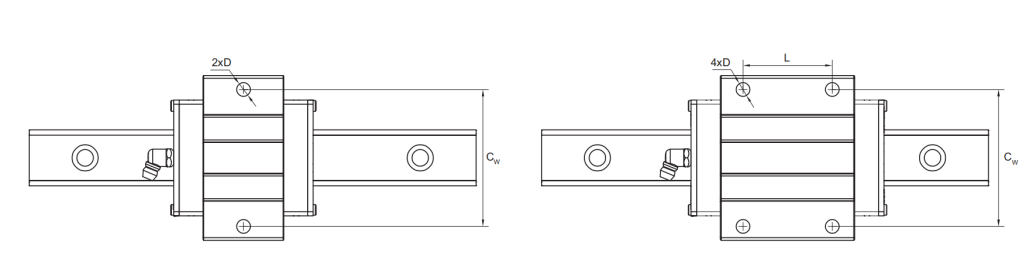

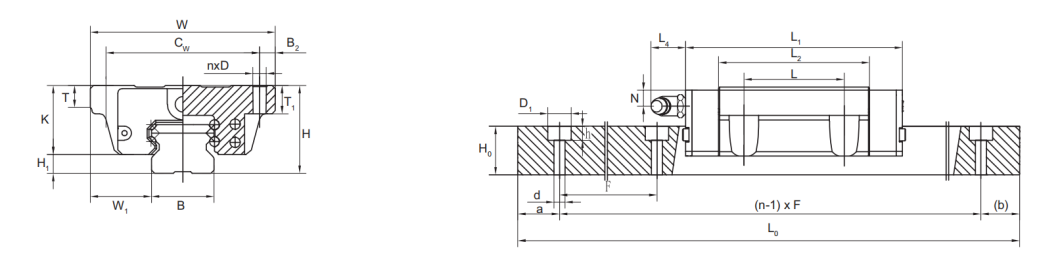

spec. | Dimension of | Dimension of block | Dimension of rail | Dimension of rail | Smalest | Dimension of il cup | ynamic | Static load | Torque rating | Block | Rail | spec. | ||||||||||||||||||
H | W₁ | K | W | L₁ | Cw | L | D | T | T₁ | B₂ | L2 | H₁ | B | H₀ | dxD₁xh | F | Max.single | a | L₄ | G | N | C (KN) | Co (KN) | Ma(N ·m) | Mg(N ·m) | Mc(N ·m) | kg | kg/m | ||
GLB15ABS | 24 | 18.5 | 19.7 | 52 | 40.1 | 41 | ø4.5 | 5 | 7.2 | 5.5 | 23.1 | 4.3 | 15 | 12.5 | 4.5×7.5x5.3 | 60 | 4000 | 20 | 7 | M4 | 5.5 | 5.35 | 9.4 | 40 | 40 | 80 | 0.12 | 1.25 | GLB15ABS | |
GLB15AB | 56.8 | 26 | 39.8 | 7.83 | 16.19 | 100 | 100 | 130 | 0.21 | GLB15AB | ||||||||||||||||||||
GLB20ABS | 28 | 19.5 | 22.3 | 59 | 51 | 49 | ⑦5.5 | 7 | 9 | 5 | 29 | 5.7 | 20 | 15.5 | 6x9.5x8.5 | 60 | 4000 | 20 | 14 | M6 | 6 | 7.23 | 12.74 | 60 | 60 | 130 | 0.19 | 2.08 | GLB20ABS | |
GLB20AB | 70.1 | 32 | 48.1 | 10.31 | 21.13 | 160 | 160 | 220 | 0.32 | GLB20AB | ||||||||||||||||||||
GLB25ABS | 33 | 25 | 26.8 | 73 | 59.5 | 60 | ø7 | 7.5 | 11 | 6.5 | 35.5 | 6.2 | 23 | 18 | 7x11x9 | 60 | 4000 | 20 | 14 | MG | 8 | 11.4 | 19.5 | 120 | 120 | 230 | 0.35 | 2.67 | GLB25ABS | |
GLB25AB | 83 | 35 | 59 | 16.27 | 32.4 | 320 | 320 | 380 | 0.59 | GLB25AB | ||||||||||||||||||||
GLB30ABS | 42 | 31 | 32 | 90 | 69.5 | 72 | ø9 | 7.5 | 11 | 9 | 41.5 | 10 | 28 | 23 | 7x11x9 | 80 | 4000 | 20 | 14 | M6 | 8 | 16.42 | 28.1 | 210 | 210 | 400 | 0.62 | 4.35 | GLB30ABS | |
GLB30AB | 98.1 | 40 | 70.1 | 23.7 | 47.46 | 550 | 550 | 680 | 1.04 | GLB30AB | ||||||||||||||||||||
GLB35ABS | 48 | 33 | 37 | 100 | 75 | 82 | ø9 | 10 | 14 | 9 | 45 | 11 | 34 | 27.5 | 9x14x12 | 80 | 4000 | 20 | 14 | M6 | 8.5 | 22.66 | 37.38 | 310 | 310 | 560 | 0.84 | 6.14 | GLB35ABS | |
GLB35AB | 108 | 50 | 78 | 33.35 | 64.84 | 690 | 690 | 980 | 1.45 | GLB35AB | ||||||||||||||||||||

GLB |
Note:

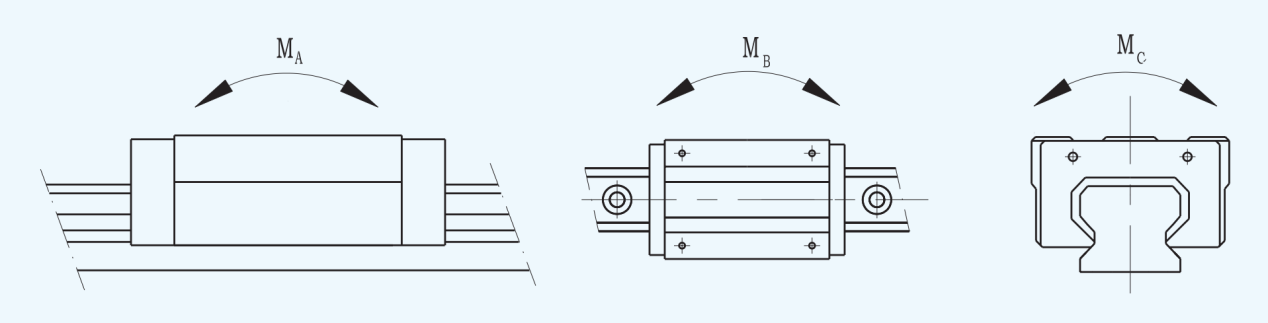

1). MA, MB and MC in the table, as shown in the figure below on the right, refer to the rated static moment value of a slider.
2). LMAX in the table is the maximum length of a guide rail. For example, the length of the guide rail is to be negotiated separately (it is recommended that the guide rail be installed with holes).
3). If there is no special requirement for a single guide rail, the distance between the hole end and the two ends should be evenly divided.
4).L1 size is the standard sealing form size, check the sealing form in detail.

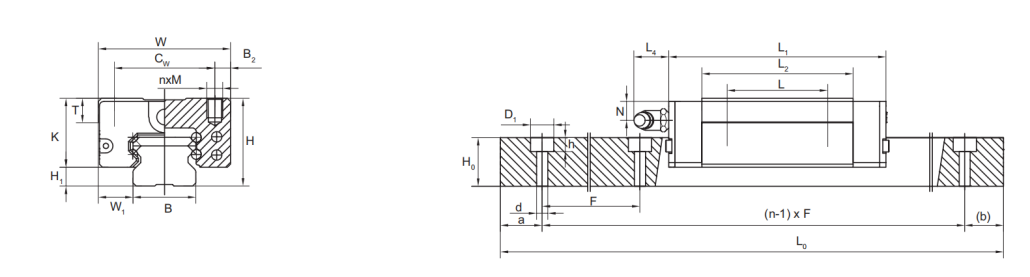

spec. | Dimension of | Dimension of block | Dimension of rail | Dimension of rail | Smalest | Dimension of oil cup | ynamic | Static load | Torque rating | Block | Rail | spec. | |||||||||||||||||
H | W₁ | K | W | L₁ | Cw | L | MXh, | T | B₂ | L₂ | H₁ | B | H₀ | dxD₁xh | F | Max single | a | L₄ | G | N | C (KN) | C。 (KN) | Ma (N ·m) | Mg (N ·m) | Ma (N ·m) | kg | kgm | ||
GLB15BAS | 24 | 9.5 | 19.7 | 34 | 40.1 | 26 | M4X6 | 6 | 4 | 23.1 | 4.3 | 15 | 12.5 4.5x7.5x5.3 | 60 | 4000 | 20 | 7 | M4 | 5.5 | 5.35 | 9.4 | 40 | 40 | 80 | 0.09 | 1.25 | GLB15BAS | ||
GLB15BA | 56.8 | 26 | 39.8 | 7.83 | 16.19 | 100 | 100 | 130 | 0.15 | GLB15BA | |||||||||||||||||||
GLB20BAS | 28 | 11 | 22.3 | 42 | 51 | 32 | M5X7 | 8 | 5 | 29 | 5.7 | 20 | 15.5 6x9.5x8.5 | 60 | 4000 | 20 | 14 | M6 | 6 | 7.23 | 12.74 | 60 | 60 | 130 | 0.15 | 2.08 | GLB20BAS | ||
GLB20BA | 70.1 | 32 | 48.1 | 10.31 | 21.13 | 160 | 160 | 220 | 0.24 | GLB20BA | |||||||||||||||||||
GLB25BAS | 33 | 125 | 26.8 | 48 | 59.5 | 35 | M6X9 | 8 | 6.5 | 35.5 | 6.2 | 23 | 18 7x11x9 | 60 | 4000 | 20 | 14 | M6 | 8 | 11.4 | 19.5 | 120 | 120 | 230 | 0.25 | 2.67 | GLB25BAS | ||
GLB25BA | 83 | 35 | 59 | 16.27 | 32.4 | 320 | 320 | 380 | 0.41 | GLB25BA | |||||||||||||||||||
GLB30BAS | 42 | 16 | 32 | 60 | 69.5 | 40 | M8X12 | 10 | 10 | 41.5 | 10 | 28 | 23 7x11x9 | 80 | 4000 | 20 | 14 | MG | 8 | 16.42 | 28.1 | 210 | 210 | 400 | 0.45 | 4.35 | GLB30BAS | ||
GLB30BA | 98.1 | 40 | 70.1 | 23.7 | 47.46 | 550 | 550 | 680 | 0.76 | GLB30BA | |||||||||||||||||||
GLB35BAS | 48 | 18 | 37 | 70 | 75 | 50 | M8X12 | 12 | 10 | 45 | 11 | 34 | 27.5 9x14x12 | 80 | 4000 | 20 | 14 | M6 | 8.5 | 22.66 | 37.38 | 310 | 310 | 560 | 0.66 | 6.14 | GLB35BAS | ||
GLB35BA | 108 | 50 | 78 | 33.35 | 64.84 | 690 | 690 | 980 | 1.13 | GLB35BA | |||||||||||||||||||
