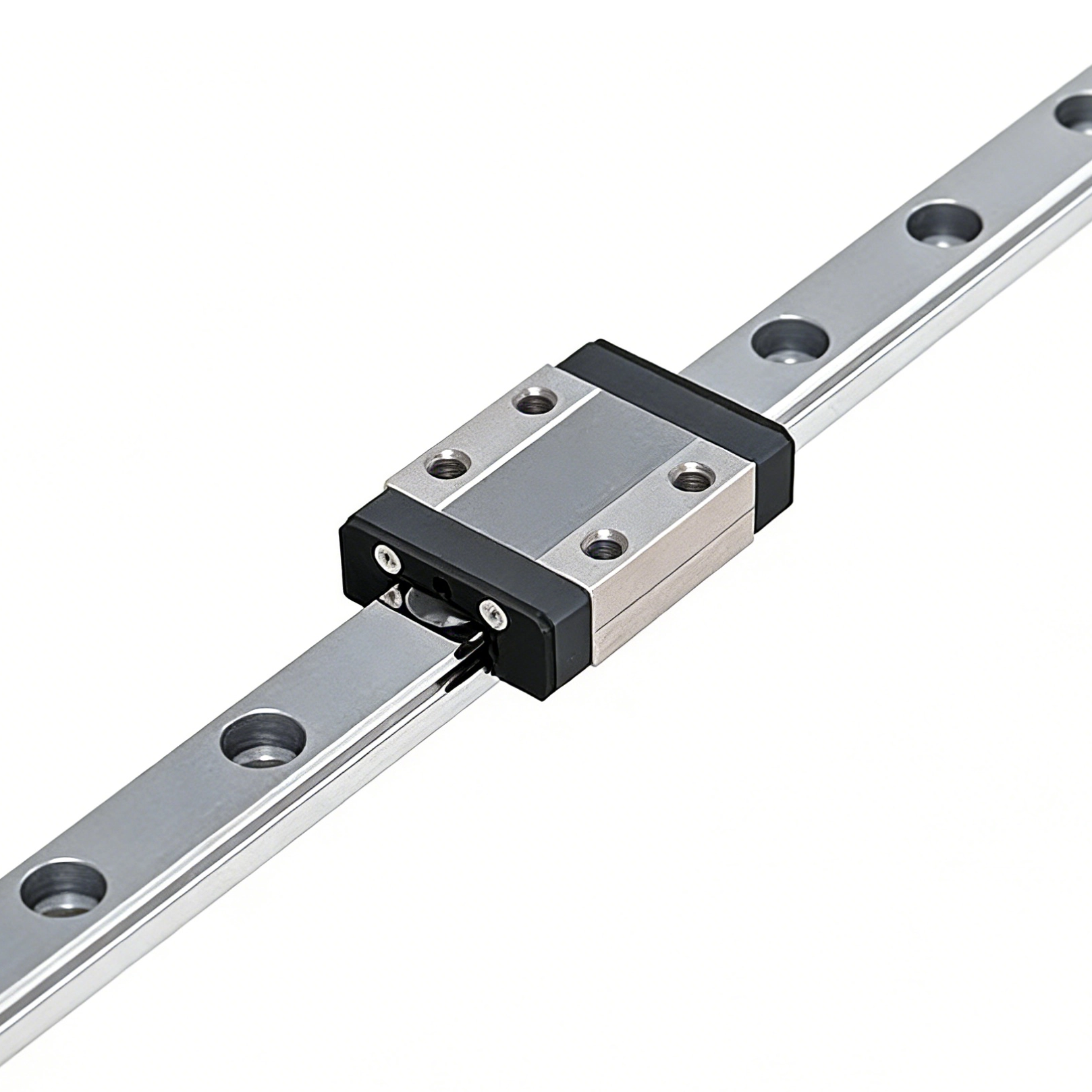

GGC Miniature Linear Guide |
GGC miniature linear guide adopts two-row ball cycle design, raceway design into a Gothic structure, its contact angle is 45°, in order to achieve the effect of four directions of equal load, through optimization design, under the limited space restrictions, the use of large size steel ball to improve the load capacity, fully show the function of high load and high torque.
1. Application
Semiconductor manufacturing devices, medical devices, optical platforms, inspection devices, EDM wire-cut machine tools, computer embroidery machinery

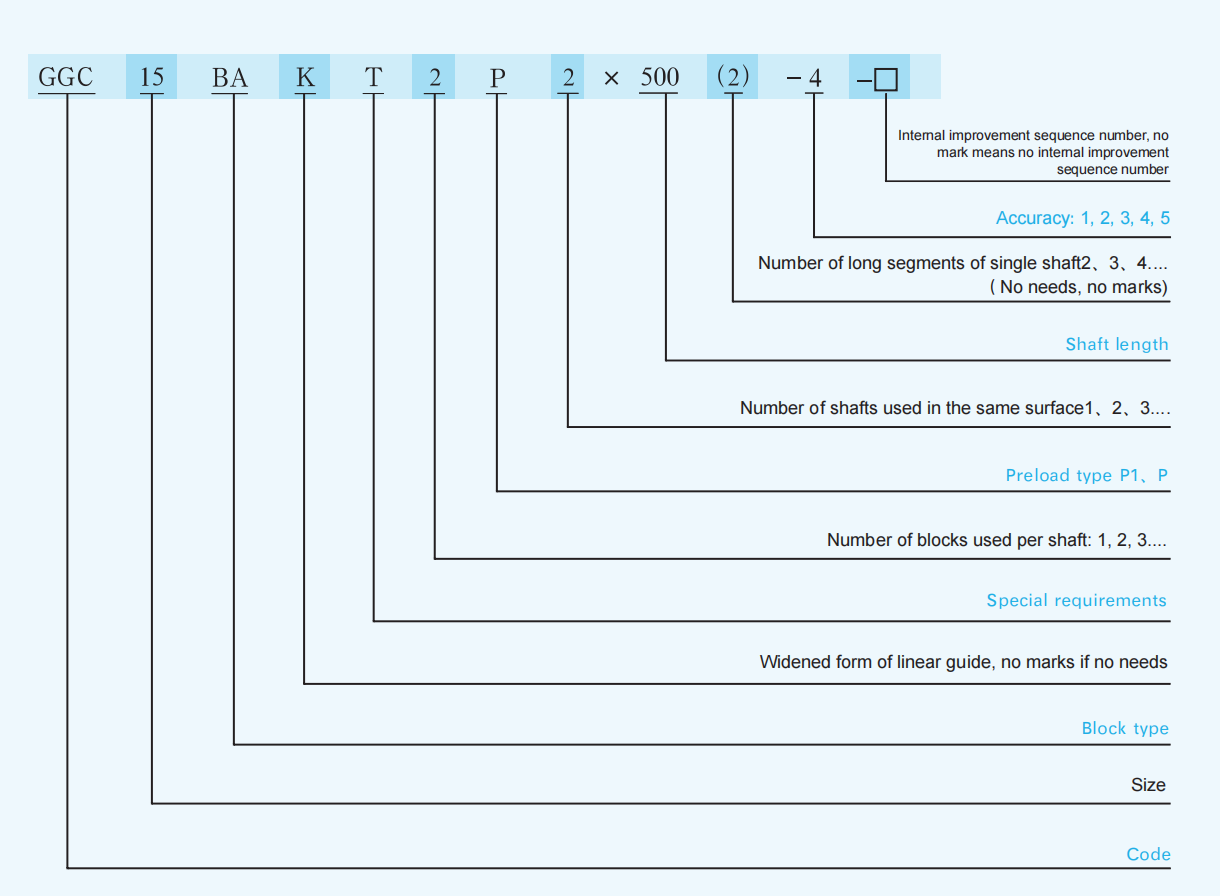

2. Numbering rules and meaning

3. Accuracy degree
No. | Sketch | Test Item | Tolerance | ||||
Shaft length (mm) | Accuracy (μm) | ||||||
2 | 3 | 4 | 5 | ||||
1 |

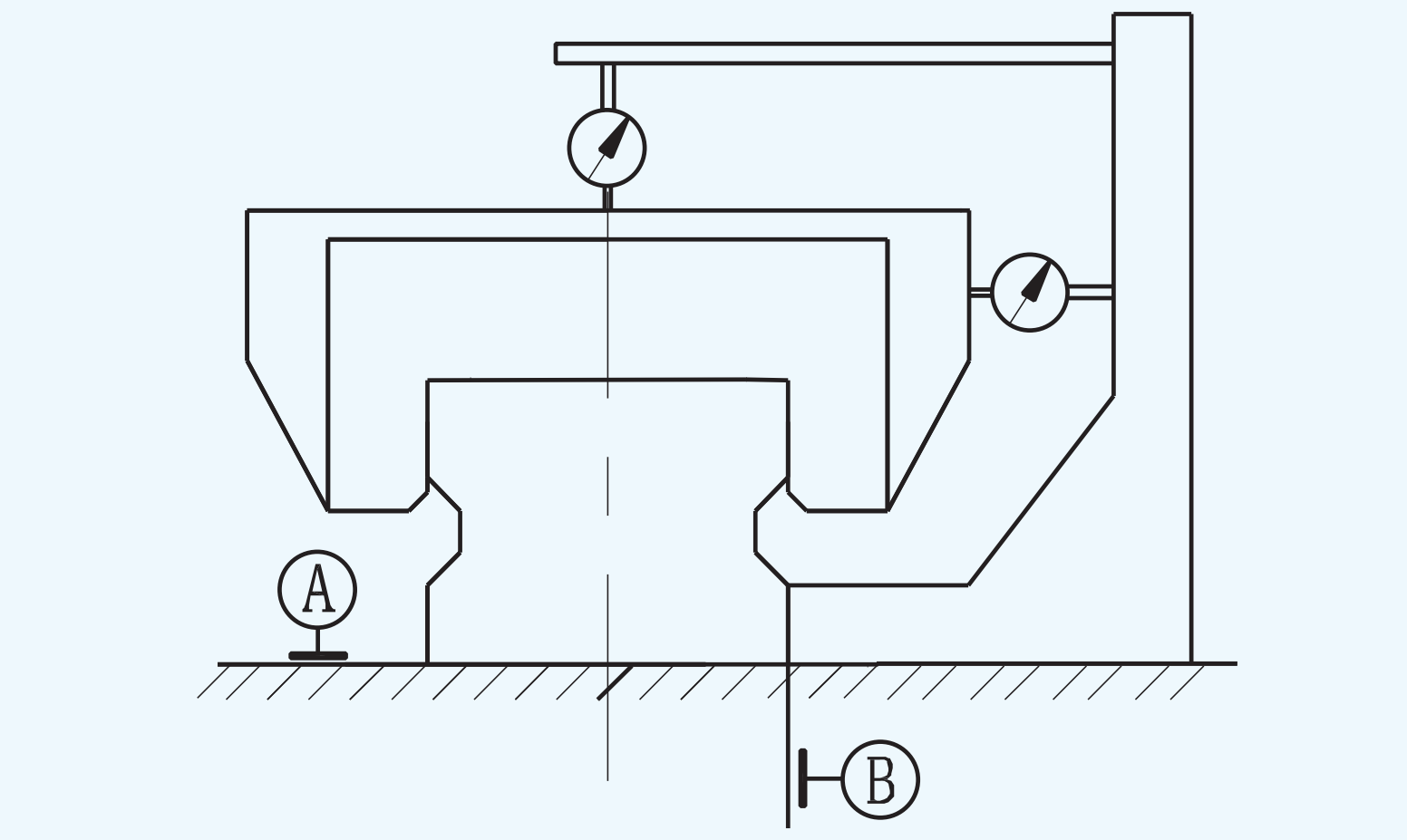

| The parallelism of the block movement to the datum surface of the shaft: | ≤100 | 2 | 3 | 7 | 13 |
>100~200 | 3 | 4 | 9 | 15 | |||
>200~300 | 4 | 5 | 10 | 17 | |||
>300~400 | 5 | 6 | 12 | 19 | |||
>400~500 | 6 | 8 | 14 | 20 | |||
2 |

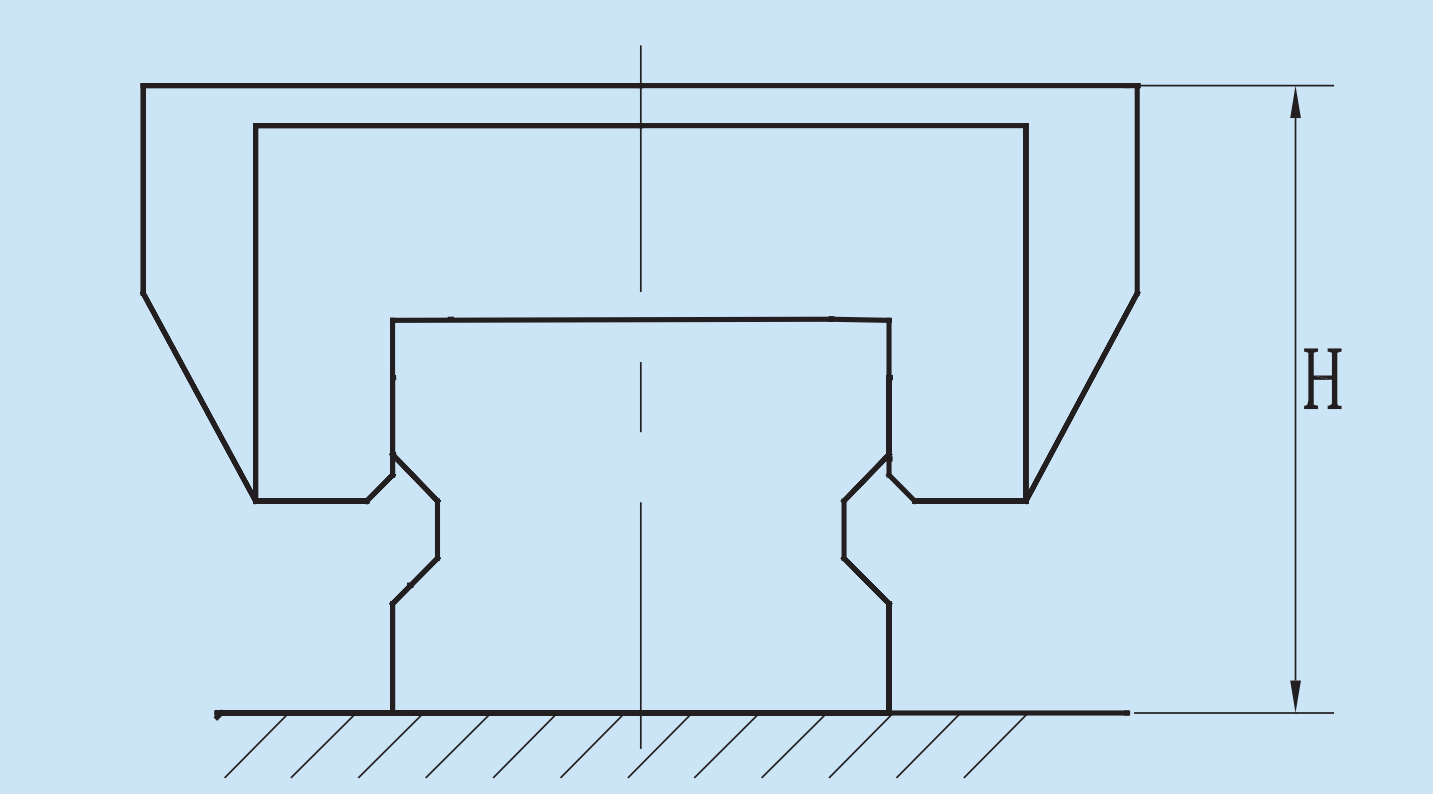

| The dimensional deviation between the top surface of the block and the height H of the base surface of the guide rail | Size | Accuracy(μm) | |||
7、9、12、15 | ±12 | ±20 | ±40 | ±80 | |||
3 |

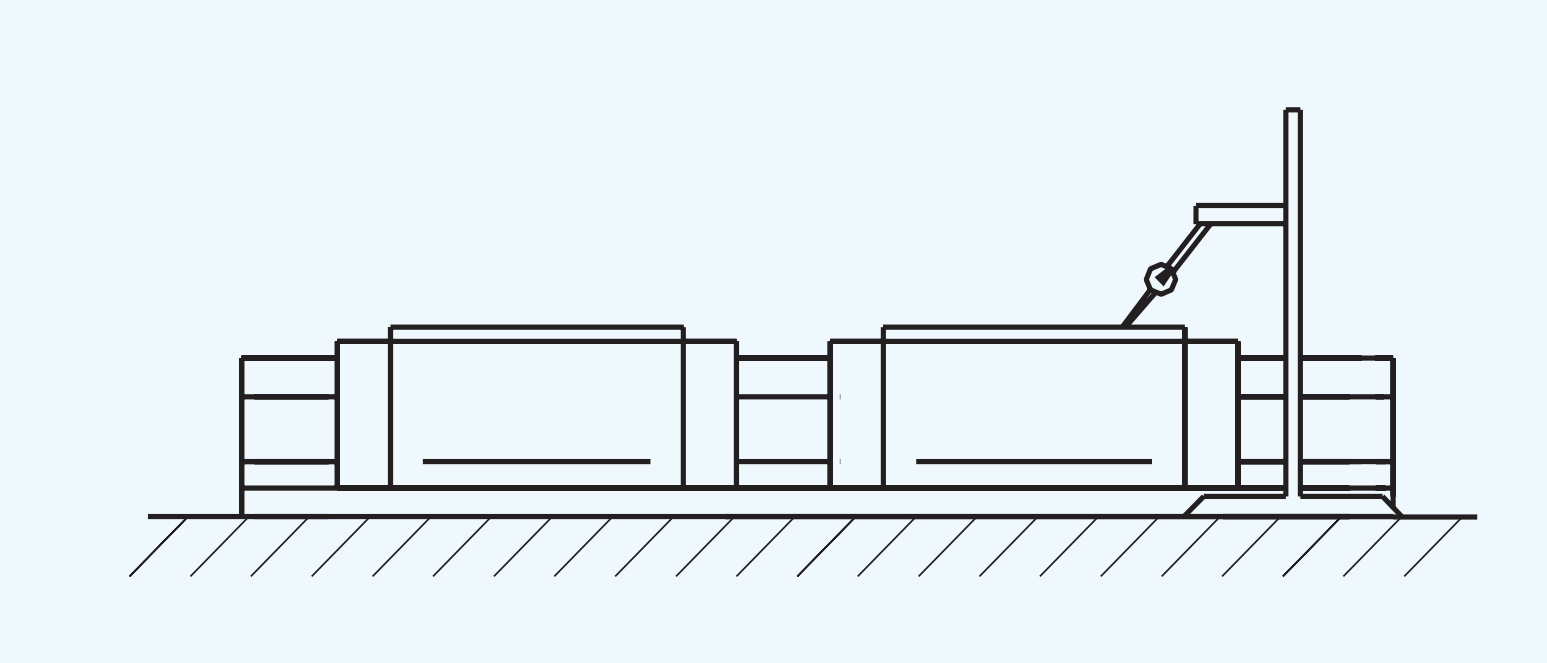

| The variation of the height H of the top surface of multiple blocks with the guide rail on the same plane | Size | Accuracy(μm) | |||
7、9、12、15 | 5 | 7 | 15 | 30 | |||
4 |

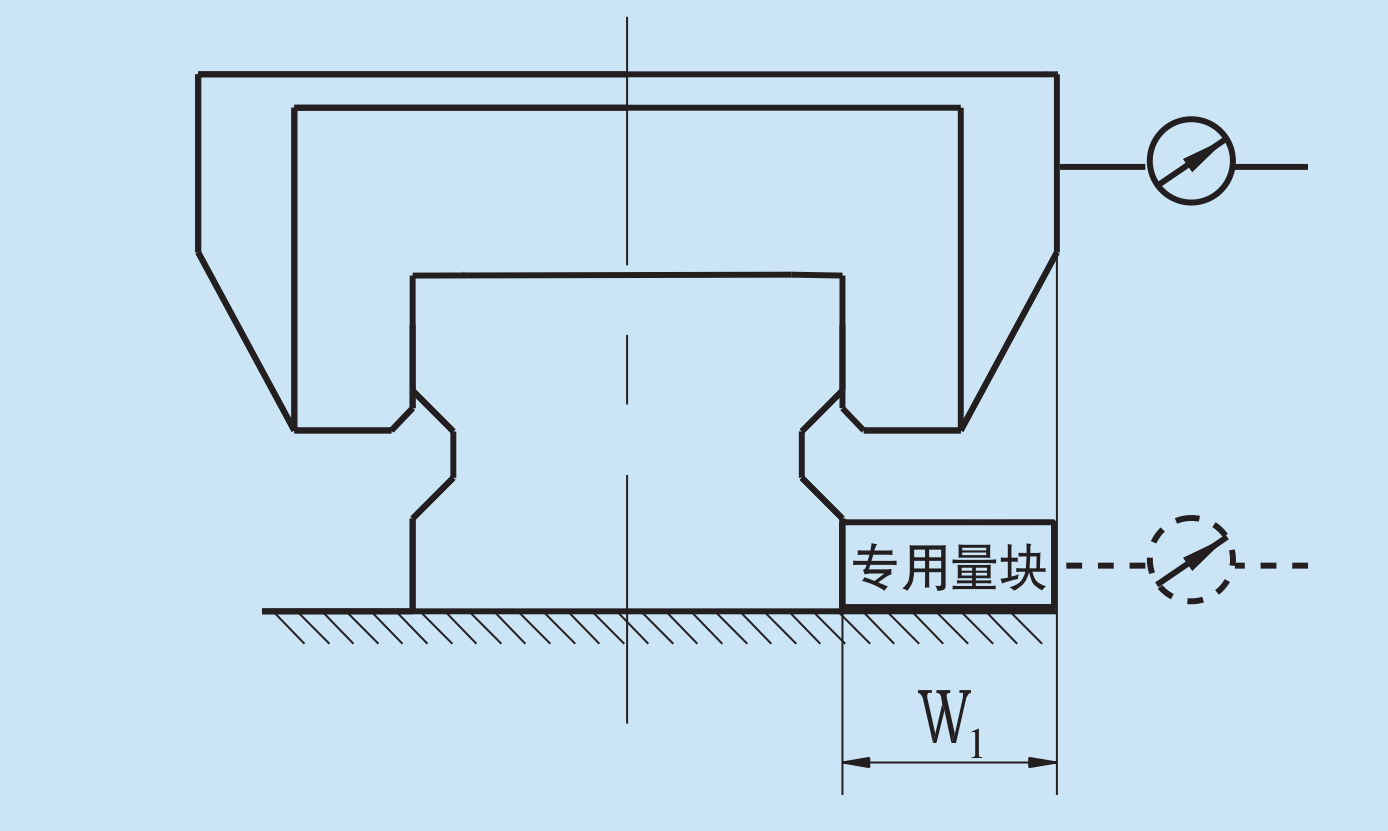

| Dimension deviation W1 of the distance between the top block and the guide side reference on the same side as the guide side reference (Reference guide only) | Size | Accuracy(μm) | |||
7、9、12、15 | ±10 | ±20 | ±40 | ±150 | |||
5 |

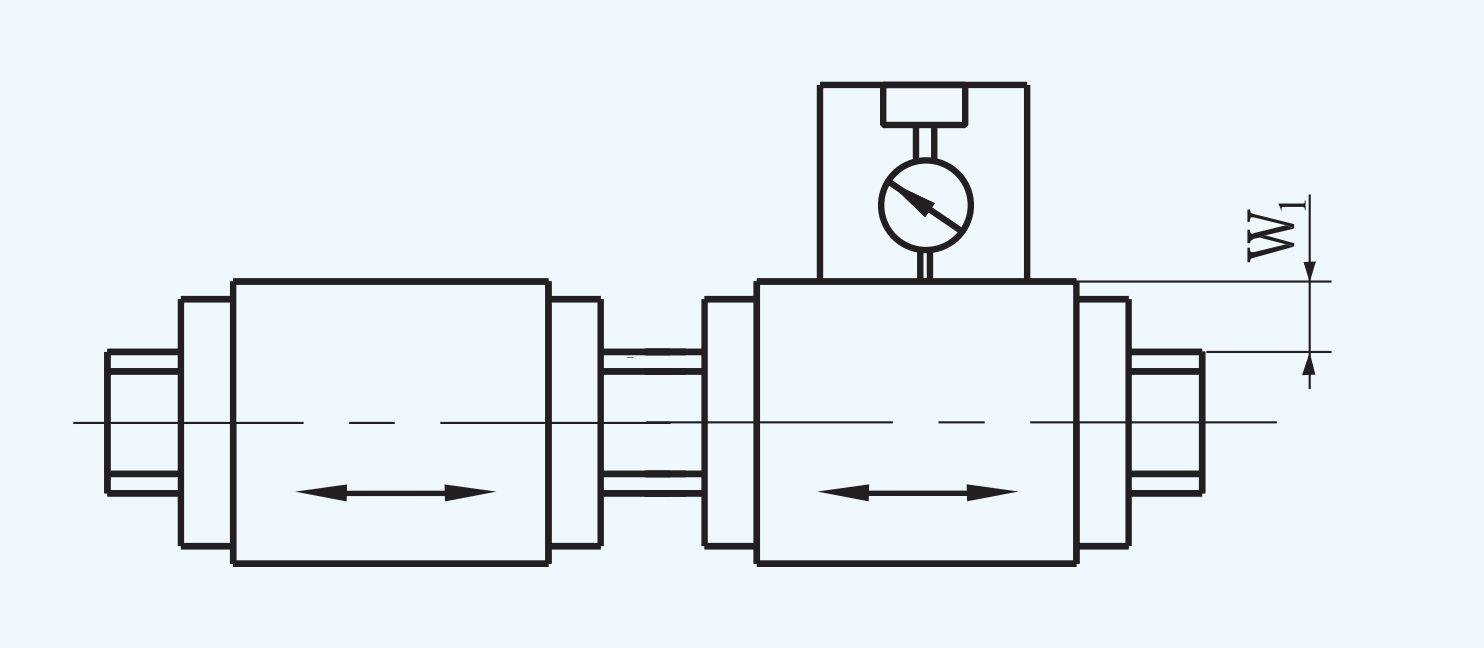

| Variation of reference W1 on multiple blocks and guide sides on the same guide rail (Suitable for reference guide only) | Size | Accuracy(μm) | |||
7、9、12、15 | 7 | 10 | 15 | 30 | |||
4. Preload type
Preload type | Application |
P1 Normal preload | High repetitive positioning accuracy is required |
P light preload | Movement light,transfer mechanism |
GGC Miniature Rolling Linear Guide |
Note:

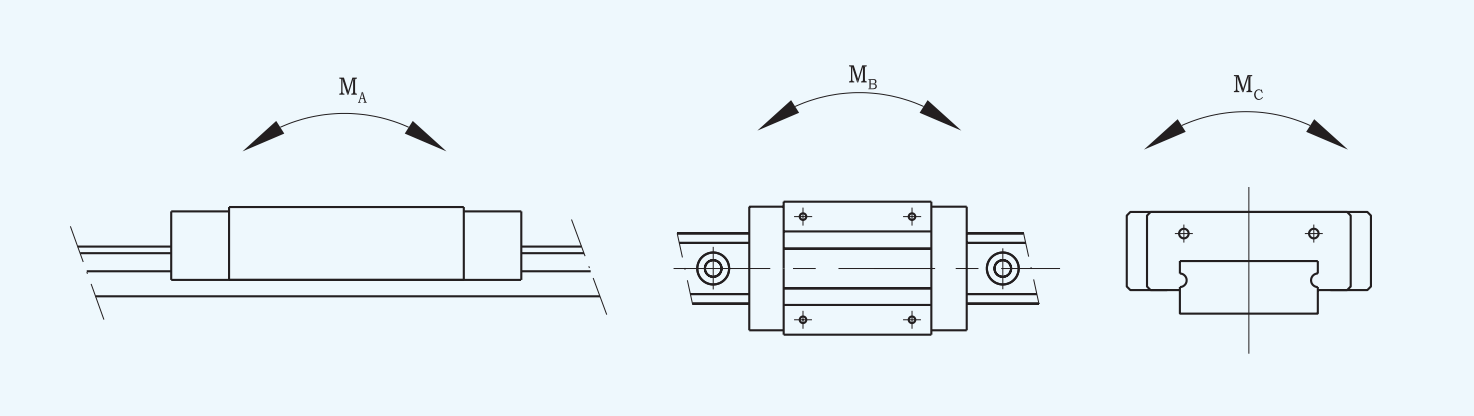

1). MA.MB.MC in the table, as shown in the figure below on the right, refers to the rated static moment value of a slider.
2). Lmax in the table is the maximum length of a guide rail. For example, the length of the guide rail is to be negotiated separately (it is recommended that the guide rail be installed with holes).
3). If there is no special requirement for a single guide rail, the hole end distance is equal to both ends.

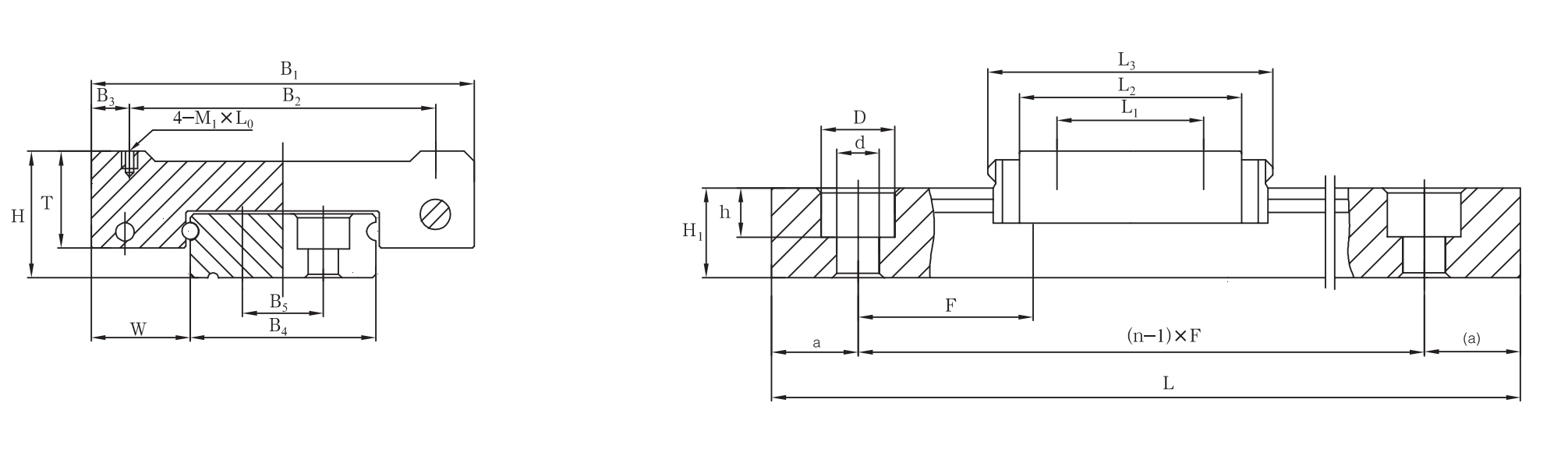

spec. | Dimension of assembly | Dimension of block Dimension of rail | Smales end | ynamic load | Static load | Torque rating | Bbck | Rail | spec. | |||||||||||||||
H | W | 入 | B₁ | L₃ | B₂ | L | M1×L0 | B₃ | L₂ | B₄ | H₁ | B₅ | dxDxh | F | a | C (KN) | Co (KN) | M_A (N ·m) | M_B (N ·m) | M. (Nm) | kg | kg/m | ||
GGC7BA | 8 | 5 | 6.5 | 17 | 22.5 | 12 | 8 | M2×2.5 | 2.5 | 13.5 | 7 | 4.8 | 0 | 2.4x4.2x2.3 | 15 | 5 | 0.97 | 1.24 | 2.84 | 2.84 | 4.7 | 0.01 | 0.22 | GGC7BA |
GGC9BA | 10 | 5.5 | 8 | 20 | 28.9 | 15 | 10 | M3x3 | 2.5 | 18.9 | 9 | 6.5 | 0 | 3.5x6×3.5 | 20 | 7.5 | 1.86 | 2.51 | 7.35 | 7.35 | 11.76 | 0.016 | 0.38 | GGC9BA |
GGC12BA | 13 | 7.5 | 10 | 27 | 34.7 | 20 | 15 | M3x3.5 | 3.5 | 21.7 | 12 | 8 | 0 | 3.5x6x4.5 | 25 | 10 | 2.84 | 3.89 | 13.72 | 13.72 | 25.48 | 0.034 | 0.65 | GGC12BA |
GGC15BA | 16 | 8.5 | 12 | 32 | 42.1 | 25 | 20 | M3x4 | 3.5 | 26.7 | 15 | 10 | 0 | 3.5x6x4.5 | 40 | 15 | 4.6 | 5.53 | 21.56 | 21.56 | 45.08 | 0.059 | 1.06 | GGC15BA |
GGC7BAK | 9 | 5.5 | 7.1 | 25 | 31.2 | 19 | 10 | M3x3 | 3 | 21 | 14 | 5.2 | 0 | 3.5x6x3.2 | 30 | 10 | 1.36 | 2.06 | 7.14 | 7.14 | 15.7 | 0.02 | 0.51 | GGC7BAK |
GGC9BAK | 12 | 6 | 9.1 | 30 | 39.3 | 21 | 12 | M3x3 | 4.5 | 27.5 | 18 | 7 | 0 | 3.5x6x4.5 | 30 | 10 | 2.76 | 4.12 | 18.96 | 18.96 | 40.12 | 0.04 | 0.91 | GGC9BAK |
GGC12BAK | 14 | 8 | 10.6 | 40 | 46.1 | 28 | 15 | M3x3.6 | 6 | 31.3 | 24 | 8.5 | 0 | 4.5x8x4.5 | 40 | 15 | 3.91 | 5.53 | 27.8 | 27.8 | 70.34 | 0.071 | 1.49 | GGC12BAK |
GGC15BAK | 16 | 9 | 12.6 | 60 | 54.8 | 45 | 20 | M4×4.2 | 7.5 | 38 | 42 | 9.5 | 23 | 4.5X8x4.5 | 40 | 15 | 6.76 | 9.21 | 56.66 | 56.66 | 199.34 | 0.143 | 2.86 | GGC15BAK |
