Precision machining relies entirely on the rigidity and repeatability of the machine's axis movement. The choice of linear guide dictates the baseline limits for cut depth, rapid travel speeds, and surface finish quality. Selecting the wrong guideway system leads to destructive chatter, accelerated tool wear, or catastrophic mechanical failure under heavy dynamic loads. Conversely, over-specifying guideways results in wasted budget and unnecessarily complex installation requirements.
This engineering evaluation breaks down the structural differences between Box Ways, Profile Rails, and Round Guides. We provide an evidence-based framework for specifying motion components based on material density, machine rigidity, and total cost of ownership. You will learn to calculate load limits, evaluate preload classes, and understand the thermal dynamics of rolling friction. Proper component evaluation guarantees your machine base handles targeted production metrics without transferring destructive vibration directly into the workpiece.
Application Dictates Architecture: Box ways offer superior vibration dampening for roughing hard metals, while linear guide rails maximize rapid speeds and reduce cycle times for aluminum and plastics.
Square vs. Round Tolerances: Square profile rails (HGR) deliver sub-thousandth inch accuracy but demand perfectly milled mounting surfaces; round rails (SBR) are older, more forgiving technology capable of spanning physical gaps.
Preload is Critical: The correct factory preload class eliminates backlash and maintains rigidity during high-feed cuts, whereas insufficient preload allows vibration transmission (chatter) throughout the CNC cutting machine.
Procurement Realities: For high-end DIY builds or retrofits, sourcing verified used industrial guides (e.g., Bosch Rexroth, THK) frequently offers better ROI and longevity than purchasing low-cost, unverified domestic clones.
Box ways are rectangular structural guides cast directly into the heavy iron machine bed. They utilize sliding friction to move heavy machine components across a continuous oil film. This architecture provides an exceptionally large surface contact area that spreads massive cutting forces over a broad geometric footprint. The massive contact area excels at vibration transmission dampening, making the system highly resistant to tool chatter even under extreme loads.
Engineers deploy box ways strictly for heavy-duty roughing applications. They dominate environments machining titanium, tungsten, or high-hardness alloy steel. The inherent damping characteristics easily absorb the extreme shock loads generated by interrupted cuts. This absorption prevents structural resonance from shattering carbide cutting tools prematurely. When a shop needs to plunge a large indexable endmill deep into cast iron, box ways provide the unyielding backbone required for the operation.
However, box ways carry significant mechanical and financial drawbacks. Manufacturers must utilize expensive, highly skilled hand-scraping techniques during assembly. Technicians manually scrape the iron casting to achieve precise contact points, often requiring up to ten bearing points per square inch. This system demands constant, flawless oil film maintenance. You must frequently adjust mechanical gibs to maintain tight geometric tolerances. Furthermore, the reliance on sliding friction dictates significantly slower rapid travel speeds, which aggressively increases total cycle times in high-volume production environments.
These modern systems utilize rolling friction instead of sliding friction. Bearings circulate continuously within an integrated track layout. The architecture consists of three core components: the fixed rail base mounted to the casting, the sliding carriage block, and the internal rolling elements utilizing either balls or rollers. A linear guide rail drastically reduces frictional resistance. While a box way exhibits a friction coefficient of 0.1 to 0.2, rolling elements drop this coefficient to approximately 0.002.
This microscopic friction eliminates the sticky, energy-wasting stick-slip phenomenon. It allows modern machines to execute extremely high rapid speeds, often exceeding 1,200 inches per minute. Rolling friction eliminates the need for manual clearance adjustments and removes hand-scraping labor costs entirely. High-speed machining (HSM) relies heavily on these systems to perform light, rapid passes in aluminum, plastics, and low-yield steel.
Implementation carries specific mechanical risks regarding resonance. Rolling elements isolate friction perfectly, but they do not absorb vibration well. If you mount them to a lightweight or poorly designed chassis, problems cascade quickly. They will transfer vibration directly from the spindle into the workpiece, severely degrading surface finish quality. Your base casting must possess sufficient mass to handle the dampening that the guide components lack.
Many modern machine tool builders combine both technologies within a single structural chassis. This hybrid system aims to balance extreme heavy cutting rigidity with rapid point-to-point speed. No single motion technology solves every machining variable perfectly. Engineering a hybrid approach optimizes the specific force vectors acting on each individual machine axis.
The configuration logic applies specific components to specific force loads. Builders deploy heavy-duty box ways on the machine's Z-axis. The vertical spindle assembly bears the absolute brunt of plunging forces and heavy drilling thrust. The box way absorbs these primary vertical shock loads effectively. Meanwhile, builders utilize rolling guideways on the horizontal X and Y axes. This arrangement maintains high rapid positioning speeds between cutting paths. It is absolutely essential for fluid, simultaneous movement in a Five-axis CNC machine where tool center point control requires instant, frictionless directional changes.
Round rails represent a foundational motion technology utilizing a hardened cylindrical steel shaft paired with circulating ball bearings inside a pillow block. They provide an even, annular contact patch. Straightness accuracy generally peaks around 0.01 inches per ten feet of travel length, making them suitable for general positioning tasks but inadequate for high-precision milling.
Installation requirements remain highly forgiving. Round shafts easily accommodate looser alignment tolerances caused by warping in welded steel frames. You can also end-support them using shaft collars. This allows the rail to bridge physical air gaps without requiring continuous machine bed support beneath the entire travel length. Miniature versions of this technology remain highly compact, making them ideal for electronics assembly machines, 3D printers, and delicate medical devices.
They offer unique environmental advantages in harsh environments. The cylindrical geometric shape naturally sheds chips, dust, and abrasive shop debris. Gravity forces contaminants to fall away from the contact surfaces. They are significantly less prone to seizing in dirty environments compared to modern profile designs that act as gutters for debris.

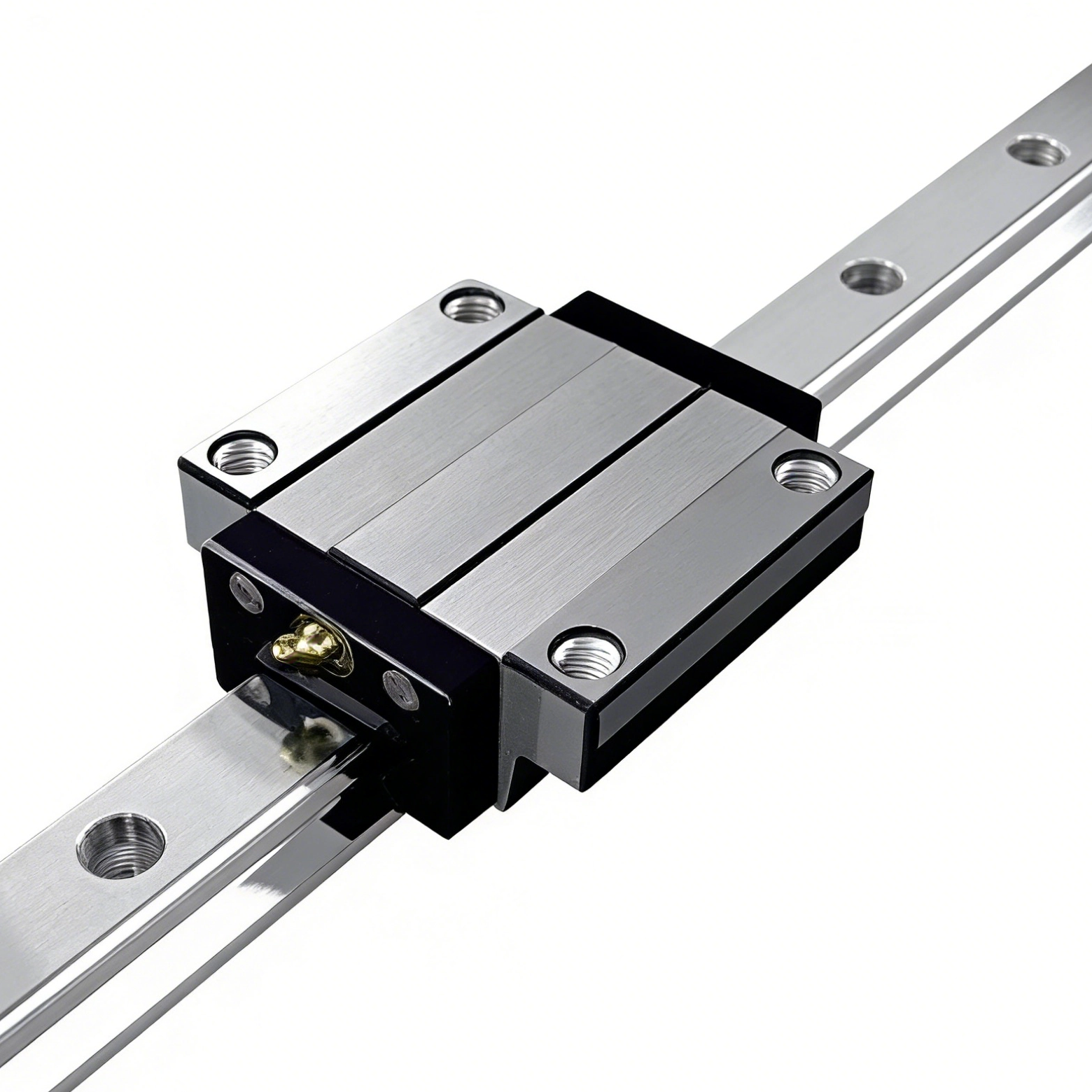

Square profile guides represent a highly optimized engineering design. They feature a precision-machined rectangular track with internal raceways. The geometry delivers a significantly higher surface contact area for the internal rolling elements. This contact patch provides vastly superior torsional stiffness. It actively resists multi-directional deflection loads, twisting forces, and moment loads far better than SBR systems.
They achieve straightness accuracies between 0.0002 to 0.001 inches depending on the precision class selected. Upgrading a linear rail to a heavy-duty profile design unlocks immediate rigidity improvements for industrial milling. The internal raceways utilize either a Gothic arch design, providing precise four-point contact, or a circular arc design for two-point contact that tolerates minor mounting deviations.
Installation demands absolute structural precision. Profile guides require a continuously machined, perfectly flat baseline mounting surface. You must mill datum reference edges onto your cast iron or steel frame. Any deviation in bed parallelism causes the rail to bind, immediately overloading the bearings and destroying the block. As global manufacturing scales, costs have plummeted. Consequently, for new flat-bed builds, SBR is largely obsolete unless physical gap-spanning is strictly required by the design architecture.
Review the specific operational differences before finalizing your engineering bill of materials. The data table below illustrates the primary mechanical trade-offs between the two distinct architectures.
| Specification Metric | Round Shaft Rails (SBR) | Square Profile Rails (HGR) |
Base Cost & Sourcing | Highly economical. Easily sourced globally. | Medium to High. Clones offer budget alternatives. |
Load Capacity & Stability | Low lateral and torsional deflection stability. | Exceptionally high multi-directional rigidity. |
Mounting Requirements | Highly forgiving. Supports gap-spanning designs. | Strict. Requires perfectly milled and supported base. |
Maintenance Profile | Low sensitivity to ambient cutting debris. | High sensitivity. Requires strict sealing and scraping. |
Friction Contact Geometry | Single point contact friction on a round shaft. | Optimized Gothic arch or circular arc raceways. |
The internal rolling elements define the ultimate load capacity and thermal behavior of the carriage block. Ball bearings utilize microscopic point-contact friction. They roll effortlessly across the steel raceway with minimal surface engagement. They are best suited for high-speed, light-to-medium dynamic loads. Engineers prioritize spherical balls when minimal friction, rapid acceleration, and low heat generation remain the primary operational goals.
Roller bearings utilize cylindrical or tapered steel rollers instead of spheres. They create a continuous, broad line-contact against the linear guide track. This geometric shift radically increases absolute structural rigidity. It vastly expands heavy-load carrying capacity and severely limits microscopic deflection. Roller variants represent the undisputed standard for heavy industrial CNC milling. They resist compression under severe shock loads, maintaining tool position perfectly during aggressive roughing operations.
Engineers do not guess when sizing mechanical components. They evaluate specific mathematical load ratings provided by manufacturers. The Dynamic Load (C) dictates operational lifespan. It represents the constant equivalent load a system can endure while achieving a specific travel distance. Manufacturers usually baseline this rating at 50 kilometers of travel for balls and 100 kilometers for rollers.
The Static Load (C0) represents absolute structural limits before failure. It is the maximum stationary load or sudden impact force the rail can sustain. Exceeding the C0 limit causes permanent plastic deformation. It indentations the raceway or flat-spots the rolling elements, permanently ruining the smooth travel action. You must calculate rigorous safety factors. Compare your actual application loads, including peak cutting forces, spindle mass, and acceleration vectors against these specific catalog ratings to avoid premature destruction.
Preload represents intentional internal tension within the carriage block. Manufacturers achieve this by installing slightly oversized rolling elements into the precision raceway. This physical interference eliminates mechanical play entirely. It eradicates backlash during axis reversal and increases system rigidity without relying on manual, error-prone adjustments like traditional gibs.
You must apply strict selection frameworks when ordering blocks. Manufacturers offer distinct preload classes such as Z0 (clearance), ZA (medium preload), and ZB (heavy preload). High-rigidity machine tools cutting steel require ZA or ZB heavy preload classes. Heavy preload actively resists vibration and cutter deflection during heavy metal removal. High-speed automation handling systems require Z0 light preload or clearance fits. Light preload prevents excessive friction, localized overheating, and premature motor wear during rapid linear travel.
Industrial motion components use the standard L10 rating system to predict mechanical failure. The L10 rating represents a statistical survival distance. It dictates the exact operating distance that ninety percent of a given batch of identical blocks will complete under a specific load. It measures the operational baseline before the first microscopic signs of metal fatigue or flaking appear on the internal raceways.
Direct variables modify this theoretical lifespan in real-world shops. High operating temperatures drastically alter grease viscosity, breaking down the necessary oil film layer. Material hardness requirements, typically measured in HRC ratings (ideally HRC 58-62), dictate surface wear resistance. Short, high-frequency stroke lengths prevent proper internal grease circulation, leading to localized fretting. Engineers mathematically adjust the baseline L10 formula using specific environmental modifiers to predict accurate maintenance intervals.
Procurement choices directly dictate long-term machine reliability. Tier one OEM brands include Hiwin, THK, NSK, and Nanjing Gongyi. They require a very high upfront capital expenditure, frequently exceeding five hundred dollars per single carriage block. However, OEMs guarantee their L10 rated life calculations. They deliver exact factory preload specifications and employ rigorous metallurgical quality control that prevents catastrophic failures.
Low-cost clones flood the modern hardware market. Their manufacturing quality remains highly inconsistent. Common defects include oxidized rails straight from the factory floor. Many clone blocks arrive with missing bearing balls or exhibit rough, binding movement out of the box. They are viable only for low-tolerance wood-cutting hobby routers. They fail quickly where strict tolerances and high dynamic spindle loads are required.
Environmental Vulnerabilities and Maintenance
Profile guides suffer from serious contamination vulnerabilities. They utilize semi-enclosed tracks that act as natural gutters on a horizontal plane. They are highly sensitive to metal shavings, fine cast-iron dust, and chemical coolant ingress. If hard chips bypass the wiper seals and enter the recirculation circuit, the block will seize violently, destroying both the bearings and the rail surface.
You must deploy aggressive mitigation strategies based on your shop environment. In harsh machining environments, specify the system with robust double-lip wiper seals (DD). Install heavy-duty metallic scrapers (ZZ) on the block ends to deflect hot chips. For extreme airborne dust environments, specify caged bearing designs. The resin cage prevents ball-to-ball friction and retains lubrication longer. In high-humidity or caustic environments, utilize stainless steel blocks or deploy hard chrome-plated rails to prevent destructive surface oxidation.
Avoid the common DIY upgrade fallacy. Upgrading from cheap V-wheels or SBR round rails to rigid HGR profile blocks on a lightweight chassis solves absolutely nothing. It will not automatically increase your depth of cut in steel. Rolling elements isolate sliding friction perfectly, but they do not dampen structural vibration. Mounting high-end linear guides to a non-rigid frame, like thin aluminum extrusion, simply amplifies resonance. Your CNC cutting machine frame will vibrate uncontrollably during heavy milling, destroying the cutting tool.
You must measure true return on investment objectively using practical machining metrics. Do not judge mechanical success by free-movement smoothness alone. Quantify an upgrade by pushing the spindle to its limit. Measure the deepest continuous cut in one single pass the spindle achieves without generating audible chatter. Test this capability across progressively harder materials. Start with softwood, progress to cast acrylic, test 6061 aluminum, and finally evaluate performance in low-carbon steel.
Follow these specific actionable steps to finalize your guideway specification and ensure a successful machine build:
Audit your machine base casting to ensure it possesses sufficient mass to dampen aggressive vibration before installing high-rigidity profile blocks.
Calculate your required maximum static (C0) and dynamic (C) loads by mapping peak cutting thrust forces against spindle horsepower and gantry mass.
Select the exact factory preload class (Z0, ZA, or ZB) required for your target workpiece material to prevent cutter deflection during aggressive toolpaths.
Deploy robust metallic scraper seals and specify caged bearing blocks if your operational environment involves heavy cast-iron dust or continuous flood coolant exposure.
A: The terms are practically interchangeable in the industry. A "linear rail" refers specifically to the stationary track itself, while a "linear guide" refers to the complete motion system encompassing both the hardened rail and the sliding carriage block assembly.
A: Not inherently. Square (profile) guides offer vastly higher rigidity and accuracy for CNC cutting machines. However, round shaft guides are significantly more forgiving regarding installation alignment, excel in environments with heavy abrasive debris, and effectively span physical gaps without continuous support.
A: Size is dictated strictly by your required static (C0) and dynamic (C) load capacities. You must multiply these mathematical loads by a safety factor based on the materials you are cutting. HGR15 to HGR25 block sizes serve as common starting points for desktop machines cutting iron and steel.
A: Preload is the intentional internal mechanical tightness created by the manufacturer using slightly oversized ball bearings. It eliminates physical play and increases baseline rigidity to prevent tool chatter during aggressive machining, removing the need for manual gib adjustments entirely.
A: Square profile rails strictly cannot; mounting them on an uneven surface causes internal binding and rapid mechanical failure. Conversely, round shaft rails tolerate slight misalignments and uneven mounting surfaces much more effectively due to their single-point contact geometry.
A: Hybrid systems combine the superior vibration-dampening qualities of traditional Box Ways on the heavy-cutting Z-axis, while utilizing high-speed linear guide rails on the horizontal X and Y axes. This setup maintains rapid positioning speeds to drastically reduce overall production cycle times.
A: Lubrication intervals depend on the L10 life rating, payload, and travel speed limits. While they require less maintenance than Box Ways, linear guides must maintain a consistent grease or oil film to prevent raceway spalling. Caged bearing designs help extend these maintenance intervals significantly.
