Many automation lines reach a transfer-system limit before any process station reaches capacity. Belt, chain, dial, pallet, and straight-line systems can add footprint, maintenance, backlash, or indexing constraints. Buyers therefore need a circular transfer solution that maintains repeatability, rigidity, and takt stability without overengineering the machine.
A Rolling Arc Guide becomes a practical candidate when the carrier must act as the process datum. It also has to circulate through compact arc and straight sections. The decision should not rest on catalog speed, load, or “maintenance-free” claims. It should rest on payload mass, offset moment, contact geometry, positioning method, control architecture, installation tolerance, and service access.
It also separates real production variables from headline ratings, so procurement, engineering, and maintenance teams can approve the same risk model. That shared model reduces late changes and unclear acceptance criteria.
A Rolling Arc Guide is strongest where compact recirculating motion, repeatable positioning, and multi-station integration matter more than simple point-to-point transport.
The most important evaluation factors are rigidity under real moment loads, repeatability at each station, contamination resistance, control strategy, and ease of alignment during installation.
A Precision Rolling Arc Guide should be sized using actual payload, fixture mass, offset moments, acceleration, duty cycle, required life, and installed tolerance stack-up—not catalog load numbers alone.
Circular-arch rolling contact can support smoother motion than higher-friction four-point contact designs, but geometry, preload, lubrication, and alignment still decide real production performance.
The best Rolling Arc Guide supplier or manufacturer will provide load calculations, C50/L10 life assumptions, tolerance guidance, commissioning support, lubrication rules, and evidence of long-term serviceability.

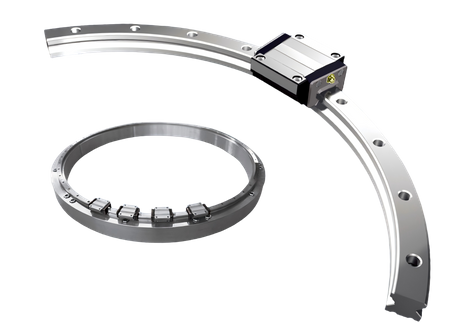

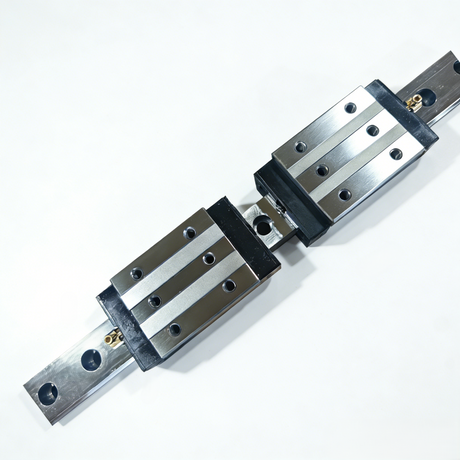

A Rolling Arc Guide combines straight rail sections and curved rail sections into a closed loop. Carriers, shuttles, or pallets travel around that loop in continuous, indexed, or mixed motion. The guide does more than move parts. It constrains the carrier, supports load, and keeps the process datum stable through the route.
Rolling contact reduces friction compared with sliding systems. That lower resistance helps the carrier pass through straight sections, curves, station stops, and arc-to-straight transitions more smoothly. Some designs use non-recirculating rolling elements, where available travel may be limited by element movement. Others use recirculating ball or roller paths, which allow longer continuous circulation.
That distinction affects speed, load capacity, wear, lubrication, and service life. It also affects how well the line can support buffering, carrier return, and multi-station sequencing.
Contact geometry affects drive force, heat, preload sensitivity, and repeatability. Two common concepts appear in rolling guide design:
Gothic-arch contact: four-point contact, high load potential, higher friction, and greater sensitivity to preload.
Circular-arch contact: two-point contact, smoother rolling behavior, and lower running resistance when matched to the load case.
Circular-arch contact can improve smoothness during high-duty movement. It can also reduce motor sizing pressure and current spikes. Geometry alone still does not decide performance. Rail hardness, surface finish, bearing quality, preload, lubrication, and alignment must work together.
Circular guide rail systems fit compact automation cells where station-level repeatability matters. Typical applications include:
Assembly loops with repeated workstations.
Inspection, dispensing, labeling, welding, fastening, and packaging cells.
Electronics, medical device, small appliance, and automotive component automation.
Precision parts handling with recirculation, buffering, or dynamic sequencing.
Layouts that need automatic carrier return without a separate conveyor level.
Procurement teams should define real production targets before comparing quotes. Required inputs include takt time, motion profile, station accuracy, payload, fixture mass, center-of-gravity offset, process force, allowed footprint, cleanliness, noise, maintenance window, and expected operating life.
Control requirements should also be clear. Fixed-pitch indexing, independent shuttle control, buffering, and dynamic timing adjustment create different mechanical and software demands.
Belt conveyors suit basic transport, accumulation, and low-precision movement. They are economical and simple. Their weakness appears when the carrier must stop repeatably or resist process force. A Rolling Arc Guide is stronger when the carrier becomes part of the process datum. The trade-off is higher initial cost and stricter installation discipline.
Chain and pallet systems handle rugged transport and long line lengths. They may tolerate rougher service at lower cost. They can also add backlash, lubrication points, wear, and station locating hardware. Rolling guide circulation usually provides cleaner movement, lower backlash, and tighter carrier control. Buyers should compare downtime risk and maintenance labor, not only system price.
Rotary indexing tables are strong in fixed-pitch, fixed-sequence processes. They can be simple and repeatable. Their weakness appears when station count changes, dwell times vary, or product families expand. A circular guide rail system can support variable dwell, bypass logic, buffering, and independent shuttle timing. A dial may still win when every station always moves together.
Round guides are usually lower cost and more tolerant of installation error. They fit moderate precision and rigidity requirements. Square or profile rails offer higher rigidity, larger contact area, and stronger torsional resistance. They also require tighter mounting accuracy.
A circular rail system should not be judged by straight-guide ratings alone. Curves add moment loads, transition loads, carrier spacing constraints, and frame stiffness demands.
Self-aligning systems help when the frame has controlled misalignment. V-wheel systems can support frequent motion and debris tolerance when rail surfaces are designed correctly. Dovetail guides provide sliding contact and shock resistance. Crossed-roller guides deliver high rigidity in limited-stroke precision axes. These options may solve local station-axis motion, while a Rolling Arc Guide solves carrier circulation.
| Architecture | Best Fit | Main Strength | Main Limitation |
Rolling Arc Guide | Compact circular automation | Repeatable guided motion through curves and stations | Needs careful sizing, alignment, and service planning |
Belt conveyor | Basic transport and accumulation | Low cost and simple layout | Limited station-level repeatability |
Chain or pallet conveyor | Rugged longer lines | Durability in rougher service | Backlash, wear, and extra locating needs |
Rotary index table | Fixed-pitch processes | Simple timing and repeatable indexing | Limited expansion and variable dwell control |
Profile rail | Straight precision axes | High rigidity and load support | Not a direct substitute for curved circulation |
A Precision Rolling Arc Guide should be evaluated as an installed system. Rail machining, carriage quality, preload, contact geometry, and joint transitions all affect accuracy. Servo motion may provide the initial stop. Pneumatic side cylinders, pins, stops, mechanical locators, or servo clamps may provide secondary positioning.
Reference values such as initial positioning near ±0.01 mm and adjusted repeat positioning near ±0.05 mm can be useful. The supplier must define what is measured. The value may describe rail accuracy, shuttle stop accuracy, carrier repeatability, or process-point repeatability under load.
A High Rigidity Rolling Arc Guide becomes important when the carrier sees pitch, yaw, roll, or process-side force. Payload weight alone is not enough. Screwdriving, press-fit work, welding, probing, dispensing, and vision inspection may create loads that exceed simple transfer assumptions.
Buyers should review moment ratings, carriage spacing, bearing block arrangement, preload, rail support, fastener pattern, base flatness, and frame stiffness. Weak support can erase the value of a premium guide.
A High Efficiency Rolling Arc Guide should reduce running resistance and drive effort when sized correctly. Lower friction can support faster acceleration, lower heat generation, and smoother high-duty movement. It may also reduce wear compared with higher-friction mechanical transfer methods.
Catalog speed references, such as 5 m/s in some linear guide contexts, should be treated as limits. Installed automation lines are usually constrained by payload stability, shuttle spacing, safety distance, lubrication, station timing, and control response. Efficiency should be judged by output per footprint, uptime, reject reduction, and maintenance labor.
Distributed control allows each carrier to start, stop, dwell, or accelerate independently while staying synchronized with the line. It helps when inspection, curing, dispensing, or assembly stations need different dwell times. It can also support buffering before bottleneck stations.
The buyer should verify servo or linear motor architecture, encoder feedback, homing method, shuttle tracking, collision avoidance, E-stop recovery, and restart logic. Independent control improves flexibility, but it adds software, diagnostics, commissioning effort, and safety validation.
Contamination control often determines service life. Wipers, seals, bellows, covers, and flush bolt covers protect running surfaces from dust, chips, liquid, and powder. Material details should be requested early. They include rail steel grade, aluminum profile specification, hardening method, grinding control, coating, bearing material, and seal design.
Grease is common in many standard applications. NLGI Grade 2 or DIN 51825-type bearing grease is often used. Oil lubrication may be more suitable at higher speeds, such as above 60 m/min in relevant guide applications. Cleanroom, food, medical, washdown, and abrasive environments require different sealing and lubricant choices.
Modular straight and arc sections can improve station density and future expansion. Radius selection affects footprint, carrier size, curve speed, and moment load. Tight radii may look attractive on a layout drawing, but they can reduce allowable speed and increase loading.
Expansion plans should be checked against controls, guarding, safety zones, spare I/O, and spare carrier capacity. If the process is fixed and simple, maximum modularity may add cost without payback.
Define payload, carrier mass, fixture mass, tooling mass, and center of gravity.
Calculate vertical, lateral, pitch, yaw, and roll loads.
Check acceleration, deceleration, curve entry, curve exit, and emergency stop cases.
Estimate life using real speed, duty cycle, contamination, and lubrication assumptions.
Confirm installed accuracy, secondary locating needs, and maintenance access.
Nominal payload is only a starting value. Real sizing must include fixture weight, shuttle mass, acceleration, off-center loading, process force, and uneven product placement. The worst case may occur during curve entry, hard stopping, indexing shock, or station contact.
Empty-carrier test values can mislead procurement teams. The guide should be sized for full production conditions, including normal wear and expected contamination.
Offset loads generate pitch, yaw, and roll moments. Those moments may overload one block, one side of the carrier, or one rail section during curved travel. Multiple bearing blocks, wider carriage spacing, or a stiffer frame may be needed.
During sizing review, the Rolling Arc Guide supplier should show the load path through the shuttle, rail, bearings, fasteners, and machine base.
Life estimation should include dynamic load rating, applied equivalent load, speed, cycle count, and motion profile. A common structure is:
L = (C/F)p × 100 km
C = dynamic load rating.
F = applied equivalent load.
p = 3 for ball-type rolling elements.
p ≈ 3.33 for roller-type rolling elements.
This calculation style follows Hertzian contact principles and DIN ISO 281-style bearing assumptions. C50 may refer to a constant downward load associated with a 50 km travel rating at 90% reliability in some guide rating systems. L10 describes the life at which 90% of a defined population is expected to survive. Both values need derating for shock, vibration, contamination, misalignment, temperature, and poor lubrication.
Continuous circulation, intermittent indexing, and mixed motion profiles create different loads. The cycle model should include travel time, settling time, locating time, sensor confirmation, and fault recovery. It should not include travel time alone.
Curve speed limits, carrier spacing, emergency stop distance, payload stability, and safety guarding may reduce practical speed. A rail may support the motion, while the process still fails takt due to station dwell.
Rail accuracy is one part of the stack-up. Base flatness, frame rigidity, fixture repeatability, servo tuning, locator design, tool reaction force, and thermal growth also affect final accuracy. Procurement documents should define whether the required value is shuttle stop accuracy, process-point accuracy, or repeatability under load.
Secondary locating should be planned when the process tolerance is tighter than the guide and drive can hold alone.
| Sizing Input | Why It Matters | Common Mistake |
Payload and fixture mass | Defines vertical load and inertia | Using product weight only |
Center-of-gravity offset | Creates pitch, yaw, and roll moments | Ignoring tall or side-mounted fixtures |
Acceleration and E-stop load | Controls peak dynamic stress | Sizing only at steady speed |
Environment | Controls sealing and lubrication needs | Specifying it after design freeze |
Process-point tolerance | Defines locating and rigidity needs | Quoting rail accuracy as final accuracy |
The machine base should be measured before rail installation. Datum surfaces, flatness, and parallelism need written acceptance criteria. In dual-rail concepts, the primary rail should reference the datum. The secondary rail should float into alignment before final tightening.
Forcing both rails into position can distort geometry and create binding. Dial indicators, laser tools, straightedges, or other metrology methods may be needed.
Rail joints should be checked for height mismatch, lateral offset, burrs, and fastening distortion. Small errors can create impact points. Those points often produce noise, current spikes, localized wear, and repeatability loss.
Each carrier should move smoothly through straight sections, curves, transitions, segment joints, sensors, and stop locations before production loading.
Move all carriers through the full loop with power off.
Confirm that no mechanical interference or binding exists.
Run the first powered test near 50% of normal production speed.
Verify sensors, shuttle identification, stop behavior, and secondary locating.
Record baseline noise, vibration, drive current, and positioning data.
Over-torquing fasteners and distorting rail geometry.
Misaligning rail joints and creating impact points.
Ignoring bolt covers, chips, powder, or debris near running surfaces.
Tightening both rails before secondary alignment is complete.
Treating curved sections like straight sections under load.
Skipping half-speed validation before full-rate operation.
Service planning should begin before handoff to production. The line should have a grease interval, relubrication map, inspection owner, and contamination response plan. Lubricant compatibility with seals, wipers, process cleanliness, washdown exposure, and temperature range must be confirmed.
Early-life inspection after commissioning helps confirm lubrication film, wear marks, fastener security, and rail-joint condition.
Initial cost depends on rail geometry, curve radius, precision class, carriage count, drive architecture, control complexity, carrier quantity, sealing, material selection, and supplier scope. A component-only quote may look low until motors, sensors, guarding, safety hardware, software, and commissioning are included.
Lifecycle cost includes lubrication, wear parts, downtime, spare carriage availability, alignment correction, cleaning, inspection, changeover time, software support, and diagnostics. The cost of one hour of lost production often matters more than small component price differences.
Higher station density in a smaller footprint.
Reduced need for secondary locating hardware.
Better repeatability, fewer rejects, and less rework.
Integrated return motion without a separate conveyor level.
Flexible dwell timing for stations with unequal cycle times.
The premium may not pay back in low-precision transport, extremely dirty environments, fixed product flow, or lines limited by upstream and downstream bottlenecks. A belt, chain, pallet conveyor, round guide, or dial system may be sufficient when accuracy needs are modest.
| TCO Question | Decision Impact |
Will compact circulation remove floor space or a return conveyor? | Improves layout value and payback potential |
Will repeatability reduce reject cost? | Links guide selection to quality savings |
Will independent shuttle timing improve throughput? | Shows whether controls complexity is justified |
What spare parts must be stocked locally? | Reduces downtime exposure |
What maintenance labor is required? | Clarifies real operating cost |
A credible vendor should provide load and life calculations based on payload, moment load, speed, acceleration, and duty cycle. It should explain C50, L10, or equivalent life-rating assumptions in practical terms. It should also provide installation tolerances, datum strategy, lubrication rules, spare parts, and commissioning criteria.
A qualified Rolling Arc Guide manufacturer should connect performance claims to material, hardness, machining, coating, bearing quality, and inspection records.
Which applications match this guide architecture best?
Which applications should use another transfer method?
Are accuracy values measured at the rail, carrier, or process point?
How are curve loads and rail joints handled?
Is secondary locating required for the target tolerance?
What support is included for FAT, SAT, and commissioning?
What are lead times for carriages, rail segments, sensors, drives, and seals?
Procurement teams should verify rail material, hardening method, grinding or machining control, surface treatment, bearing type, rolling-element geometry, preload method, curve radius verification, and joint inspection criteria. The vendor should explain trade-offs instead of quoting only best-case numbers.
Controls review should cover PLC or servo platform compatibility, fieldbus support, encoder strategy, homing, shuttle tracking, phase synchronization, collision avoidance, safe torque off, E-stop response, and restart after fault. Diagnostics and remote support should be defined before acceptance testing.
Before RFQ release, procurement teams should prepare:
Payload, fixture mass, shuttle mass, and center of gravity.
Vertical, lateral, pitch, yaw, and roll moment loads.
Takt time, acceleration, dwell profile, and duty cycle.
Station count, carrier count, carrier spacing, and layout constraints.
Process-point tolerance and secondary locating requirements.
Environmental exposure, cleaning method, and lubricant restrictions.
Safety architecture, controls platform, and expansion plans.
Required documents, including calculations, tolerances, FAT/SAT scope, and spare-parts list.
Symptoms include noise, inconsistent movement, elevated wear, current spikes, carrier binding, and poor repeatability. Prevention starts with base inspection, datum control, staged tightening, and joint verification. Installation tolerances should be written into the purchase specification.
Rough travel, surface scoring, rising drive current, and premature bearing failure often trace back to poor sealing or weak lubrication control. Wipers, covers, bellows, flush bolt covers, and realistic service intervals reduce this risk. The environment should be specified before layout approval.
Localized wear, preload loss, process drift, and inconsistent station height often indicate poor load distribution. Mitigation may require wider carriage spacing, multi-block support, lighter fixtures, or a stiffer base. Real process loads must be reviewed, not only transfer loads.
Phase drift, inconsistent dwell, shuttle tracking faults, and poor restart behavior usually point to control architecture or tuning problems. Encoder quality, homing method, collision avoidance, secondary locating, and recovery logic should be verified before acceptance.
| Failure Mode | Early Signal | Mitigation Before Purchase |
Rail misalignment | Noise and binding | Require datum and joint tolerance data |
Contamination | Rising drive current | Specify covers, seals, and lubricant plan |
Moment overload | Process drift | Review offset loads and station forces |
Control mismatch | Timing faults | Validate servo, encoder, and recovery logic |
Over-specification | High cost and long commissioning | Separate must-have needs from optional features |
A circular guide rail system is justified when it improves repeatability, footprint, uptime, and station flexibility under real production loads.
Compile real payload, fixture, center-of-gravity, takt, and process-force data.
Request load calculations, life assumptions, installation tolerances, and precision definitions.
Compare vendors on installed repeatability, not rail accuracy alone.
Require half-speed commissioning, baseline measurements, and written acceptance criteria.
Approve only systems with lubrication rules, spare parts, and service support defined.
A: A Rolling Arc Guide emphasizes guided precision, rigidity, and repeatable carrier behavior at process stations. A standard circular conveyor may focus mainly on product movement and may need more secondary locating hardware.
A: It is necessary when the carrier must stop accurately for assembly, inspection, dispensing, fastening, or tooling-sensitive work. It matters most when process-point repeatability cannot rely on basic transport hardware.
A: The decision should be based on payload offset, process force, acceleration, fixture height, and overturning moment. If deflection can affect quality, rigidity becomes a primary selection factor.
A: No. They can reduce energy, rejects, maintenance, and footprint costs. Simple conveyors may still be more economical for low-precision, low-duty, or very dirty applications.
A: The supplier should receive payload, fixture mass, center of gravity, speed, acceleration, takt time, station count, carrier count, process forces, operating hours, environment, and required process-point tolerance.
A: Usually not in high-duty automation. Even sealed or low-friction systems need inspection, lubrication planning, contamination control, and spare-part readiness based on speed, duty cycle, and environment.
