In modern power transmission, the demand for zero backlash, high torque capacity, and rapid cycle times has pushed the limits of traditional machining. Machining methods like hobbing, milling, and grinding inherently sever the metal grain structure. This limits fatigue strength while increasing scrap rates and production bottlenecks in high-volume manufacturing environments. Traditional keyed shafts also suffer from localized stress concentrations that lead directly to premature mechanical failure under heavy dynamic loads.
Cold forming technologies, specifically the Rolling Spline process, directly solve these structural constraints. By utilizing controlled material displacement instead of material removal, spline rolling yields superior surface finishes, exact geometric tolerances, and unmatched load-bearing capacities for critical rotary and linear motion systems. Engineers achieve a stronger component with zero material waste. You retain the natural integrity of the metal, fundamentally upgrading the mechanical properties and reliability of the finished shaft.
Structural Superiority: Spline rolling relies on cold material displacement rather than material removal, causing work-hardening that increases load-bearing capacity by up to 40% while eliminating the stress points of single-keyway designs.
High-Volume Efficiency: The process allows for rapid cycle times (up to 300 parts per hour) with zero material waste, driving down long-term Total Cost of Ownership (TCO).
Advanced Versatility: Modern CNC rolling enables the forming of solid shafts, thin-walled hollow shafts (via throughfeed rolling), multiple geometries in a single cycle (threads, splines, and oil grooves), and complex linear motion components like the ball spline assembly.
Standardized Precision: Capable of achieving ANSI Class 5 and DIN Class 8 tolerances, ensuring exact pitch diameter and zero backlash for robotics, automotive drivetrains, and CNC joints.
The rolling spline process is a highly specialized cold-forming operation. Hardened tool-steel dies or flat racks apply immense lateral pressure to a cylindrical metal blank. This high-tonnage pressure forces the raw material to flow plastically into the specific cavities of the die. You form precise geometries without cutting away any metal. The volumetric constancy principle applies here. The total volume of the pre-machined blank equals the exact volume of the finished spline, meaning material is simply redistributed from the root to the crest of the newly formed teeth.
Metal forming processes generally fall into hot or cold thermal categories. Hot rolling requires heating the metal above its recrystallization temperature to increase formability. This makes it easier to shape massive or complex industrial parts. However, high heat introduces rapid thermal expansion and unpredictable contraction during the cooling phase, which degrades overall dimensional precision.
Cold rolling executes entirely at room temperature. This strict thermal environment allows you to control dimensional accuracy down to microscopic levels. Cold rolling preserves and compresses the natural metal grain flow lines. Machining tools interrupt these structural lines, creating micro-weaknesses where shear cracks can initiate under torque. Material displacement redirects the grain to follow the exact contour of the spline tooth. This intense physical compression creates localized work-hardening across the workpiece surface. The table below illustrates typical yield strength improvements.
| Material Grade | Machined Yield Strength (MPa) | Rolled Yield Strength (MPa) | Approximate Increase |
SAE 1045 Carbon Steel | 310 | 425 | +37% |
SAE 4140 Alloy Steel | 415 | 580 | +40% |
304 Stainless Steel | 215 | 310 | +44% |
Engineers evaluate trade-offs between different manufacturing methods based on scale, strength, and budget. Here is how spline rolling directly compares to traditional hobbing, milling, and grinding methodologies.
| Process Attribute | Spline Rolling | Hobbing & Milling | Grinding |
Material Removal | None. Zero scrap generation reduces raw material purchasing costs. | High. Generates substantial metal chips requiring coolant management. | High. Creates fine metal swarf and demands aggressive filtration. |
Production Speed | Extremely Fast. Cycles often complete in 3 to 10 seconds. | Moderate. Time-intensive indexing limits daily output. | Low. Requires multiple shallow passes to prevent thermal damage. |
Surface Finish | Superior burnished finish (Ra 0.2 - 0.8). Eliminates secondary polishing. | Standard finish. Often requires secondary grinding for tight fits. | High finish, but severs grain lines causing structural weakness. |
Tooling TCO | High initial die cost. Lowest per-part cost at high volumes. | Lower upfront tool cost. High operational, insert, and scrap costs. | High wheel wear and continuous dressing inflate operational budgets. |
Selecting the correct manufacturing method dictates your project budget and the mechanical ceiling of your component. Use milling for prototyping and short production runs under 1,000 units. In low volumes, initial rolling die investments make no financial sense. Use hobbing for massive, heavy-duty gears exceeding 200mm in diameter, where standard rolling machines cannot physically apply enough displacement force.
Choose cold rolling for high-volume, fatigue-resistant shafts. If you require tens of thousands of identical, ultra-durable components for automotive, aerospace, or appliance applications, cold rolling offers the fastest return on investment. The zero-scrap rate and single-cycle completion rapidly absorb the initial tooling costs.
Spline profiles dictate exactly how torque transfers between mating components. Different assemblies require specific geometric shapes to manage shear forces, dynamic alignment, and long-term wear.
Involute Splines: These feature short, curved teeth that provide expansive contact areas. They act structurally like gear teeth. They are optimal for load sharing, superior shock absorption, and minimizing the risks of self-centering misalignment during high-speed operation.
Parallel/Square Splines: These utilize straight-sided profiles. You generally specify them for locking applications or heavy-duty static connections where axial sliding movement remains minimal. They carry extreme static loads but lack the self-centering geometry of involute designs.
Serrated Splines: These feature distinct V-shaped designs. They are meant specifically for permanent interference fits and fine angular positional adjustments. You frequently see them utilized in automotive steering columns and rigid structural joints.
Helical Splines: These utilize precision angled teeth. They are engineered for specialized axial load handling, optimal load sharing across the entire gear face, and precise mechanical synchronization inside complex transmissions.
Precision manufacturing relies on strict geometry. Standard pressure angles for involute splines typically range from 20° to 37.5°. Serrations use steeper angles, generally falling between 25° and 45°. A wider pressure angle significantly thickens the tooth root. This thick root prevents catastrophic bending failures under sudden, violent torque spikes.
Quality assurance mandates compliance with global manufacturing standards. These frameworks govern exact pitch diameter, Total Indicated Runout (TIR), and tooth spacing. Modern rolling equipment easily meets ANSI B92.1 and B92.2M requirements for flat root major diameter fits and flat root side fits. You will also maintain strict adherence to ISO 4156, DIN 5480, DIN 5481, SAE J-500, and JIS specifications, ensuring seamless global compatibility for your assemblies.
Two primary machine configurations dominate the cold forming industry. Each methodology offers specific advantages based on your part geometry, required footprint, and production volume.
Rack Rolling (Flat Die): This machine operates via two opposing flat toothed racks moving linearly across the workpiece. It is highly efficient and easily capable of forming multiple geometries—such as splines, snap rings, and threads—in a single, rapid machine cycle. However, the process is heavily limited by the physical length of the rack. Once the workpiece completes its travel across the flat die surface, the forming cycle ends.
Cylindrical Die (Round Die) Rolling: This system utilizes two or three rotating CNC dies mounted on parallel axes. It allows for infinite, continuous rotation of the workpiece through controlled CNC infeed. This endless rotation makes it the premier choice for highly complex or ultra-high-precision profiles where gradual, low-force material displacement yields superior dimensional tolerances.
Blank Size Control: The pre-machined blank outer diameter completely dictates the success of the roll. If the blank is too large, excess displaced material overfills the die cavity, risking catastrophic tool breakage and machine stalling. If the blank is too small, you suffer from incomplete tooth filling and truncated crests. Precise blank preparation ensures the metal flows perfectly to the die dimensions.
Die Synchronization: You must establish perfect rotational phase-matching between the dies. If the dies fall out of synchronization by even a fraction of a degree, they will cross-thread and crush the newly formed spline teeth. Rigid CNC mechanical controls and optical encoders guarantee exact pitch diameters and eliminate tooth spacing defects.
Thin-Walled Hollow Shafts (Throughfeed): Electric vehicle (EV) manufacturing relies entirely on automotive lightweighting. Standard infeed rolling applies up to 100kN of crushing radial force directly into the shaft. This easily deforms or collapses thin-walled tubes. The solution is continuous throughfeed rolling. The spline forms progressively in a highly concentrated, moving zone. This minimizes the active contact area and drastically reduces radial pressure on the hollow core.
Rolling Aligned Splines: Many transmission designs require multiple synchronized splines on a single solid shaft. Rolling these effectively requires exceptionally rigid machine control. We utilize multi-station CNC positioning to form the separate geared sections without losing phase accuracy or structurally twisting the base shaft between operations.
The highest quality rolling machine fails without proper workholding. The part faces extreme lateral forces during the plastic displacement process. This creates a critical necessity for high-precision live centers and hydraulic face drivers to secure the blank firmly against rotation and deflection.
Concentricity and coaxiality at the tooling level dictate your final component accuracy. If your live center allows radial deflection, the spline suffers from immediate runout defects. A highly rigid setup ensures the theoretical pitch line aligns perfectly with the true rotational axis of the shaft.
Precision spline forming extends directly into the manufacturing of highly complex linear motion components. Modern industrial automation demands systems capable of transmitting heavy torque loads while simultaneously allowing smooth, low-friction axial movement. Traditional round shafts combined with linear bushings allow movement but cannot transmit torque. Standard keyed shafts allow torque transmission but suffer from immense sliding friction, causing rapid wear and binding under load.

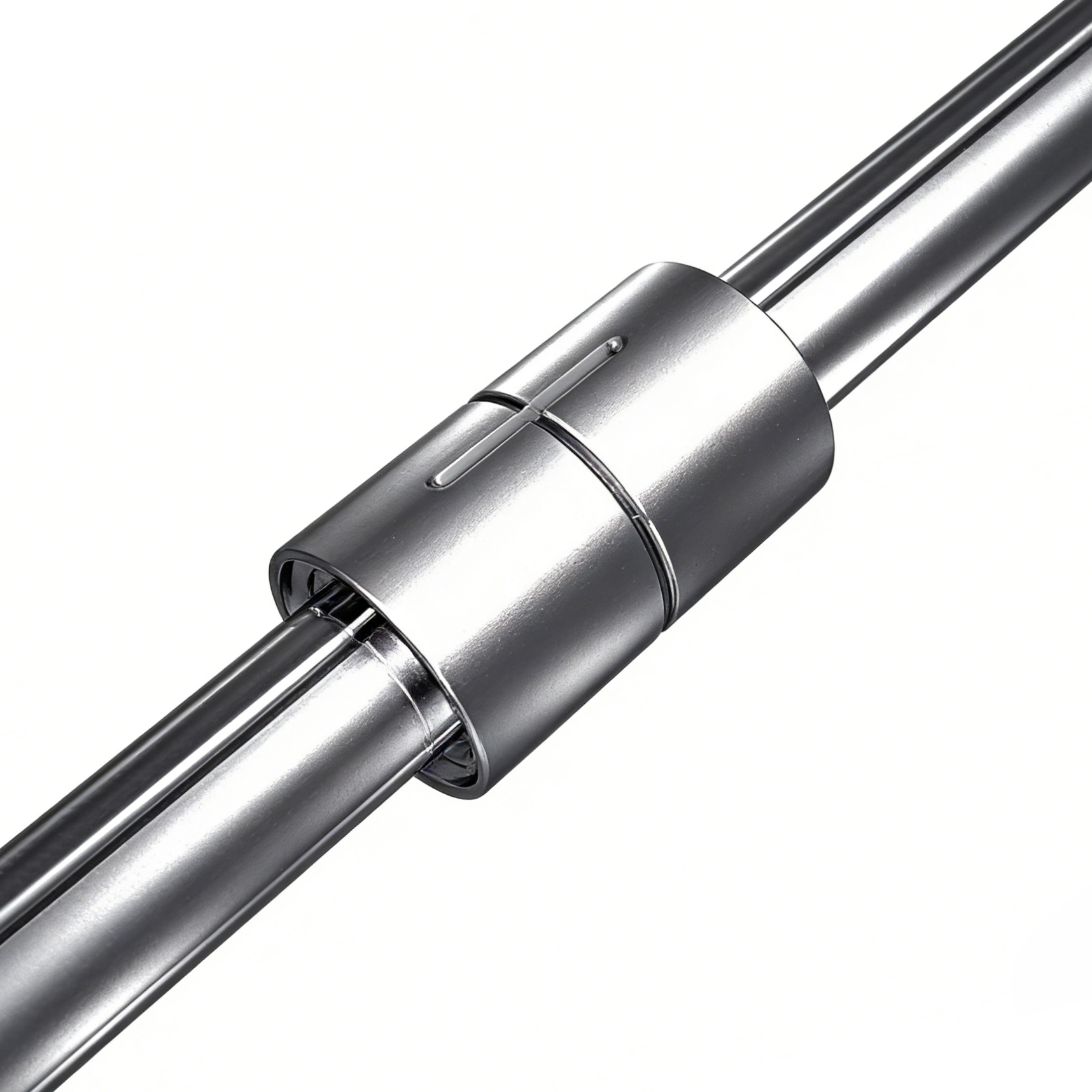

A highly engineered Ball Spline solves the persistent sliding friction problem. The complete system relies on a seamless mechanical synergy between the precision-rolled spline shaft and a specialized Ball Spline Nut. Recirculating steel balls sit internally within the nut cartridge.
These steel bearings ride continuously along the exact gothic-arch grooved tracks formed into the shaft. Because rolling friction replaces sliding friction, axial movement remains incredibly smooth and responsive, even under immense twisting forces. This integrated Ball Spline Assembly eliminates mechanical backlash, manages structural pre-loads effectively, and provides rigid, highly repeatable linear guidance.
Engineers must match the internal bearing design and preload classification to the specific payload dynamics. The wrong choice leads directly to rapid bearing degradation, system latency, or catastrophic seizing.
High Speed Ball Spline: This variant is explicitly engineered with specialized resin retainers and a lower overall nut mass. It minimizes physical inertia during rapid, repetitive directional changes. You typically specify a High Speed Ball Spline for robotic pick-and-place systems, multi-axis CNC routers, and automated packaging lines that demand swift, continuous cycle times without thermal buildup.
Heavy Duty Ball Spline: This design features significantly larger ball bearings and deeper gothic-arch grooves for maximum surface contact. It provides higher overall rigidity and massive static load ratings. You invest in a Heavy Duty Ball Spline for heavy load actuators, industrial mechanical presses, and injection molding machinery where any structural deflection is completely unacceptable.
| Preload Class | Clearance Level | Primary Application | Friction Profile |
Normal (Z0) | Slight Clearance | General automation, low-load sliding mechanisms. | Lowest friction, highest speed potential. |
Light Preload (Z1) | Zero Clearance | Robotics, CNC positioning, moderate vibration handling. | Balanced friction and structural rigidity. |
Medium Preload (Z2) | Negative Clearance | Heavy actuators, industrial presses, high-shock loads. | Highest friction, maximum torsional stiffness. |
Upfront tooling costs for hardened, coated dies are a significant investment. The break-even point for cold forming occurs rapidly when production volumes scale to offset these initial capital expenditures. For continuous, high-volume production, the zero-scrap rate and exceptionally fast cycle times make rolling highly profitable. TCO drops drastically as part counts scale past the 10,000-unit threshold.
Material selection directly impacts tool life and project viability. You must evaluate formability across high-hardness alloy steels, stainless steels, titanium, bronze, brass, and aluminum. Softer metals flow easily under lower tonnage, greatly extending die life. High-hardness alloys require intense displacement force, which accelerates tool wear but yields incredibly durable, heavy-duty finished components.
Identifying wear early prevents catastrophic machine failure and assembly downtime. Monitor for these five critical warning signs during standard machine operation:
The emergence of measurable axial or radial play, signaling a definitive loss of the critical zero-backlash specification and indicating internal bearing or root wear.
Visible pitting, surface micro-cracking, or uneven wear patterns emerging along the involute flanks or deep within the root of the tooth profile.
Harmonic resonance or severe structural vibration detected by system sensors specifically under heavy dynamic operational loads.
Audible noise escalation, high-pitched squealing, or physical slip and chatter during sudden motor torque spikes or rapid directional reversals.
Visible damage to mating components, including support bearings, structural housings, or the spline nut, caused by localized stress transfer from a failing shaft.
Consistent maintenance protects your tolerance ratings and die investments. Establish rigid intervals—strictly every 500 hours—for checking hydraulic clamping pressures, validating system fluid cleanliness, and verifying precise CNC die synchronization. Contaminated hydraulic fluid leads to micro-stutters in the machine feed rate, which permanently ruins tooth geometry and finish.
Outline strict, documented cleaning protocols for your rolling dies. Metal flakes and environmental shop debris pressed into the dies imprint directly onto the finished shaft, destroying the surface finish. Automatic lubrication schedules and 10-micron fluid filtration systems prevent premature tooling failure, keep thermal expansion low, and ensure you consistently maintain ANSI Class 5 tolerances.
A rolling spline represents a structural engineering upgrade over traditional metal cutting methods. By leveraging controlled metal displacement, engineers achieve a rare combination of extended fatigue life, immense load capacity, and rapid cycle speed that traditional machining simply cannot replicate. The physical preservation and redirection of the metal grain directly translates to a superior, fault-resistant power transmission component.
Apply clear shortlisting logic when selecting a production process. For low-volume prototyping, milling remains the appropriate economic choice. However, for high-volume, maximum-strength, zero-backlash systems—especially complex linear-rotary automation applications—spline rolling is structurally and economically required.
Execute the following steps to ensure successful implementation:
Calculate the theoretical pitch diameter of your component to establish exact blank dimensions prior to ordering custom tooling.
Conduct material flow analysis on your specified alloy to confirm it withstands cold deformation without internal fracturing.
Audit your lathe and workholding setup to verify that live centers and face drivers can withstand extreme lateral rolling pressures without deflection.
Implement a strict 500-hour fluid filtration protocol to protect hydraulic CNC synchronization systems from micro-contaminants.
A: Yes. You must utilize continuous throughfeed rolling instead of standard infeed rolling. This progressive method keeps the die contact area minimal. It prevents extreme radial forces—which often exceed 100kN—from crushing or deforming the thin-walled tubular components highly utilized in automotive lightweighting and electric vehicle drivetrain designs.
A: A standard rolling spline transmits torque through direct, sliding friction between a shaped shaft and a mating gear. A ball spline assembly replaces sliding friction with rolling friction. It houses recirculating steel bearings inside a specialized nut, allowing it to transmit heavy rotational torque while providing exceptionally smooth, zero-backlash linear movement.
A: Cold rolling displaces metal into precision CNC dies, ensuring perfectly repeatable pitch diameters and exact tooth geometry. This material displacement creates a superior, burnished surface finish and an extremely tight interference fit between mating components. You eliminate the microscopic gaps, surface irregularities, and mechanical play that inherently cause system backlash.
A: You must machine the blank outer diameter to precisely match the theoretical pitch diameter of the final spline specification. This ensures volumetric constancy. It allows the displaced metal to flow outward and completely fill the die roots without overfilling the cavity, which would structurally fracture the hardened rolling dies.
A: Specify a heavy duty variant when your application demands high torsional rigidity combined with precise linear motion in a tightly constrained footprint. They utilize deeper gothic-arch grooves and larger internal ball bearings. This construction makes them ideal for heavy industrial actuators and presses where standard cantilevered guide rails would physically deflect.
A: Lifespan depends entirely on workpiece material hardness, die coatings, and preventative maintenance routines. With strict hydraulic fluid cleanliness, rigorous operational checks, and perfect phase synchronization, premium cylindrical dies coated in TiN or TiCN can successfully roll between 100,000 and 300,000 steel parts before requiring regrinding or full replacement.
A: Industrial involute splines rely heavily on pressure angles ranging from 20° to 37.5°. These specific geometric angles provide the optimal balance for active load sharing, shock absorption, and expansive root contact areas. Serrated profiles designed for static interference fits generally utilize much steeper pressure angles, ranging between 25° and 45°.
