GJAIF Roll Spline Subdimension Series

GJAIF Roll Spline Subdimension Series offered by China manufacturer Gongyi. Buy GJAIF Roll Spline Subdimension Series directly with low price and high quality.

Quantity:
Availability:





Inquire Add to Basket

Model:
GJAIF
Brand:
yi gong

Product Description

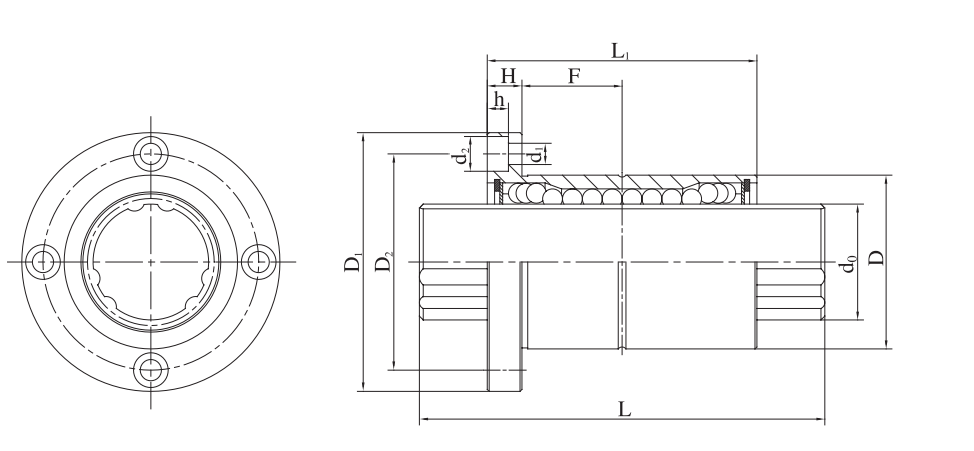

GJAIF Type Rolling Spline Subdimension Series

Unit:mm
Code and type	Shaft dia. d。(h7)	External dia. D(h6)	Length of spline nut L₁	Max. length of shaft L	Dia.of flange D₁	Dia.of center circle of mounting D₂	Thick- ness of flange H	Depth of counter bore h	Dia.of counter bore d₂	Dia. of cross hole d₁	Oil hole d	Position of oil hole F	Standard rated torque		Basic rated load
Code and type	Shaft dia. d。(h7)	External dia. D(h6)	Length of spline nut L₁	Max. length of shaft L	Dia.of flange D₁	Dia.of center circle of mounting D₂	Thick- ness of flange H	Depth of counter bore h	Dia.of counter bore d₂	Dia. of cross hole d₁	Oil hole d	Position of oil hole F	Dynamic torsion N-m	Stationary torsion N-m	Dynamic Static load C load C。 KN KN
GJAIF16	0 16 -0.018	0 31 -0.016	0 50 -0.2	500	0 51 -0.2	40	7	4.4	8	4.5	2	18	32	30	7.5	15.6
GJAIF20	0 20 -0.021	0 35 -0.016	0 63 -0.2	600	0 58 -0.2	45	9	5.4	9.5	5.5	2	22.5	55	55	10.1	24.7
GJAIF25	0 25 -0.021	0 42 -0.016	0 71 -0.3	800	0 65 -0.3	52	9	5.4	9.5	5.5	3	26.5	103	105	13.7	30.1
GJAIF30	0 30 -0.021	0 48 -0.016	0 80 -0.3	1400	0 75 -0.3	60	10	6.5	11	6.6	3	30	148	171	17.1	37.1
GJAIF40	0 40 -0.025	0 64 -0.019	0 100 -0.3	1500	0 100 -0.3	82	14	8.6	14	9	4	36	375	415	32.1	70.2
GJAIF50	0 50 -0.025	0 80 -0.019	0 125 -0.3	1500	0 124 -0.3	102	16	11	17.5	11	4	46.5	760	840	49.4	104.9
GJAIF60	0 60 -0.03	0 90 -0.022	0 140 -0.3	1500	0 134 -0.3	112	16	11	18	11	5	54	1040	1220	64.2	128.2
GJAIF80	0 80 -0.03	0 120 -0.022	0 160 -0.4	1700	0 168 -0.3	144	20	12.8	20	13.5	5	60	1920	2310	87.3	170.7
GJAIF100	0 100 -0.035	0 150 -0.025	0 190 -0.4	1900	0 200 -0.3	170	25	16.8	26	17.5	5	70	3010	3730	109.9	222
GJAIF120	0 120 -0.035	0 180 -0.025	0 220 -0.4	1900	0 252 -0.3	216	30	20.6	32	22	6	80	4100	5200	176.5	347
