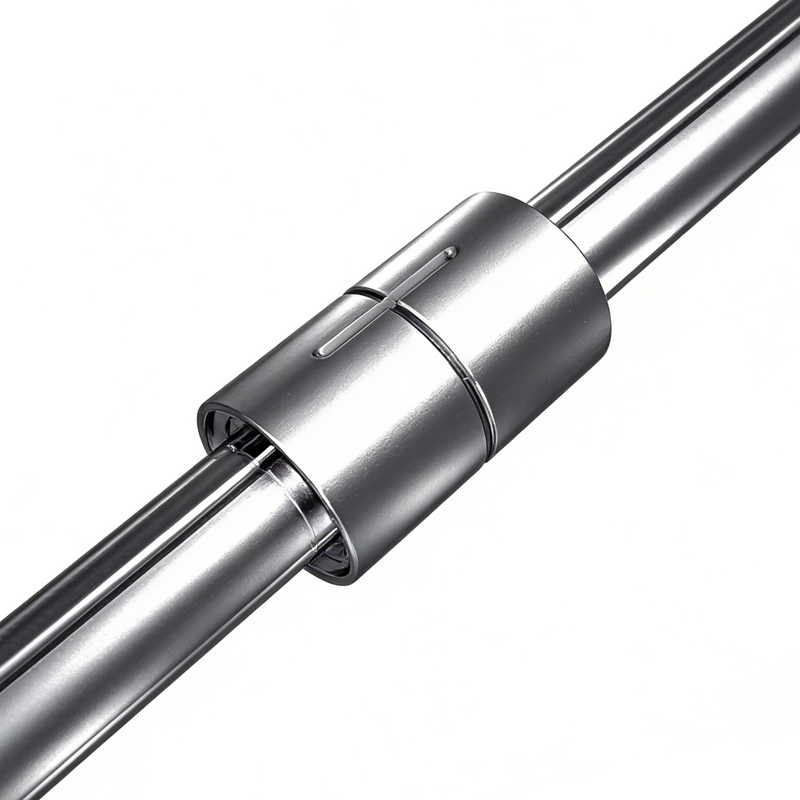

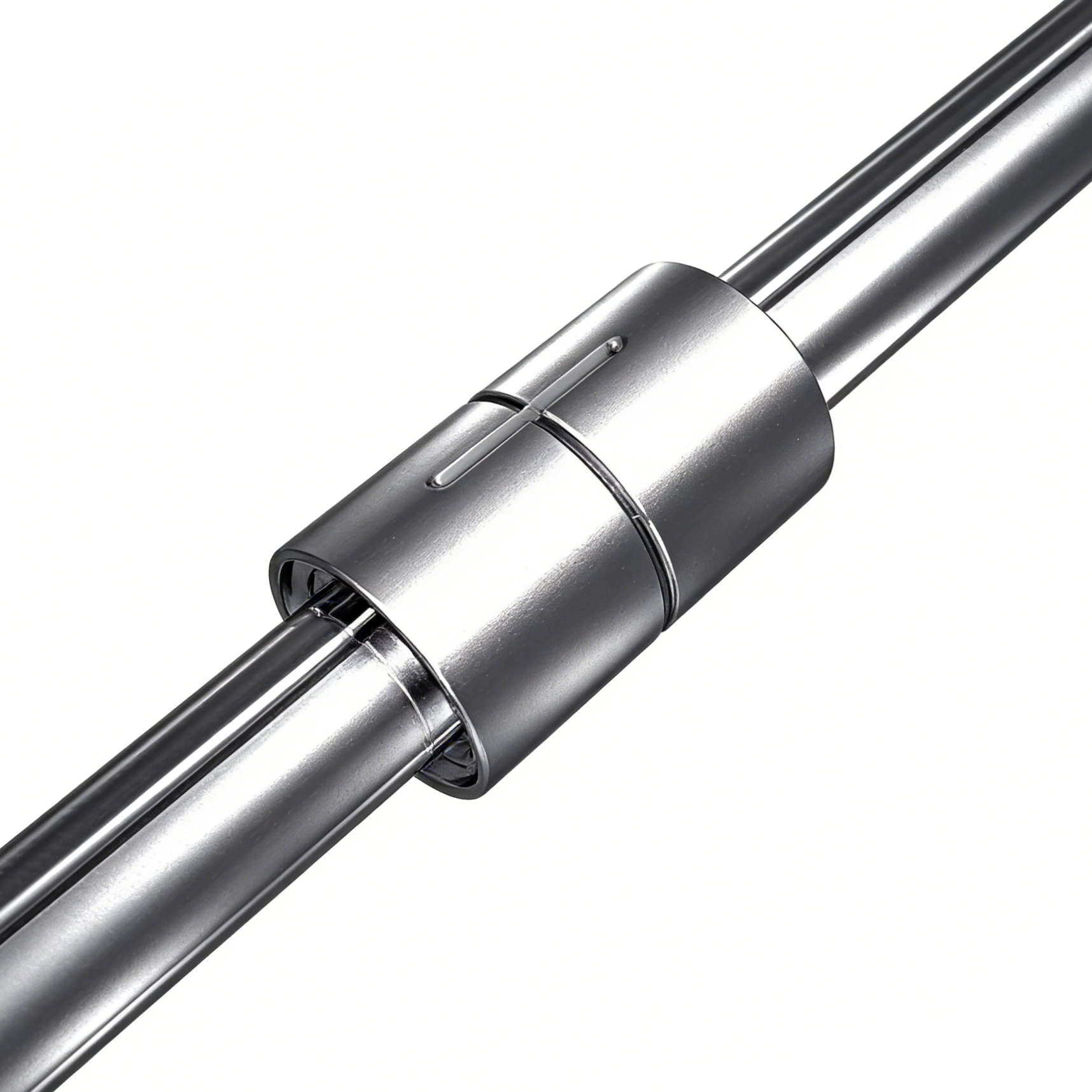

GJAIZ Roll Spline Subdimension Series

Name: GJAIZ Roll Spline Subdimension Series
Brand: yi gong
Rating: 5.0 (77 reviews)

Product Description

GJAIZ Type Rolling Spline Subdimension Series

Unit: mm

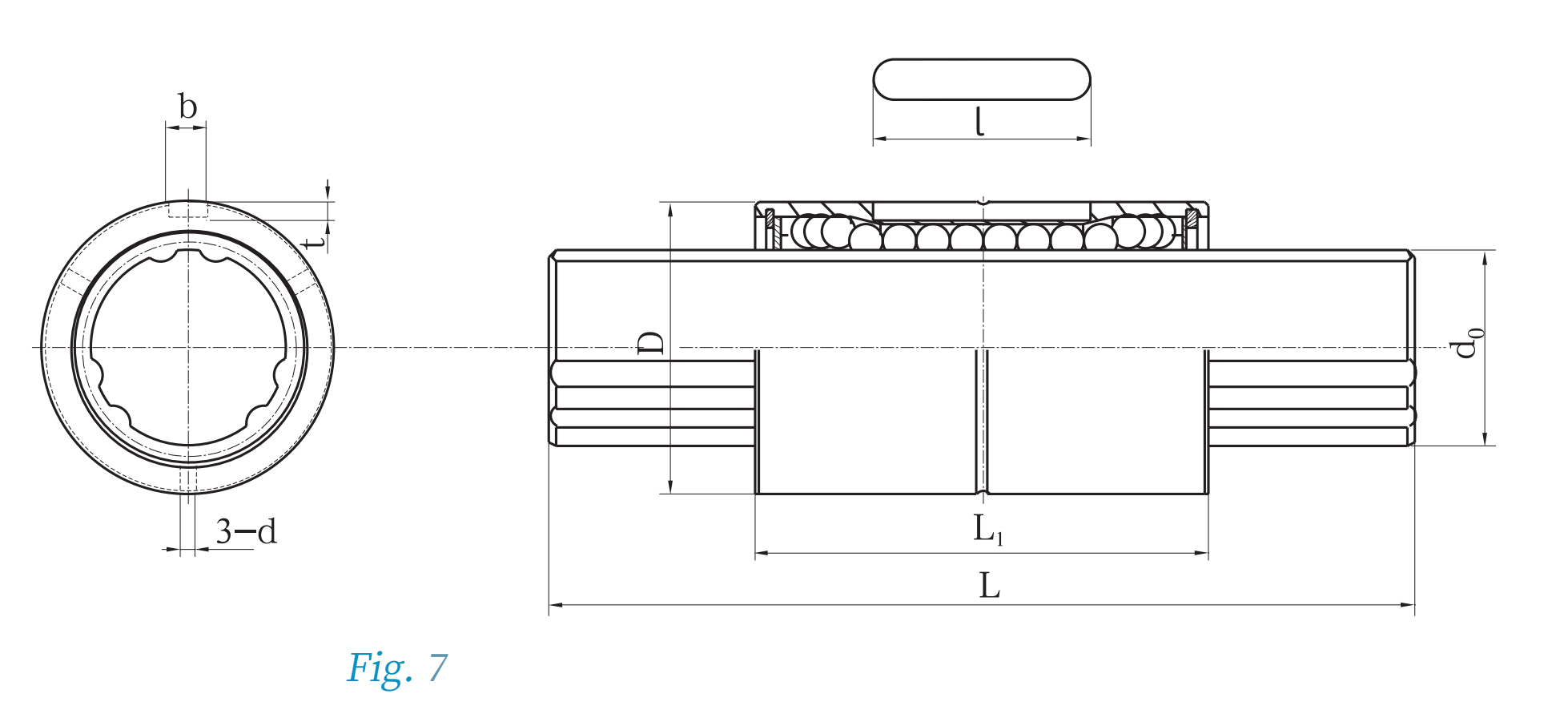

Code and type	Shaft dia. d。 (h7)	External dia. D (h6)	Length of spline nut L₁	Max.length of shaft L	Width of slot groove b	Depth of slot groove t	Length of slot groove /	Oil holed	Standard rated torque Basic rated load
Code and type	Shaft dia. d。 (h7)	External dia. D (h6)	Length of spline nut L₁	Max.length of shaft L	Width of slot groove b	Depth of slot groove t	Length of slot groove /	Oil holed	Dynamic torsion N-m	Stationary torsion N-m	Dynamic Static load load C KN: C。KN
GJAZG16	160 -0.018	310 -0.016	500 -0.2	500	3.5H8	20 +0.1	17.5	2	32	30	7.5	15.6
GJAZG20	200 -0.021	350 -0.016	630 -0.2	600	4H8	2.50 +0.1	29	2	55	55	10.1	24.7
GJAZG25	250 -0.021	420 -0.016	710 -0.3	800	4H8	2.50 +0.	36	3	103	105	13.7	30.1
GJAZG30	300 -0.021	480 -0.016	800 -0.3	1400	4H8	2.50 +0.1	40	3	148	171	17.1	37.1
GJAZG40	400 -0.025	640 -0.019	1000 -0.3	1500	6H8	3.50 +0.1	52	4	375	415	32.1	70.2
GJAZG50	500 -0.025	800 -0.019	1250 -0.3	1500	8H8	40 +0.2	58	4	760	840	49.4	104.9
GJAZG60	600 -0.03	900 -0.022	1400 -0.3	1500	12H8	50 +0.2	67	5	1040	1220	64.2	128.2
GJAZG80	800 -0.03	1200 -0.022	1600 -0.4	1700	16H8	60 +0.2	76	5	1920	2310	87.3	170.7
GJAZG100	1000 -0.035	1500 -0.025	1900 -0.4	1900	20H8	70 +0.2	110	5	3010	3730	109.9	222
GJAZG120	1200 -0.035	1800 -0.025	2200 -0.4	1900	32H8	110 +0.2	120	6	4100	5200	176.5	347
