In precision engineering and industrial automation, machine survival often comes down to specifying the correct motion components. The difference between a high-performing system and one plagued by premature wear usually lies in your linear motion selection. Since the commercialization of recirculating rolling elements in the 1940s, the Linear Guide has radically changed motion control. This technology dropped sliding friction coefficients from greater than 0.2 down to approximately 0.002. This massive friction reduction fundamentally altered how engineers approach load and speed limits.
Specifying these systems creates a complex business problem. Over-specifying a system severely inflates your capital expenditure. Under-specifying leads to catastrophic machine failure, excessive maintenance downtime, and a ruined Total Cost of Ownership (TCO). You must navigate conflicting variables daily, balancing dynamic load capacity against environmental contaminants and strict mounting tolerances. This guide delivers a definitive, engineering-grade framework to evaluate rolling guide technologies, decode manufacturer specifications, and match the exact mechanical architecture to your specific operational environment.
Guidance vs. Actuation: A linear guide restricts motion to a single precise axis (guidance) while absorbing load and eliminating side-play; it does not drive the motion (actuation, which is the role of ball screws or linear motors).
Contact Mechanics Dictate Capacity: Square profile rails utilize "face contact" for up to 10x the load capacity of point-contact round rails, enabling single-rail configurations that inherently resist rotational torque without needing a secondary, parallel rail.
Preload Controls Precision: Applying the correct preload class (Z0 to ZB) eliminates back-lash but inherently increases friction and temperature; miscalculating this artificially induces fatigue.
Environmental Survival Requires Trade-offs: Maximum corrosion resistance (e.g., 300-series austenitic stainless steel) inherently limits track hardness, requiring significant load de-rating compared to standard hardened steel (58-64 HRC).
Engineers must clearly separate actuation from guidance when designing automated systems. Actuators, like servo motors, pneumatic cylinders, and ball screws, provide the physical thrust. They push the payload forward along a designated path. The guidance system, conversely, absorbs the surrounding physical forces. The guide absorbs radial and reverse-radial loads generated by the payload's mass and acceleration. It neutralizes pitch, yaw, and roll moments that would otherwise torque the actuator. It restricts the physical motion strictly to one flawless axis, ensuring the actuator only uses energy to drive the load forward, rather than fighting lateral drag.
Modern rolling guides rely on three interactive components to eliminate slip-stick effects and maintain micro-level precision over thousands of operating hours.
Linear Rail (The Track): This forms the static foundation of your motion system. Manufacturers typically machine the linear rail from high-carbon chromium bearing steel. They apply induction hardening to achieve surface hardness levels between 58 and 64 HRC. Precision grinding then forms complex internal raceways along the entire length of the steel, matching the exact diameter of the rolling elements.
Carriage / Bearing Block: The dynamic housing mounts your physical payload. This block wraps securely around the rail profile. It contains internal return tubes and end caps that create an endless circulation loop for the bearings.
Rolling Elements: Steel balls or cylindrical rollers travel through the recirculating loop inside the carriage block. They continuously transfer the load from the carriage to the rail. By converting sliding friction into rolling friction, this system requires roughly 1/50th of the drive force to initiate movement compared to traditional boxways.
End Seals and Scrapers: Integrated onto the leading and trailing edges of the carriage block, these components scrape debris off the rail and keep internal lubricants trapped inside the raceway.
Selecting the correct architectural profile determines how the system responds to applied loads, structural deflection, and environmental contamination.

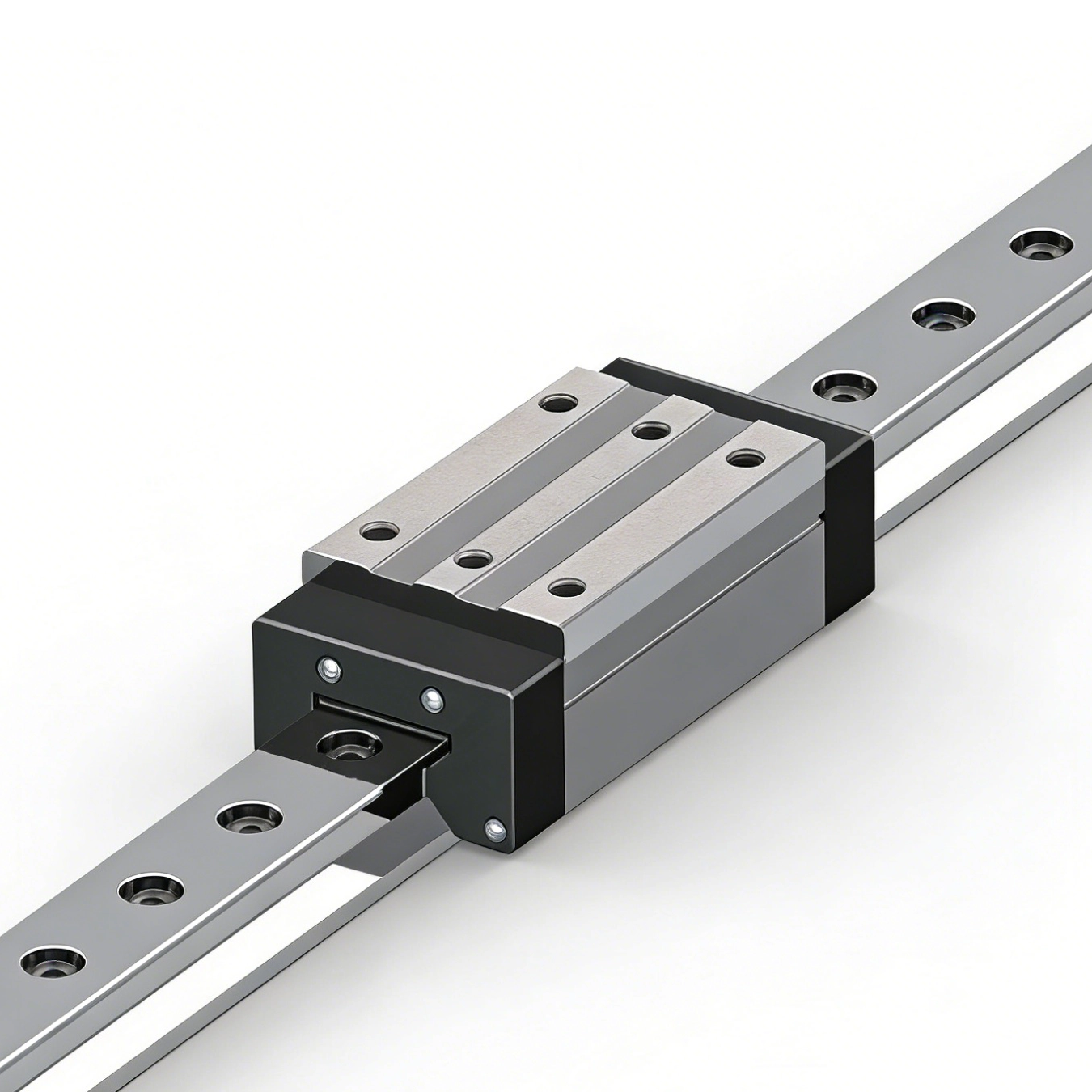

Profile rails feature a distinct T-shaped or H-shaped cross-section. They contain highly complex, precision-ground raceway grooves. This geometry provides supreme structural rigidity. Because the steel balls make multi-point face contact with the rail, profile rails offer massive load capacity in a compact footprint. They excel in CNC machining operations, precision measurement machines, and robotic gantries. You should deploy them in single-axis setups where preventing carriage rotation is strictly required. However, they demand nearly perfectly flat and parallel mounting surfaces to prevent internal binding.
Round systems utilize precision cylindrical shafts paired with recirculating ball bushings. They offer lower overall rigidity than profile rails due to simple point-contact physics between the balls and the convex shaft. However, a linear guide rail built on a round shaft is highly tolerant of mounting misalignment. It freely forgives structural bed deflection without artificially spiking friction. The cylindrical geometry naturally sheds debris, making it excellent in harsh manufacturing floors. Round rails also safely resist fluid-driven upward pulling forces. By contrast, square rails often suffer severe stress concentrations at the raceway corners during extreme upward tear-out forces.
Track-roller designs eliminate recirculating bearings entirely. They use sealed, heavy-duty cam-follower roller wheels. These hardened wheels run continuously along a specialized linear guide track. This architecture dominates in high-speed, long-stroke scenarios, pushing speeds up to 10 meters per second. It also excels in highly contaminated environments like fiberglass routing or lumber processing, where standard ball raceways quickly clog and fail.
Manufacturers offer distinct wheel profile variations tailored to specific industrial hazards:
Flat Wheels: Engineered specifically for heavy-duty material handling on flat track sections.
V-Shaped/Notched Wheels: Deliver high precision while naturally repelling debris off the corresponding V-edge of the track through a continuous wiping action.
Chamfered Wheels: Mitigate dangerous corner loading in heavy gantry or rough forklift mast applications.
U-Groove Wheels: Capture the hardened steel rail physically on three sides. This mechanical capture prevents catastrophic carriage derailment in high-speed vertical lifts and automated storage retrieval systems (ASRS).
Ultra-precision sectors, such as semiconductor fabrication and optical inspection, demand advanced contact or entirely contactless mechanics to achieve sub-micron positioning accuracy.
Cross-Roller Guides: These systems use alternating, crossed cylindrical rollers held in a non-recirculating cage. They serve ultra-short strokes between 0-300mm. Because the rollers do not recirculate, frictional resistance drops below 1N, and running noise is virtually eliminated. They dominate micro-positioning stages.
Air Bearings: The carriage block physically floats on pressurized air. A 2-5 micron air cushion permanently separates the carriage from the rail. The friction coefficient plummets to 10^-7. You need a flawlessly lapped granite base and constant 5-6 bar clean air pressure. They offer zero particulate generation, making them mandatory for vacuum and cleanroom wafer handling.
| System Architecture | Load Capacity | Misalignment Tolerance | Contamination Resistance | Optimal Applications |
Square Profile Rail | Very High | Very Low (Requires precise machining) | Moderate (Relies heavily on end seals) | CNC machines, high-precision automation, robotics. |
Round Shafting | Moderate | High (Accommodates structural deflection) | Good (Cylindrical shape sheds debris) | Packaging machines, wide gantry systems, DIY automation. |
Track-Roller System | High | Moderate | Excellent (Wheels wipe the track clean) | Woodworking, fiberglass machining, long-stroke conveyors. |
Air Bearing | Low to Moderate | Zero (Requires lapped granite base) | Excellent (Air pressure repels particles) | Semiconductor metrology, optical inspection, cleanrooms. |
The internal geometry of the steel raceway dictates how the ball bearings physically interact with the track under heavy loads. You must understand these mechanics to predict frictional heat and system rigidity.
The Gothic Arch design features a deep, V-like groove that provides distinct 4-point contact between the ball and the raceway. This geometry offers maximum stiffness and structural rigidity. It delivers exceptionally high single-rail moment capacity, resisting rotational torque in all directions. However, this 4-point contact creates differential slip. The ball rotates at varying speeds at different contact points, generating higher friction and heat under heavy dynamic loads. You should specify this geometry for highly precise, low-speed systems where positional accuracy overrides thermal limits.
The Circular Arch design creates a wider curve, resulting in 2-point contact. This design allows minor self-aligning capabilities within the block, compensating for microscopic mounting errors. It creates noticeably lower friction and minimal differential slip. This cooler operating profile allows for much higher continuous running speeds. It remains the best choice for highly dynamic, variable-load applications requiring rapid acceleration.
Preload artificially eliminates mechanical backlash between the carriage block and the rail. Manufacturers inject microscopically oversized balls into the carriage block during assembly. This forces the balls into a state of negative clearance, meaning they are squeezed tightly against the raceway before any external payload is applied. This squeeze increases system rigidity and severely dampens machine vibration. You must specify the correct preload class to prevent premature material fatigue.
| Preload Class | Clearance Ratio | Mechanical Characteristics | Ideal Application Scenarios |
Z0 (Zero/Light) | 0 to 0.02C | Low impact, slight gap-fit tolerance, lowest operational friction. | Conveyors, packing machinery, automated welding arms. |
ZA (Medium) | 0.05 to 0.07C | Zero mechanical backlash, high precision, moderate stiffness. | CNC lathes, laser cutters, precision measuring equipment. |
ZB (Heavy) | 0.10 to 0.12C | Extreme rigidity, handles severe shock loads and heavy vibration. | Heavy milling centers, vertical grinding, Z-axis vertical drops. |
Selecting the proper system requires strict adherence to mathematical load calculations and environmental audits. Following this standard framework prevents both costly over-engineering and catastrophic under-specification.
You must mathematically map the exact load direction against your carriage block. Calculate the static load rating (C0), which represents the maximum load before permanent plastic deformation of the raceway occurs. Calculate the dynamic load rating (C), which dictates the load at which the system will travel a nominal distance before material fatigue sets in. You cannot ignore moment loads. A 10kg payload extending 500mm away from the carriage creates a massive twisting moment force. Apply strict safety factors based on overhanging payload mass, impact shock, and complex moment forces (pitch, yaw, and roll).
You must calculate exactly how long the system will survive under your specified operating conditions before flaking occurs.
Calculate L10 (Distance Life): This represents the statistical distance 90% of identical systems will travel before raceway material fatigue flaking occurs. The formula for ball-based systems is L = (C / P)^3 * 50km, where C is the dynamic load rating and P is the applied equivalent load. For heavy-duty roller systems, the exponent changes to 10/3.
Convert to Lh (Time Life in Hours): You must convert your L10 travel distance into realistic expected operating hours. Factor in your application stroke length (Ls) and the total cycles per minute (n1).
Apply Derating Factors: Raw calculations assume perfect laboratory conditions. You must heavily modify your results using the Hardness factor (fh) if using soft stainless steel, the Temperature factor (ft) if operating above 100°C, and the Load/Vibration factor (fw) to account for machine impacts. Ignoring these factors guarantees your machine will fail earlier than predicted.
Your machine's physical footprint limits your capacity choices. Short blocks solve tight spatial constraints but severely reduce dynamic load capacity. Long blocks vastly increase your dynamic capacity and moment resistance but eat up travel length. Evaluate flange requirements carefully. Flanged blocks handle wider payloads and allow secure bottom-up bolting directly through the carriage. Narrow blocks save lateral space but require top-down bolting.
When engineering low-profile automation, specify an Im guide. These low-assembly precision blocks reduce the overall stack height, fitting perfectly into extremely tight vertical spatial constraints like optical inspection stages. Furthermore, acoustics matter at high velocities. Specify a "caged ball" design to prevent internal rolling elements from grinding against each other. Ball chain mechanics reduce noise heavily, lower internal heat generation, and allow for much higher maximum acceleration velocities.
Industry-standard architectures follow specific naming syntax across major manufacturers. Understanding these codes prevents procurement errors during the prototype phase. An HG code signifies a Heavy Load design offering equal 4-way load capabilities, suitable for generic CNC use. An EG block represents a low-profile assembly for spatial constraints. WE indicates a Wide Rail. Wide rails handle high torque safely without requiring engineers to align dual parallel rails, saving massive assembly time. MG denotes miniature, lightweight systems designed strictly for medical devices or electronics manufacturing.
Mounting heavy payloads vertically changes the applied physics entirely. Gravity forces a continuous static load onto the carriage block regardless of whether the actuator is moving. This continuous downward force exponentially reduces your calculated L10 distance life compared to a standard horizontal mounting orientation.
Furthermore, lubrication starvation destroys vertical systems fast. Gravity constantly pulls fluid grease and oil downward along the rail track. This leaves the upper rail sections completely dry and exposed to rapid metal-on-metal wear. You must install specialized top-mounted lubrication ports and specify high-viscosity greases designed to cling to vertical surfaces.
Beware of back-driving and structural buckling. Systems may reverse-drive or plummet violently when facility power is cut to the primary servo motor. You must engineer integrated mechanical brakes. Implement U-groove track-roller designs to prevent derailment. Rigorous side-sealing is absolutely mandatory to prevent falling dust and liquid coolant from entering the open block from above.
Industrial environments expose motion systems to corrosive chemicals, extreme heat, and abrasive dust. You must balance structural rigidity against environmental survivability.
Engineers face a brutal hardness paradox in wet environments. A standard linear guide subjected to heavy loads demands raceways hardened to 58-64 HRC for structural integrity. Maximum corrosion resistance, however, demands softer alloys.
300-Series Stainless Steel: This austenitic alloy provides supreme chemical and corrosion resistance for food and medical washdown zones. But it remains exceedingly soft at approximately 20 HRC. It is only viable for sliding polymer bearing inserts. You cannot run steel rolling elements directly on it without immediate plastic deformation.
440C Martensitic Stainless Steel: This represents the industry standard middle ground for wet environments. It undergoes heat treatment to reach roughly 50 HRC. It securely supports rolling elements. However, you must accept a reduced dynamic load capacity. You must calculate a lower hardness factor (fh) which drastically reduces your theoretical service life.
Alternative Plating & Composites: Specify Armaloy, Raydent, or hard chrome plating for standard carbon steel rails to gain surface rust protection without sacrificing core hardness. Specify self-lubricating engineered plastics for extreme chemical washdown areas where metal degradation is unavoidable.
Solid abrasive particulate destroys rolling elements instantly. Wood dust absorbs grease, creating a solid brick inside the carriage. Metal chips scratch the raceway, initiating localized fatigue flaking. Square profile rails require highly complex scraping end-seals and double-lip side seals. In extreme environments, you often need accordion bellows or telescopic metal covers to physically protect the long raceways. Adding these physical contact seals can easily double the system's baseline drag force, requiring a larger drive motor.
Round rails and track-roller wheels perform inherently better in these conditions. Their curved geometries naturally reject solid build-up in dirty factory environments. Continuous wiping action pushes debris away rather than trapping it beneath a flat seal. Wood routing and fiberglass machining heavily favor track-roller setups for this exact reason, drastically lowering maintenance intervals.
Even the finest hardware fails rapidly due to poor field execution. Watch for these common engineering failures during assembly and operation.
Mounting Surface Tolerance: Machining a machine bed with uneven flatness induces severe parasitic preload. Forcing a perfectly straight rail down onto a warped steel bed bends the rail. This invisible stress causes immediate, localized overheating inside the carriage block. It guarantees premature raceway fatigue and excessive motor current draw.
Plastic Shipping Retainers: A frequent and catastrophic field error involves the factory plastic retainers holding the balls inside the carriage during shipping. Installers sometimes leave them on the rail. Sometimes they treat them as mechanical hard stops. These retainers will shatter violently upon full-speed carriage impact, requiring a complete system replacement.
Butt-Joining Errors: Purchasing multiple short rails to build a long track is common for gantry systems exceeding 4 meters. Failing to specify "ground for butt-joining" during the procurement phase causes disaster. Standard rails feature chamfered edges. Butt-joining them leaves a massive gap. The carriage block will derail or constantly micro-crash at the misaligned steel seams, stripping the bearings.
Interchangeability Risks: Standard precision blocks are uniquely lapped to their mated rail at the factory to achieve the specified preload. Mixing random blocks and rails compromises both preload and dimensional precision. You can only mix them if the manufacturer explicitly marks the series as an "Interchangeable Grade."
Inadequate Lubrication Schedules: Factory preservation oil is not operating grease. Running a system on shipping oil burns up the bearings within hours. You must inject lithium soap grease before operation and establish strict relubrication intervals based on total travel distance, not just time.
Calculate your static, dynamic, and moment loads mathematically before selecting a rail profile or carriage block size.
Execute a complete L10 distance calculation and translate it directly into realistic Lh operating hours based on your machine's exact duty cycle and environmental derating factors.
Audit your operational environment carefully; default to standard square profile rails for high-rigidity automation, but immediately pivot to round shafts or track-rollers if abrasive dust or poor mounting tolerances are present.
Design specific gravity mitigations if operating on a vertical Z-axis, integrating mechanical power-off brakes and specialized vertical lubrication channels into your CAD drawings early.
A: Yes, square profile guides with 4-row ball designs offer omni-directional load capacity. They handle radial, reverse-radial, and lateral moment loads equally well regardless of physical orientation, provided you accurately calculate the overhanging moment forces applied to the block.
A: This is typically caused by specifying a preload class (like ZB) that is far too high for your low-mass payload. Alternatively, bolting the rail to an un-machined, uneven mounting surface permanently warps the rail, artificially increasing internal friction and generating severe heat.
A: Sliding guides use solid polymer inserts with zero moving parts, rendering them immune to dust and requiring no lubrication, but they generate high friction (coefficient > 0.2). Rolling guides use internal recirculating balls for ultra-low friction (~0.002) but demand pristine environments and constant grease.
A: No. Even if the outer profile dimensions look visually similar, the internal raceway geometry, ball sizing, and contact angles differ wildly between brands. Only perfectly matched sets or manufacturer-verified interchangeable lines will operate safely without binding.
A: The dynamic load capacity drops exponentially. If you utilize a 440C stainless steel rail yielding a hardness of 50 HRC for corrosion resistance, the mathematical hardness factor in your lifespan calculation formula mandates a severe de-rating of the system's expected operational life.
