Sub-micron positioning errors destroy surface finish quality. Thermal expansion ruins precise part tolerances. These represent the primary enemies in any modern machining environment. Standard linear motion components routinely fail under high-speed, continuous-duty operations. They experience accelerated wear and severe dynamic backlash when subjected to constant vibration. This deterioration forces frequent machine downtime. The resulting Total Cost of Ownership quickly becomes unacceptable for competitive manufacturing facilities.
You must upgrade to purpose-built, highly engineered hardware. Installing a high-precision Ball Screw fundamentally alters machine reliability. It handles intense axial loads without yielding. This guide breaks down the mechanical realities behind linear motion. We provide standard evaluation frameworks alongside critical engineering calculations. You will learn how to accurately specify the correct hardware for complex routing. By addressing thermal growth and structural rigidity, you secure long-term operational stability.
Preload Constraints: Dynamic rigidity is achieved through engineered preload, but exceeding 8% of the dynamic load capacity in CNC applications causes rapid thermal failure.
Accuracy Dictates Cost: Specifying between ISO/JIS C3 (precision CNC) and C5 (general automation) ball screw accuracy grades must align strictly with the VMC’s target application to avoid overpaying.
Thermal Decoupling: For high-speed continuous milling, active nut cooling is replacing hollow-shaft cooling to prevent the transfer of frictional heat into the machine bed.
Manufacturer Capabilities: A reliable ball screw manufacturer must provide verified CMM (Coordinate Measuring Machine) reporting, dynamic load testing, and traceability.
You subject linear axes to intense forces inside a vertical machining center. The Z-axis endures heavy gravitational and axial cutting loads. Rapid acceleration and deceleration profiles continually stress the drive components. Cutting heads rapidly reverse direction, requiring massive torque from servo motors. Constant vibration degrades mechanical surface contact areas over time. The industry baseline expects a fatigue life of 20,000 operational hours. This equals roughly 50,000 kilometers of total travel distance. Standard actuation methods struggle to meet these rigorous demands.
Engineers evaluate multiple actuation technologies before finalizing a machine design. Each mechanism presents distinct mechanical trade-offs. Pneumatic and hydraulic systems offer high force but suffer inherent flaws. Air compression creates a frustrating "stick-slip" phenomenon during micro-positioning. Hydraulics require messy fluid filtration systems, noisy pumps, and complex pipe networks. Mechanical screw actuation eliminates these issues while delivering mechanical efficiency exceeding 90 percent.
Rack and pinion systems provide infinite travel length for massive gantry mills. However, gearboxes inherently produce backlash upon reversing direction. Precision screws eliminate this mechanical slop entirely. They deliver superior positional repeatability and enable zero-backlash multi-axis contouring. Linear motors present another modern alternative for high-end equipment. They offer incredible travel speeds and eliminate physical contact. Yet, linear motors have significantly lower thrust density per cubic inch. They also carry much higher implementation costs compared to high-stiffness rotating screw systems.
We map these performance variables below to highlight the optimal use case for each technology.
| Actuation Technology | Max Thrust Density | Speed Capability | Backlash Profile | Implementation Cost |
Mechanical Screw | Very High | Moderate to High | Zero (with Preload) | Moderate |
Linear Motor | Low | Extremely High | Zero | Very High |
Rack & Pinion | High | High | Moderate (Gear Slop) | Low to Moderate |
Hydraulic Cylinder | Extremely High | Low | High (Fluid Compressibility) | High (Requires Pump Station) |

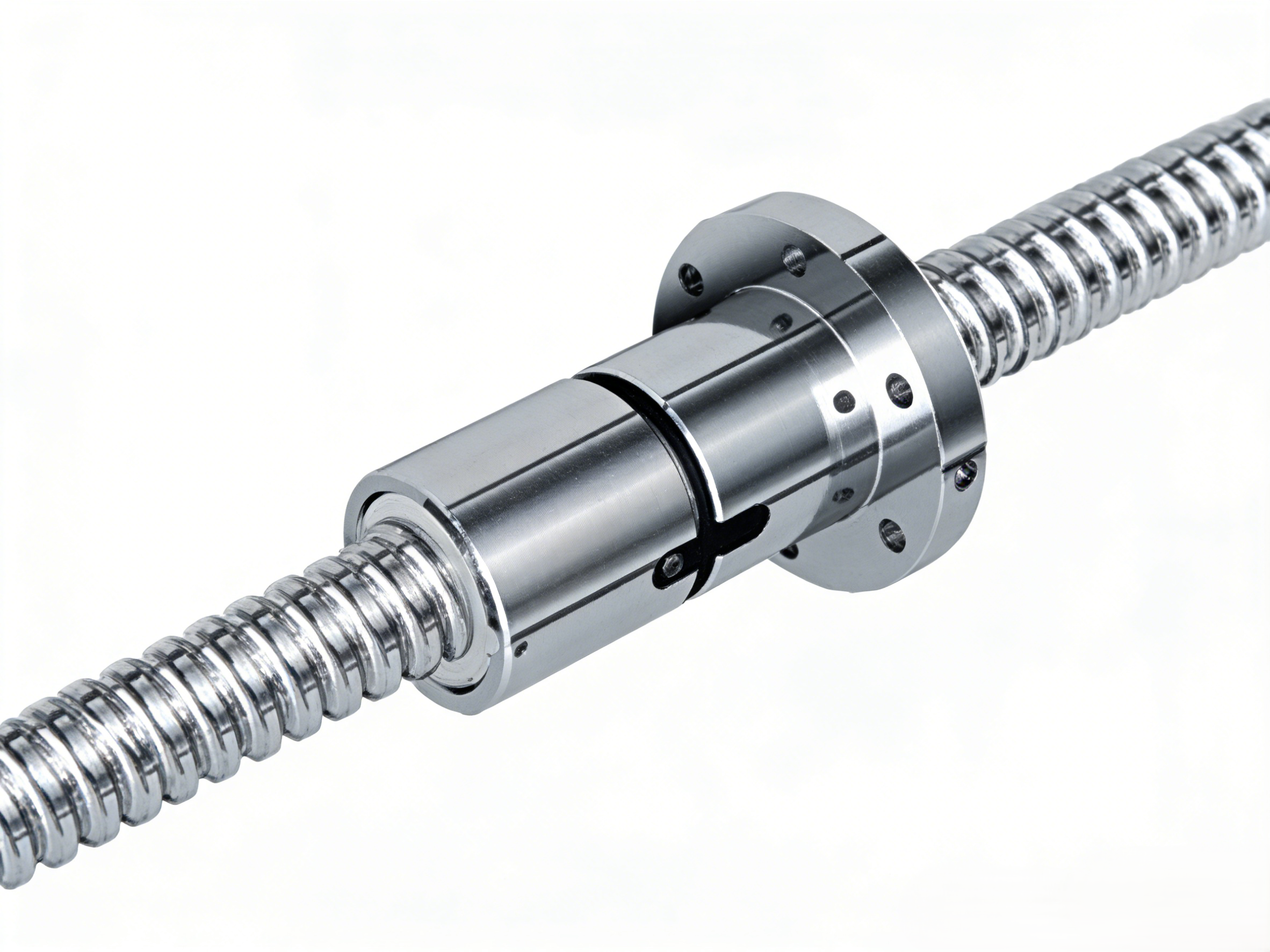

An engineered ball screw assembly consists of three highly interconnected components. The threaded screw shaft acts as the inner raceway. The ball nut housing serves as the outer raceway. Internal recirculating ball bearings travel continuously between them. This system smoothly translates rotary motor torque into powerful linear thrust with minimal friction.
Modern thread grooves utilize a distinct Gothic arch design rather than a simple semi-circle. This profile creates a strict four-point contact mechanic. It distributes heavy axial loads bidirectionally. Traditional radial grooves cannot handle alternating push-pull forces as effectively. The Gothic arch ensures the bearings stay centered under heavy loads, maintaining a rigid 45-degree contact angle against the steel raceways.
Two primary geometric measurements dictate overall performance capability. The Pitch Circle Diameter (dm) represents the center-to-center distance of opposing bearings across the shaft. This metric determines the maximum safe travel speed and rotational limits. The Root Diameter measures the narrowest solid cross-section of the inner shaft. A larger Root Diameter establishes a much higher critical vibration threshold, preventing deflection during aggressive milling operations.
Bearings must circulate endlessly to maintain continuous linear travel. Manufacturers design various internal routing pathways to achieve this continuous loop. The operational environment and space constraints dictate the required recirculation architecture.
Tube-Type (Profile Ball Groove): This represents the economic industry standard. External steel tubes scoop bearings out of the load zone and return them to previous threads. It functions reliably up to 100,000 dN speed limits but requires a larger external housing footprint.
Deflector/Internal Type: This design routes bearings over the thread crest entirely within the nut body using steel inserts. It fits perfectly in compact spaces. It accommodates short leads and handles speeds up to 150,000 dN with smooth operation.
End-Cap Type: Bearings travel the entire length of the nut before returning through a bored channel inside the nut wall. This configuration is required for high-lead, multi-start thread mathematics used in rapid-traverse machinery.
End-Deflector Type: This represents the pinnacle for high-speed machining. Modern iterations manage rotational speeds up to 180,000 dN. They reduce operational noise by up to 6 decibels. The integrated design shrinks the overall nut footprint by 30 percent while maintaining extreme rigidity.
Understanding ball screw accuracy grades prevents massive budget overruns. Engineers evaluate accuracy through precise lead deviation measurements. The standard metric evaluates total deviation over a 300mm length of thread. This is known as the e300 value under strict JIS and ISO 3408 standards. Identifying the correct tolerance tier ensures the machine performs exactly as designed without inflating the bill of materials.
Manufacturing methods fundamentally alter the price and performance ceiling of the final product. Ground shafts undergo intense high-carbon alloy induction heat treatment. A specialized grinding wheel cuts the thread profile directly into the hardened steel blank. The manufacturer actively cools the grinding zone to prevent microscopic metallurgical changes. This process achieves positioning accuracy well within the ±0.0005 in/ft range. High-speed, multi-axis machining absolutely requires this ground precision to prevent contouring errors.
Rolled shafts utilize a cold-rolling extrusion process. Heavy hydraulic dies press the thread profile into unhardened steel blanks at room temperature. It remains highly cost-effective for simple movement applications. However, the extrusion process lacks tight tolerance control over the thread pitch. It is mechanically disqualified from synchronous multi-axis CNC contouring because the accumulated lead error creates visible surface defects on finished parts.
Precision Rolled manufacturing offers a hybrid tier. Specialized dies and secondary finishing achieve roughly ±0.001 in/ft accuracy. This bridges the cost-to-performance gap nicely. It works well for less demanding auxiliary machine axes, tool changers, or basic material handling systems.
You must align the JIS C-grade directly with the application requirements. Over-specifying drains project budgets unnecessarily. Under-specifying destroys part yields and causes tolerance stacking issues.
| Accuracy Grade | Typical e300 Deviation | Ideal Application Environment |
C0 - C3 | ≤ 0.008 mm | Aerospace 5-axis milling, medical component machining, high-end VMCs. |
C5 | ≤ 0.018 mm | Standard CNC routing, automated packaging, precision material handling. |
C7 - C10 | ≤ 0.050 mm+ | General factory automation, simple lift mechanisms, non-critical actuators. |
Pushing feed rates higher generates exponential physical stress. Engineers mitigate these destructive forces through specialized component modifications. Frictional heat and mechanical backlash remain the primary targets for optimization.
High RPMs generate immense frictional heat inside the bearing raceways. Steel components physically expand as the temperature rises. We calculate this thermal expansion using the standard formula where the change in length equals the material expansion coefficient multiplied by the initial length and the change in temperature. Even a minor 5-degree Celsius increase on a 1000mm shaft causes significant linear growth. This thermal expansion skews the lead pitch and destroys linear positioning accuracy. Previously, engineers bored a hollow core through the shaft to pump cooling fluid. This required very expensive, leak-prone rotary unions.
Modern machines utilize direct-to-nut active cooling technology. Fluid channels route directly through the stationary housing block. This creates strict thermal decoupling. It isolates and removes frictional heat right at the source before it transfers into the screw shaft. The shaft remains thermally stable. This preserves surface milling quality during prolonged high-speed production cycles and eliminates the need for complex software compensation algorithms.
Backlash is the lost motion when an axis reverses direction. Preloading eliminates this play by wedging the bearings tightly against the grooves. Various strategies achieve distinct rigidity levels based on the machine's intended duty cycle.
P-Type (Oversized ball): Engineers insert balls slightly larger than the groove space. It is simple and cost-effective. Maximum preload is strictly restricted to 3 percent of the dynamic load capacity.
Z-Type (Offset lead): A single solid nut features a slight pitch shift in the center threads. This internal offset forces opposing bearing contact. It is ideal for medium-rigidity requirements in compact spaces.
D-Type (Double nut): Two separate nuts are tensioned against each other using a precision ground spacer. This remains the absolute gold standard for heavy machining. It safely achieves up to 10 percent dynamic capacity preload for maximum structural rigidity.
Bearings traveling in the same direction rub against one another. This opposing surface velocity generates heat and accelerates wear. Inserting slightly smaller spacer balls between load-bearing balls prevents this direct contact. Alternatively, integrated plastic retaining cages keep bearings separated entirely. Cages also help retain lubricating grease directly inside the load zone, extending maintenance intervals.
Advanced designs now incorporate ceramic ball bearings. Ceramic material weighs significantly less than steel. This reduces the total rotating mass within the nut housing. Ceramic also resists thermal expansion entirely and runs much cooler under high speeds. The trade-off is a marginal drop in absolute static load capacity. However, the extended lifespan, lower drag torque, and thermal stability often justify the upgrade for elite milling centers.
Sizing linear motion hardware requires strict mathematical validation. Guessing leads to catastrophic machine failure and massive replacement costs. Use this five-step engineering framework to ensure proper component specification from the beginning of the design phase.
Determine Load Ratings: Map out the exact mass and cutting forces to find the required Basic Dynamic Load Rating. Calculate Euler's critical buckling load for vertical setups.
Analyze Speed Limitations: Calculate the critical speed threshold and the maximum allowable dN value for the proposed nominal diameter.
Select the Lead: Balance the need for rapid traverse speeds against the motor's required mechanical lifting advantage.
Design the Mounts: Choose between flange-mount or cylindrical configurations based on available carriage space and rigidity needs.
Specify Environmental Protections: Select the correct wiper seals and anti-corrosion treatments based on coolant exposure and metal chip volume.
You must calculate the Basic Dynamic Load Rating (Ca). This represents the constant moving force applied during cutting operations based on a fatigue life of one million revolutions. You also need the Static Load Rating (Coa). This defines the maximum stationary force before permanent metal deformation occurs on the raceways.
Vertically mounted Z-axes require specific buckling load calculations. Gravity pulls the spindle head down, but driving the tool into the workpiece creates severe compressive force upward. As shaft length increases, compressive strength drops rapidly. You must calculate Euler's critical buckling load to prevent the shaft from bending under heavy drilling pressure. The end-fixity factor changes dramatically depending on whether you use fixed or supported end bearings.
Rotational velocity faces strict physical limits regardless of motor power. You must calculate the shaft's Critical Speed. Engineering rules dictate that operating speeds must never exceed 80 percent of the shaft's natural resonance frequency. Exceeding this triggers violent whipping, which immediately destroys the end bearing mounts.
You must also monitor the maximum dN Value Limit. Multiply the Nominal Diameter in millimeters by the maximum anticipated RPM. Precision ground grades must remain ≤70,000 dN. Standard rolled grades must stay ≤50,000 dN. Surpassing these limits creates excessive centrifugal force that destroys the recirculation tubes and ejects the bearings.
Lead defines the linear distance traveled during one full shaft rotation. Selecting the correct lead involves a strict engineering trade-off. A higher lead drastically increases maximum linear travel speed, which reduces non-cutting cycle times. However, steeper thread pitches reduce the mechanical advantage. A steep load angle severely reduces the vertical lifting capacity of your Z-axis motor, forcing you to specify larger, more expensive servo drives.
How the nut attaches to the machine carriage directly impacts overall rigidity. Flange-mount configurations offer superior stiffness. They provide a wide, stable bolting pattern for ease of integration into cast iron saddles. Cylindrical configurations lack a mounting flange entirely. They utilize external threading or precision keyways instead. Cylindrical designs remain necessary for spatially restricted machine envelope designs where a large flange would interfere with other components.
Contamination destroys bearing raceways incredibly quickly. Non-contact plastic seals work well for cleanroom environments and semiconductor equipment. Heavy-duty lip seals and rigid brush wipers are mandatory for metal machining. They physically sweep away highly abrasive metal chips and chemical cutting fluids before they enter the nut housing.
Monitor ambient heat generation inside the machine cabinet. The maximum safe operational temperature limit sits near 80°C (176°F). Standard plastic recirculation components and seals begin to melt beyond this point. Furthermore, you must specify anti-corrosion surface treatments like Raydent or black oxide if harsh coolant pooling is expected along the lower axes.
Finding a reliable ball screw manufacturer secures your production timeline and protects your equipment warranty. Low-tier vendors cut corners on hardening processes and grind tolerances. This hidden flaw causes rapid premature wear and immediate backlash. You must vet partners using strict quality control criteria.
A credible vendor utilizes advanced Coordinate Measuring Machines on the factory floor to verify every shipment. Request detailed documentation regarding dynamic runout tolerances. Ask for torque consistency charts spanning the entire thread length. Verify they perform extreme load simulation testing on random sample batches before approving export.
Inspect their material selection protocols. Hardened high-carbon steel alloys are mandatory for load-bearing raceways. Stainless steel grades should be available for corrosive washdown environments. Ask about advanced friction-reducing surface coatings that extend maintenance intervals.
Evaluate vendors based on overall maintenance and logistics support. They should offer custom end-machining capabilities to fit your specific motor mounts perfectly. Confirm their typical lead times for replacement parts to minimize future downtime. Finally, request their official maintenance protocols. A top-tier manufacturer provides strict flushing instructions, often specifying pure white kerosene for debris removal, alongside specific lithium soap grease recommendations.
The overall performance ceiling of your machining equipment is entirely bottlenecked by linear motion integrity. Cost-cutting on precision grades immediately guarantees scrapped parts and out-of-tolerance geometry. Ignoring thermal expansion controls ensures unpredictable surface finishes during long, continuous runs. Upgrading your actuation hardware directly protects your production yields and extends the lifespan of the entire machine.
Calculate the precise Basic Dynamic Load Rating and Euler's buckling load limits for your heaviest axis.
Determine the strict dN limits and maximum critical speed based on your target traverse rates and nominal shaft diameter.
Select a double-nut (D-Type) preloaded assembly utilizing 5% to 8% dynamic capacity preload for maximum rigidity.
Specify active nut cooling channels if your duty cycle requires prolonged high-speed, continuous milling.
Contact a certified manufacturer to request verified CMM reporting and custom end-machining for your specific motor mounts.
A: Many advanced industries rely heavily on specific ball screw applications. You will find them in semiconductor cleanrooms driving precise wafer handling robotics. Aerospace engineers use them for critical flight control actuators and wing flap deployment. They also provide the micro-stepping accuracy required in industrial 3D printing beds and highly specialized surgical robotics where smooth motion is non-negotiable.
A: Pitch measures the direct physical distance between two adjacent thread crests. Lead measures the actual linear distance the nut travels in one 360-degree rotation. In a single-start thread design, pitch and lead are completely identical. In multi-start thread mathematics, the lead equals the pitch multiplied by the number of independent thread starts wrapped around the shaft.
A: High-stress routing requires maximum structural rigidity. Engineers typically specify a heavy preload between 5% to 8% of the basic dynamic load rating. You must calculate this carefully. Exceeding the 8% threshold drastically increases baseline friction. This excessive drag causes catastrophic thermal failure, lubricant breakdown, and rapid raceway destruction within the nut assembly.
A: Pushing rotational velocity past the critical speed limit aligns with the shaft's natural harmonic resonance. This triggers severe, uncontrollable lateral vibration known as "whipping." The violent shaking immediately bends the inner steel shaft, shatters the internal plastic recirculation components, and causes total, irreversible destruction of both the steel ball bearings and the end support mounts.
A: Baseline operational guidelines recommend comprehensive inspection and re-lubrication every 2 to 3 months. Alternatively, service it based on total duty-cycle travel distance. You must follow the strict rule against mixing different grease thickeners. Always limit standard operational environments to under 80°C to prevent degrading the lubricant's baseline viscosity and base oil separation.
