Standard Planetary Roller Screw by - Product Series

Roller screw pairs can be divided into standard planetary roller screw pairs, circulating planetary roller screw pairs, reverse planetary roller screw
pairs and other types according to the structure and movement characteristics.There are essential differences in the operation mode of the roller:
the roller of the standard planetary roller screw pair has no axial displacement relative to the nut when it is rotating and rotating.
In addition to rotating and rotating, the roller of the circulating planetary roller screw has a cyclic movement of the axis upward relative to the nut.
The roller of the reverse planetary roller lead screw pair has no axial displacement relative to the lead screw during revolution and rotation.

Quantity:
Availability:





Inquire Add to Basket

Model:
GZRFS
Brand:
yi gong

Product Description

Standard Planetary Roller Screw By-Product Series

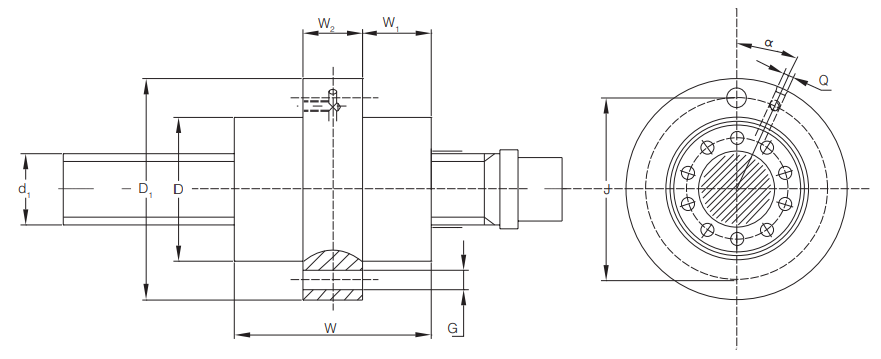

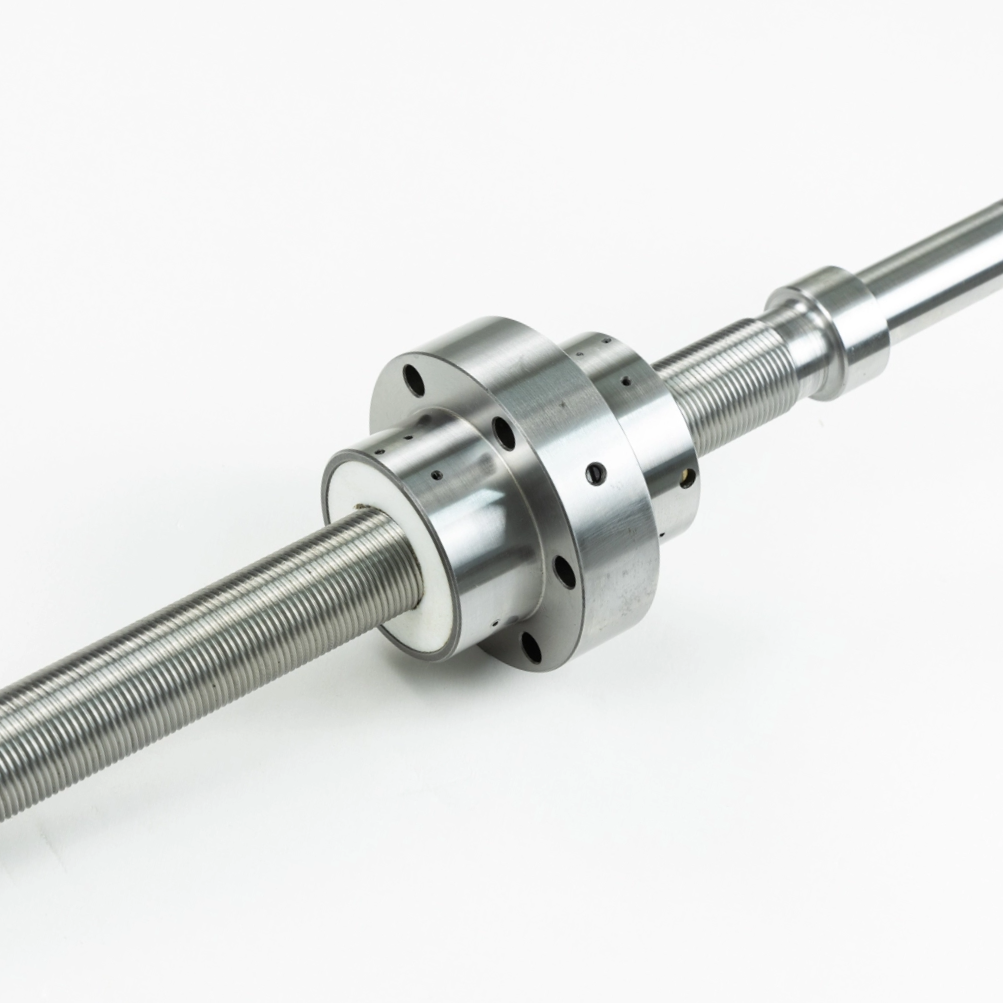

Standard planetary roller screw pair (GZR) with nut flange in center and no axial preload.

b12b1d2a751d50f65626005740bbced8

Unit: mm
Name	N^① -	d₁ mm	D mm	W mm	W₁ mm	W₂ mm	D₁ mm	J mm	G mm	Q -	α °	Ca^①kN	Coa^①kN
GZRFS 15×05	5	15.6	35	50	16	18	56	45	6×φ5.8	M6	30	28.2	51.5
GZRFS 15×08	5	15.5	35	50	16	18	56	45	6×φ5.8	M6	30	30.6	50.2
GZRFS 18×05	5	18.3	40	58	20	18	62	51	6×φ5.8	M6	30	35.3	65.9
GZRFS 18×06	5	18.4	40	58	20	18	62	51	6×φ5.8	M6	30	37	67
GZRFS 20×05	5	19.8	44	65	23	18	64	53	6×φ5.8	M6	30	46.4	97.5
GZRFS 20×10	5	20.2	44	65	23	18	64	53	6×φ5.8	M6	30	50.1	87.6
GZRFS 21×05	5	21.3	45	64	23	18	68	56	6×φ5.8	M6	30	58	100
GZRFS 21×10	5	21.7	45	64	23	18	68	56	6×φ5.8	M6	30	63.3	91.2
GZRFS 25×05	5	24.3	53	78	29	20	84	70	6×φ6.8	M6	30	72.8	133.7
GZRFS 25×10	5	24.7	53	78	29	20	84	70	6×φ6.8	M6	30	84.2	129.2
GZRFS 27×05	5	27.3	55	79	29	20	83	68	6×φ6.8	M6	30	88	171
GZRFS 27×10	5	27.7	55	79	29	20	83	68	6×φ6.8	M6	30	100	166
GZRFS 30×05	5	30.3	64	85	29	27	97	81	6×φ9	M6	30	88.4	168.1
GZRFS 30×10	5	30.7	64	85	29	27	97	81	6×φ9	M6	30	106.3	174.4
GZRFS 30×20	5	31.4	64	85	29	27	97	81	6×φ9	M6	30	123.3	177.3
GZRFS 36×5	5	36.3	74	96	33	30	110	92	6×φ9	M6	30	123.6	268.8
GZRFS 36×8	5	36.4	74	96	33	30	110	92	6×φ9	M6	30	139.2	266.4
GZRFS 36×10	5	36.7	74	96	33	30	110	92	6×φ9	M6	30	148.4	273.6
GZRFS 36×6	6	36.3	68	80	26.5	27	102	85	6×φ9	M6	30	90.5	179
GZRFS 36×12	6	36.7	68	80	26.5	27	102	85	6×φ9	M6	30	97.5	174
GZRFS 39×05	5	39.3	80	100	33.5	33	124	102	6×φ11	M6	30	129.2	268.9
GZRFS 39×10	5	39.7	80	100	33.5	33	124	102	6×φ11	M6	30	152.6	270.9
GZRFS 39×15	5	40	80	100	33.5	33	124	102	6×φ11	M6	30	167.6	272.9
GZRFS 39×20	5	40.4	80	100	33.5	33	124	102	6×φ11	M6	30	172.8	260.9
GZRFS 42×05	5	42.3	86	118	41.5	35	130	109	6×φ11	M6	30	158.4	343.4
GZRFS 42×10	5	42.7	86	118	41.5	35	130	109	6×φ11	M6	30	185.3	341.2
GZRFS 48×05	5	48 .3	100	127	45	37	150	127	6×φ13.5	M8×1	30	195.6	482.3
GZRFS 48×08	5	48.4	100	127	45	37	150	127	6×φ13.5	M8×1	30	218.2	471.6
GZRFS 48×10	5	48.7	100	127	45	37	150	127	6×φ13.5	M8×1	30	231.5	475.1
GZRFS 48×15	5	49	100	127	45	37	150	127	6×φ13.5	M8×1	30	257.8	486.4
GZRFS 48×20	5	49.4	100	127	45	37	150	127	6×φ13.5	M8×1	30	265.7	462.3
GZRFS 48×06	6	48.3	88	99	32	35	122	104	6×φ11	M8×1	30	169	436
GZRFS 48×12	6	48.7	88	99	32	35	122	104	6×φ11	M8×1	30	185	435
GZRFS 48×20	6	49	88	99	32	35	122	104	6×φ11	M8×1	30	212	412
GZRFS 48×24	6	49.2	88	99	32	35	122	104	6×φ11	M8×1	30	255	448
GZRFS 51×05	5	51.3	102	139	52	35	147	124	6×φ13.5	M8×1	30	256	640
GZRFS 60×10	5	60.7	122	152	53.5	45	180	150	6×φ17.5	M8×1	30	338.6	779.7
GZRFS 60×15	5	61	122	152	53.5	45	180	150	6×φ17.5	M8×1	30	373	783
GZRFS 60×20	5	61.4	122	152	53.5	45	180	150	6×φ17.5	M8×1	30	395	785.7
GZRFS 60×25	5	61.8	122	152	53.5	45	180	150	6×φ17.5	M8×1	30	405	817
GZRFS 75×10	5	75.7	150	191	73	45	210	180	8×φ17.5	M8×1	22.5	505	1486
GZRFS 75×15	5	76	150	191	73	45	210	180	8×φ17.5	M8×1	22.5	560	1490
GZRFS 75×20	5	76.4	150	191	73	45	210	180	8×φ17.5	M8×1	22.5	572	1495
① : Ca - dynamic load rating; Coa - static load rating; N - Number of threads

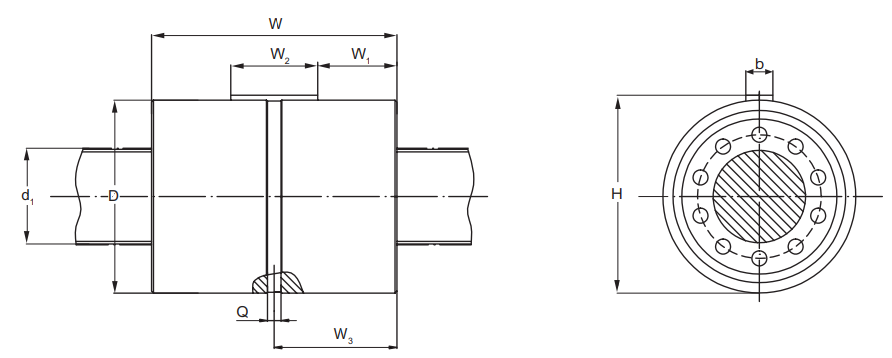

Nut flangeless, non-axial preload planetary roller screw pair (GZR) product line.

4178a6eaf355b20e888e3faea107452f

Unit: mm
Name	N^① -	d₁ mm	D mm	W mm	W₁ mm	W₂ mm	W₃ mm	H mm	b mm	Q mm	Ca^①kN	Coa^①kN
GZRCS 15×05	5	15.6	35	50	17	16	25	36.5	4	5	28.2	51.5
GZRCS 15×08	5	15.5	35	50	17	16	25	36.5	4	5	30.6	50.2
GZRCS 18×05	5	18.3	40	58	20	18	29	42	5	5	35.3	65.9
GZRCS 18×06	5	18.4	40	58	20	18	29	42	5	5	37	67
GZRCS 20×05	5	19.8	44	65	22.5	20	32.5	46	5	5	46.4	97.5
GZRCS 20×10	5	20.2	44	65	22.5	20	32.5	46	5	5	50.1	87.6
GZRCS 21×05	5	21.3	45	64	22.5	20	32.5	47	5	5	58	100
GZRCS 21×10	5	21.7	45	64	22.5	20	32.5	47	5	5	63.3	91.2
GZRCS 25×05	5	24.3	53	78	26.5	25	39	55.5	6	5	72.8	133.7
GZRCS 25×10	5	24.7	53	78	26.5	25	39	55.5	6	5	84.2	129.2
GZRCS 27×05	5	27.3	55	79	25.5	28	39.5	57.5	6	5	88	171
GZRCS 27×10	5	27.7	55	79	25.5	28	39.5	57.5	6	5	100	166
GZRCS 30×05	5	30.3	64	85	26.5	32	42.5	66.5	6	5	88.4	168.1
GZRCS 30×10	5	30.7	64	85	26.5	32	42.5	66.5	6	5	106.3	174.4
GZRCS 30×20	5	31.4	64	85	26.5	32	42.5	66.5	6	5	123.3	177.3
GZRCS 36×05	5	36.3	74	96	30	36	48	76.5	6	5	123.6	268.8
GZRCS 36×08	5	36.4	74	96	30	36	48	76.5	6	5	139.2	266.4
GZRCS 36×10	5	36.7	74	96	30	36	48	76.5	6	5	148.4	273.6
GZRCS 36×06	6	36.3	68	80	27.5	25	40	70	5	5	90.5	179
GZRCS 36×12	6	36.7	68	80	27.5	25	40	70	5	5	97.5	174
GZRCS 39×05	5	39.3	80	100	30	40	50	83	8	7	129.2	268.9
GZRCS 39×10	5	39.7	80	100	30	40	50	83	8	7	152.6	270.9
GZRCS 39×15	5	40	80	100	30	40	50	83	8	7	167.6	272.9
GZRCS 39×20	5	40.4	80	100	30	40	50	83	8	7	172.8	260.9
GZRCS 42×05	5	42.3	86	118	36.5	45	59	89	8	7	158.4	343.4
GZRCS 42×10	5	42.7	86	118	36.5	45	59	89	8	7	185.3	341.2
GZRCS 48×05	5	48 .3	100	127	41	45	63.5	103	8	7	195.6	482.3
GZRCS 48×08	5	48.4	100	127	41	45	63.5	103	8	7	218.2	471.6
GZRCS 48×10	5	48.7	100	127	41	45	63.5	103	8	7	231.5	475.1
GZRCS 48×15	5	49	100	127	41	45	63.5	103	8	7	257.8	486.4
GZRCS 48×20	5	49.4	100	127	41	45	63.5	103	8	7	265.7	462.3
GZRCS 48×06	6	48.3	88	99	27	45	49.5	91	8	7	169	436
GZRCS 48×12	6	48.7	88	99	27	45	49.5	91	8	7	185	435
GZRCS 48×20	6	49	88	99	27	45	49.5	91	8	7	212	412
GZRCS 48×24	6	49.2	88	99	27	45	49.5	91	8	7	255	448
GZRCS 51×05	5	51.3	102	139	47	45	69.5	105	8	7	256	640
GZRCS 60×10	5	60.7	122	152	53.5	45	76	125	10	10.5	338.6	779.7
GZRCS 60×15	5	61	122	152	53.5	45	76	125	10	10.5	373	783
GZRCS 60×20	5	61.4	122	152	53.5	45	76	125	10	10.5	395	785.7
GZRCS 60×25	5	61.8	122	152	53.5	45	76	125	10	10.5	405	817
GZRCS 75×10	5	75.7	150	191	64	63	95.5	153	10	10.5	505	1486
GZRCS 75×15	5	76	150	191	64	63	95.5	153	10	10.5	560	1490
GZRCS 75×20	5	76.4	150	191	64	63	95.5	153	10	10.5	572	1495
① : Ca - dynamic load rating; Coa - static load rating; N - Number of threads
