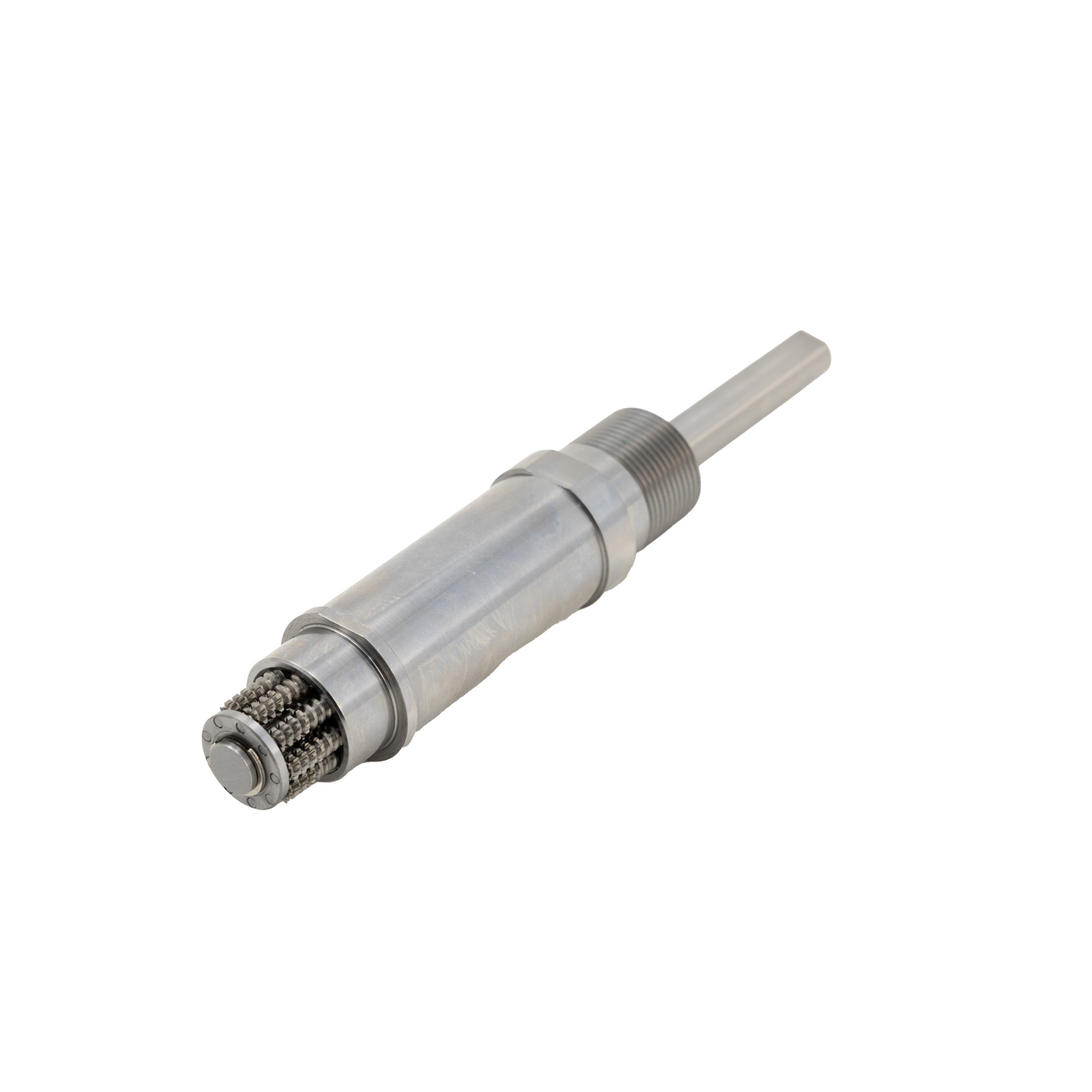

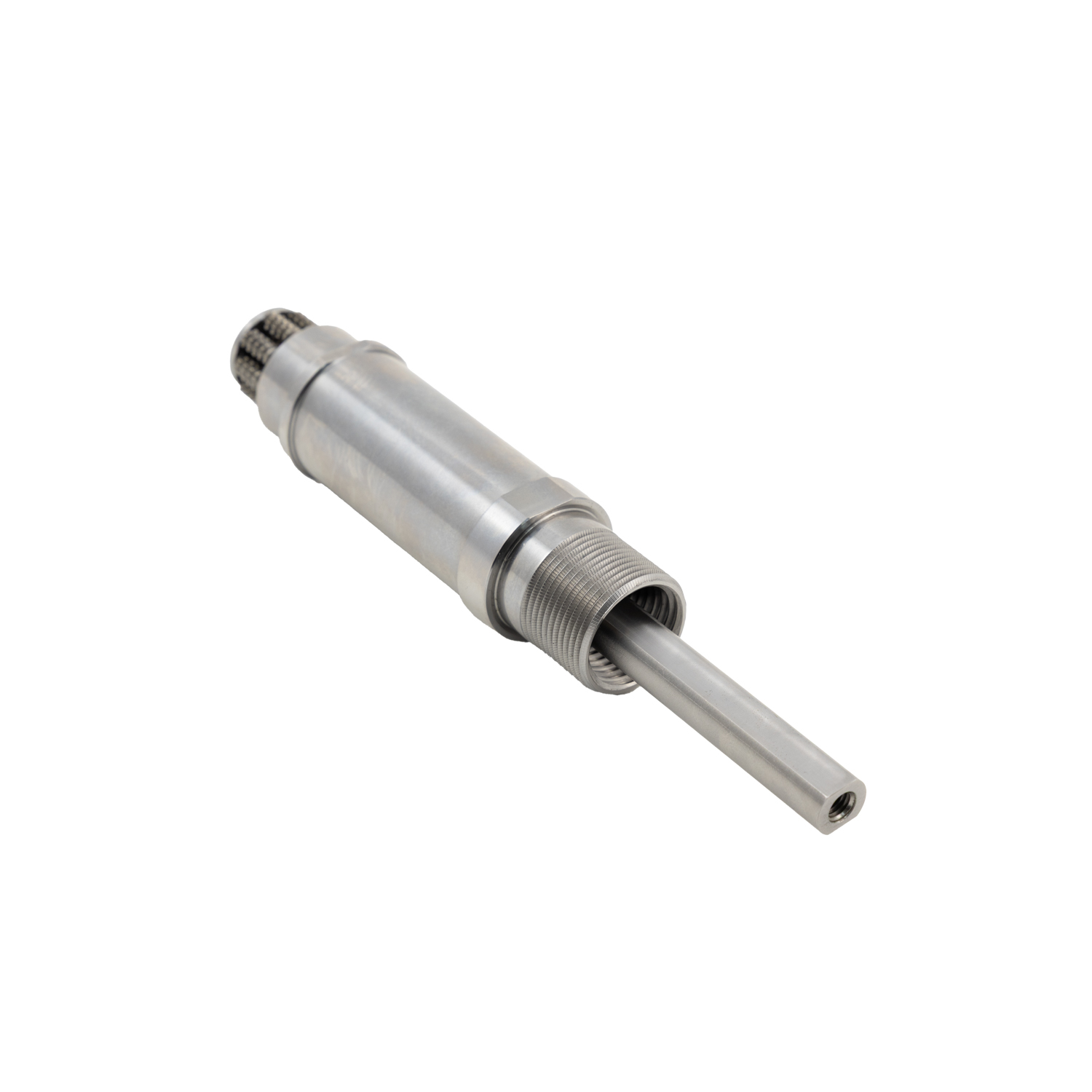

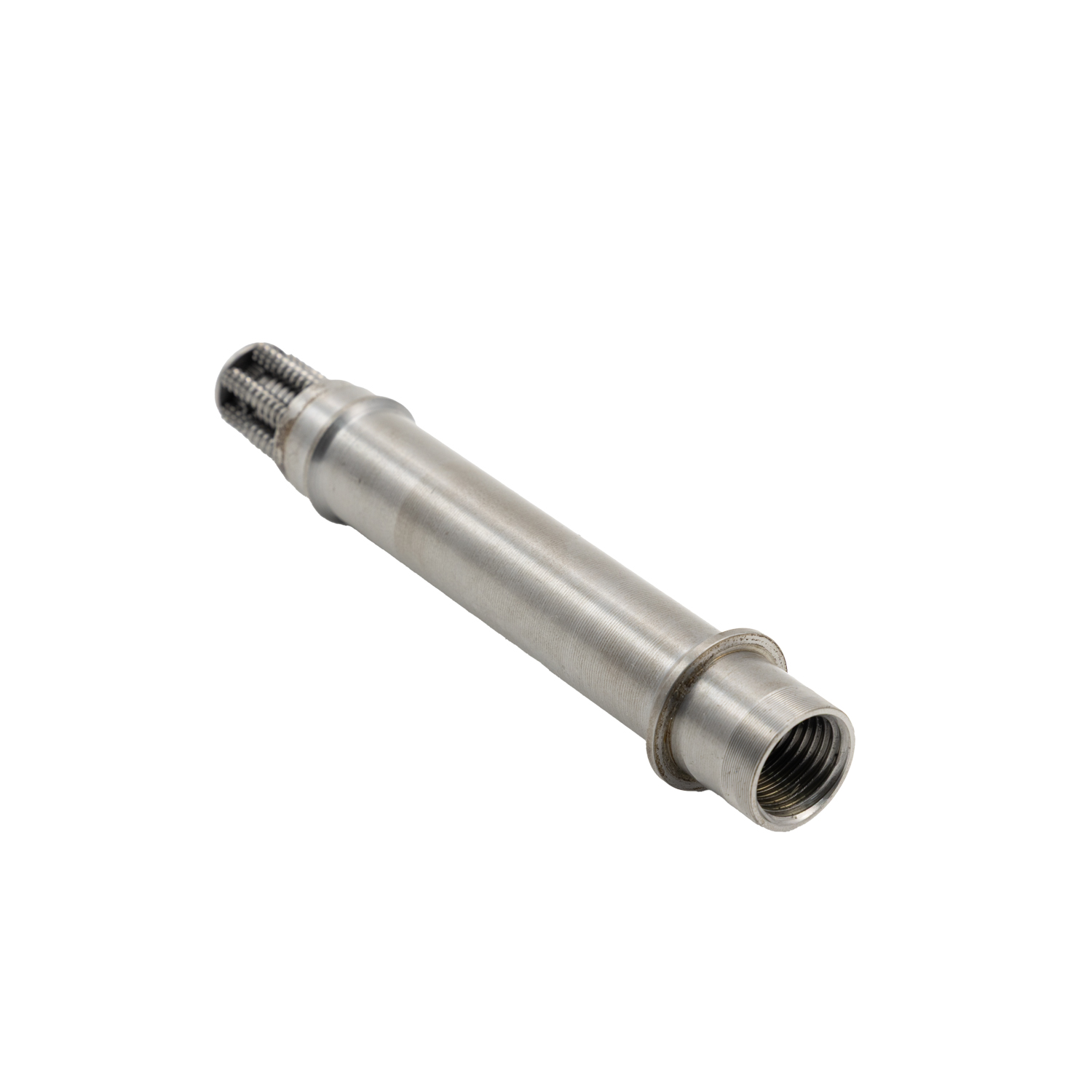

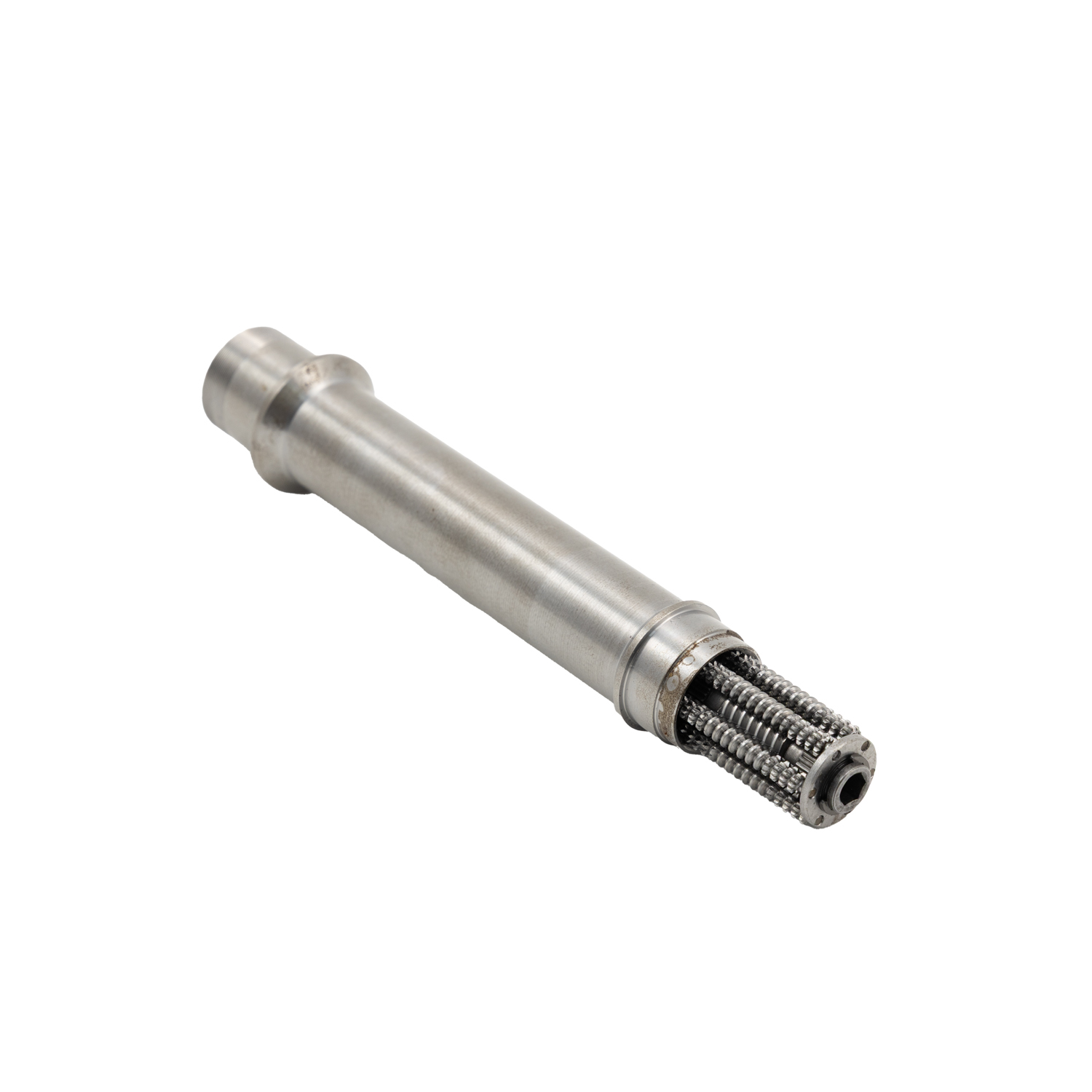

Reverse Planetary Roller Screw By-Product Series |
The reverse planetary roller screw (GZI) series of nuts without axial preloading.
| Unit:mm | ||||||

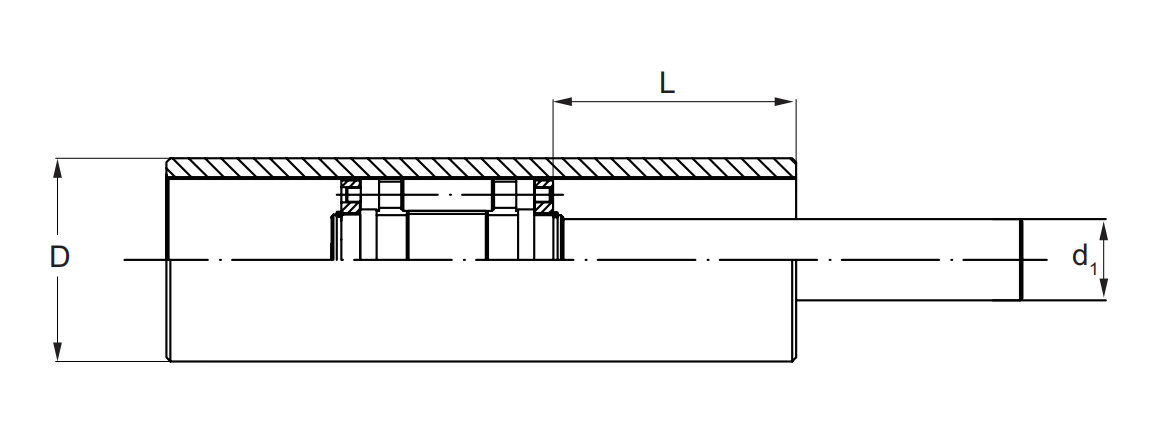

Name | N① | D | d1max | Itinerary S② | Ca①kN | Coa①kN |
*GZI1202 | 3 | 26 | 10 | 25 | 14.7 | 23.9 |
*GZI1206 | 3 | 26 | 10 | 20 | 24.3 | 27.3 |
*GZI1503 | 3 | 32 | 13 | 41 | 26.3 | 45.8 |
*GZI1505 | 3 | 32 | 13 | 36 | 29.8 | 44.9 |
*GZIS1508 | 3 | 32 | 13 | 31 | 32.2 | 41.8 |
*GZIS2403 | 3 | 50 | 21 | 60 | 61.6 | 162.3 |
①: Ca - dynamic load rating;Coa - static load rating;N - Number of threads | ||||||
