Choosing the right linear motion system is critical for machine performance. This guide briefly compares the precision linear guides from Nanjing Process Equipment (NPE) with traditional wheel rails to help you decide quickly.
Key Differences at a Glance

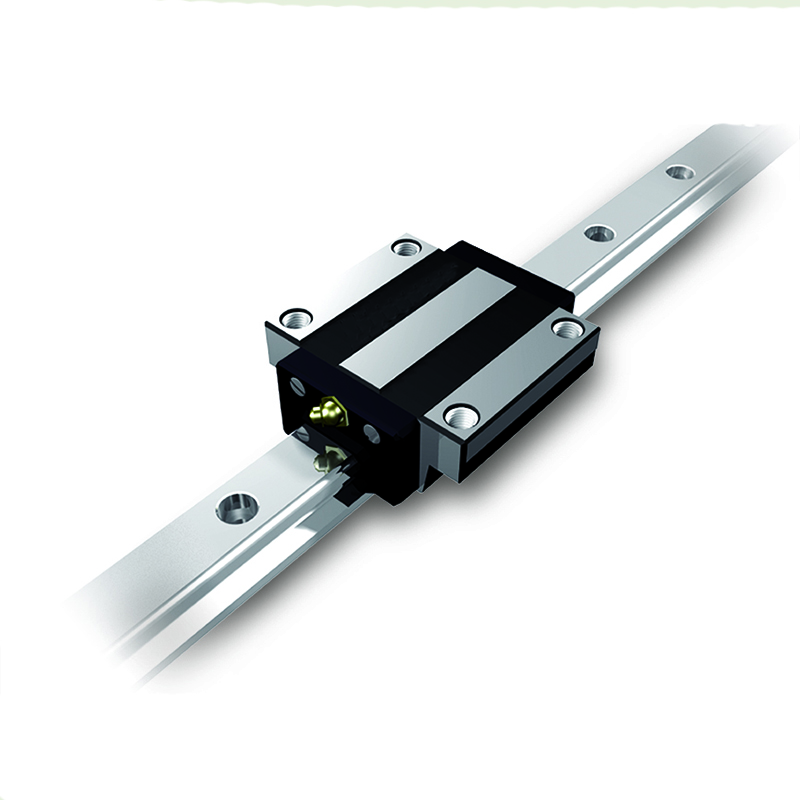

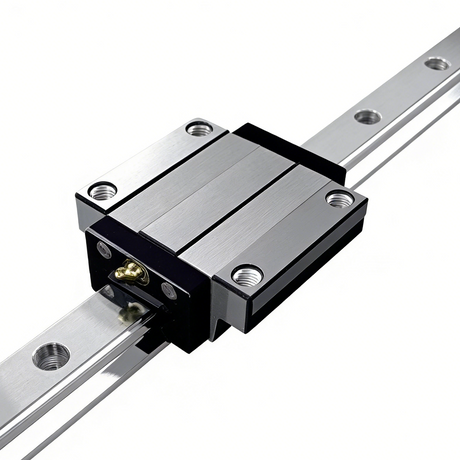

Feature | NPE GGB Ball Linear Guide | NPE GZB Roller Linear Guide | NPE GGY Arc Guide | Wheel Rail System |
Design | Recirculating ball, point contact | Recirculating roller, line contact | Designed for circular motion | V-groove wheels on a rail |
Precision | Very High (Grade 1) | Very High (Grade 1) | High for arc motion | Moderate, potential for wobble |
Rigidity | High | Extremely High | High | Moderate |
Load Capacity | High | Extremely High (192T/slider) | High, zero-clearance design | High, good for torque |
Speed | High (180 m/min) | High | For rotary motion | Very High (up to 10 m/s) |
Durability in Harsh Conditions | Requires clean setting | Requires clean setting | Stainless steel options | Excellent, tolerates debris, dust, moisture |
Maintenance | Low frequency | Low frequency | Low frequency | Higher, needs regular adjustment |
Cost | Medium-High | High | Medium-High (Specialized) | Low-Medium |
How to Choose?
Choose NPE Linear Guides if you need:
High Precision & Rigidity: For CNC machining, measuring equipment, or semiconductor manufacturing.
Maximum Load Capacity: For heavy-duty machine tools and gantry systems (choose GZB Roller Guides).
Precise Circular Motion: For rotary tables, scanners, or stage equipment (choose GGY Arc Guides).
High Speed & Smooth Operation: For electronics assembly and high-speed automation (choose GGB Ball Guides).
Clean Environments: In medical, food processing, or lab equipment.
Choose Wheel Rails if you need:
Durability in Harsh Environments: For woodworking, metal cutting, or dusty/damp conditions.
Easy Installation & Alignment: When mounting surface flatness is a concern or adjustments are needed.
Very High Linear Speeds: For applications exceeding 10 m/s.
Lower Initial Cost: For projects with budget constraints and where moderate precision is acceptable.
Conclusion
NPE's GGB, GZB, and GGY guides offer superior precision, rigidity, and load capacity for demanding applications. Wheel rails excel in harsh environments, offer easier installation, and are cost-effective. Your choice should balance the core needs of precision, load, environment, and budget for your specific application.
